Toyota
›
2006
›
Land Cruiser
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Seat Heater
›
Notes
Seat Heater: Notes

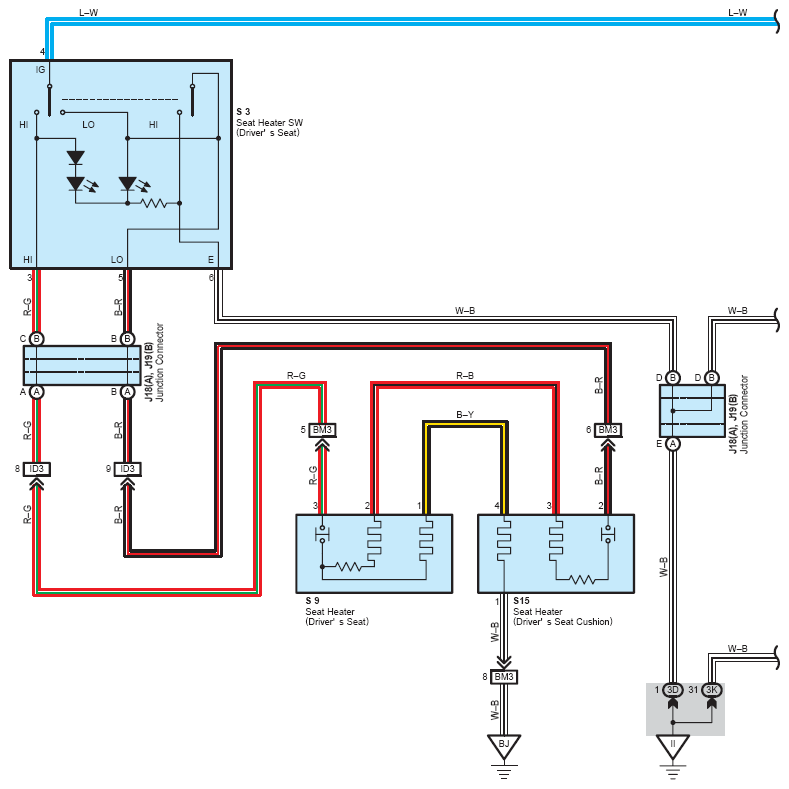

Fig 1: Seat Heater System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

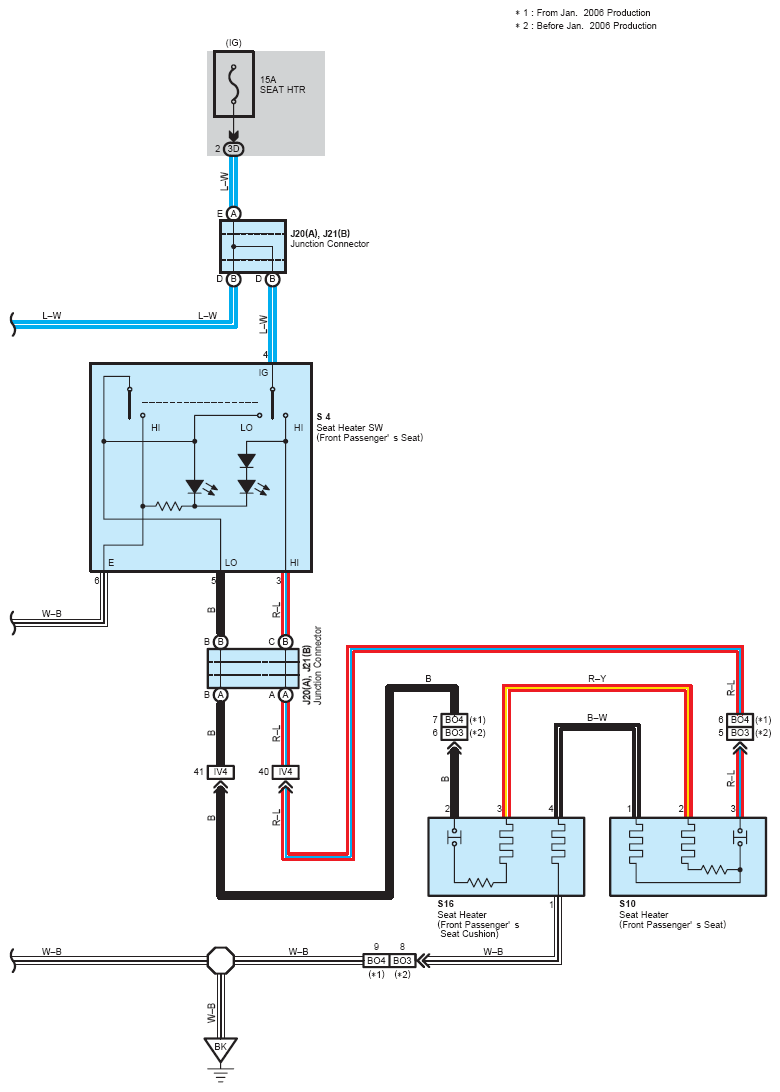

Fig 2: Seat Heater System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
