Trailer Towing: Notes

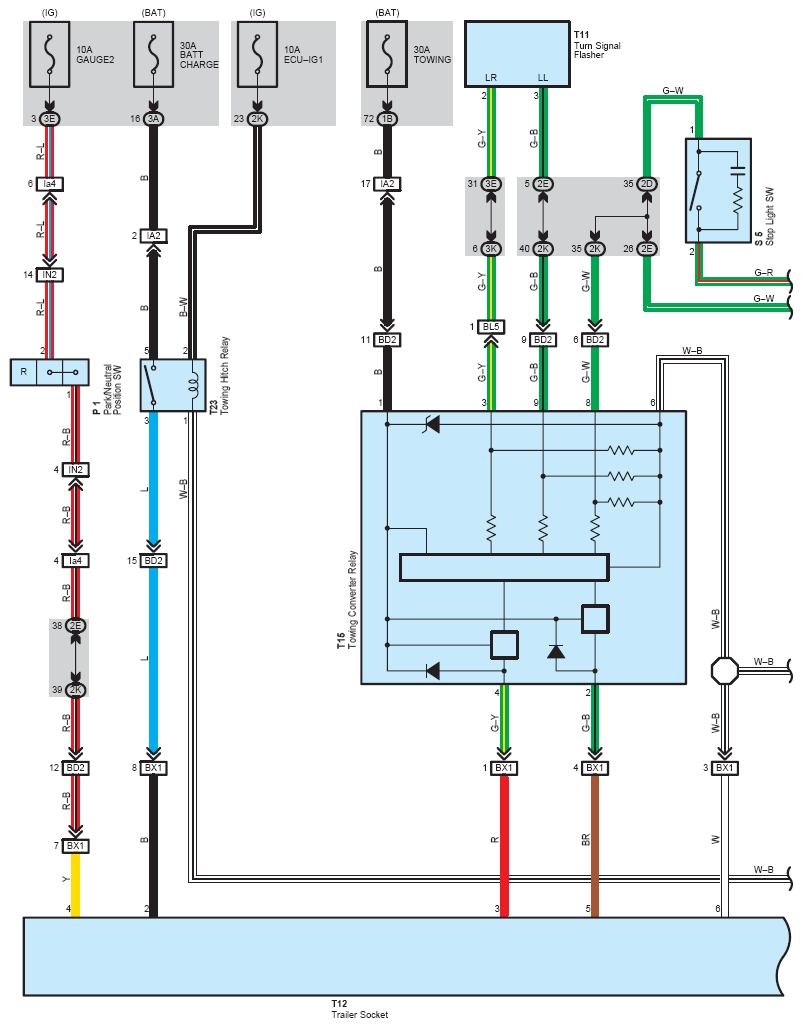

Fig 1: Trailer Towing System Wiring Diagram (1 Of 2)
G08793931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

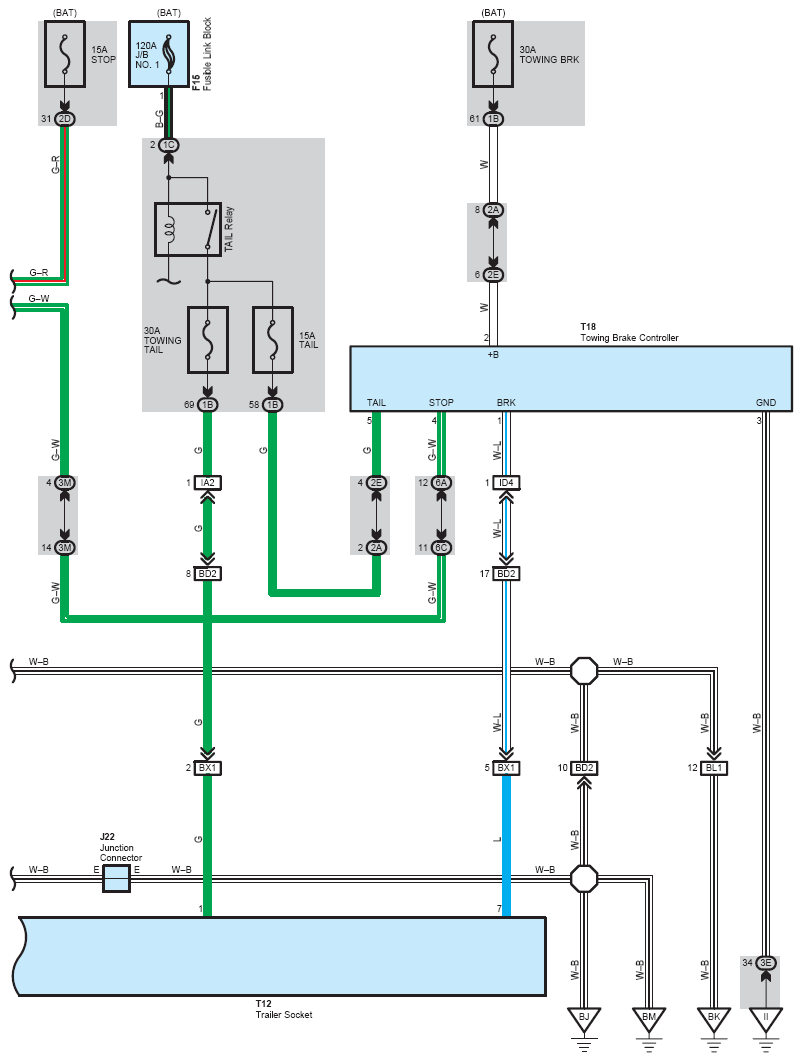

Fig 2: Trailer Towing System Wiring Diagram (2 Of 2)
G08793932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
