System Diagram

(2005/05-2006/01)

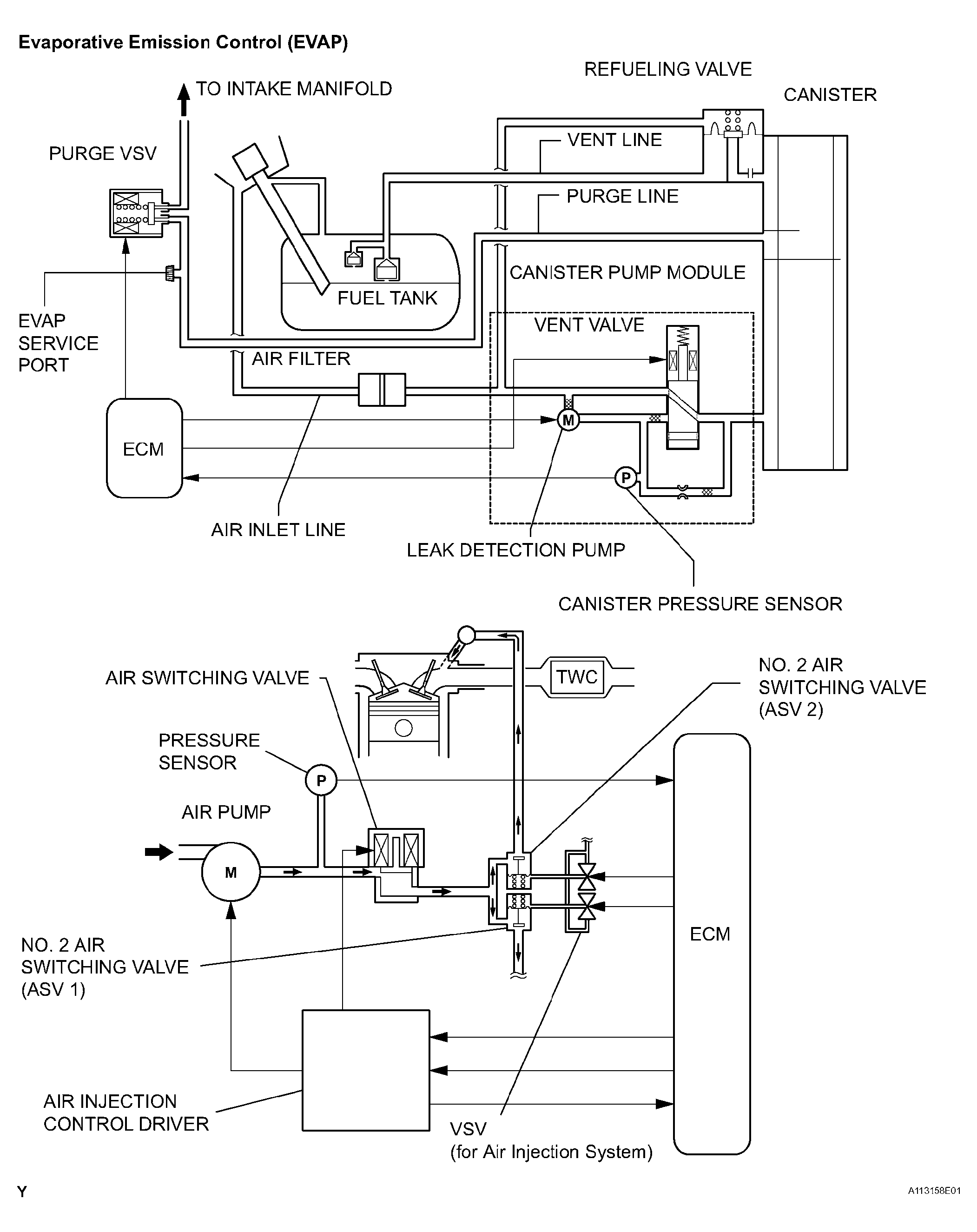

Fig 1: Emission Control System EVAP And Secondary Air Injection System Diagrams (2005/05-2006/01)
G04436077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


(2006/01-)

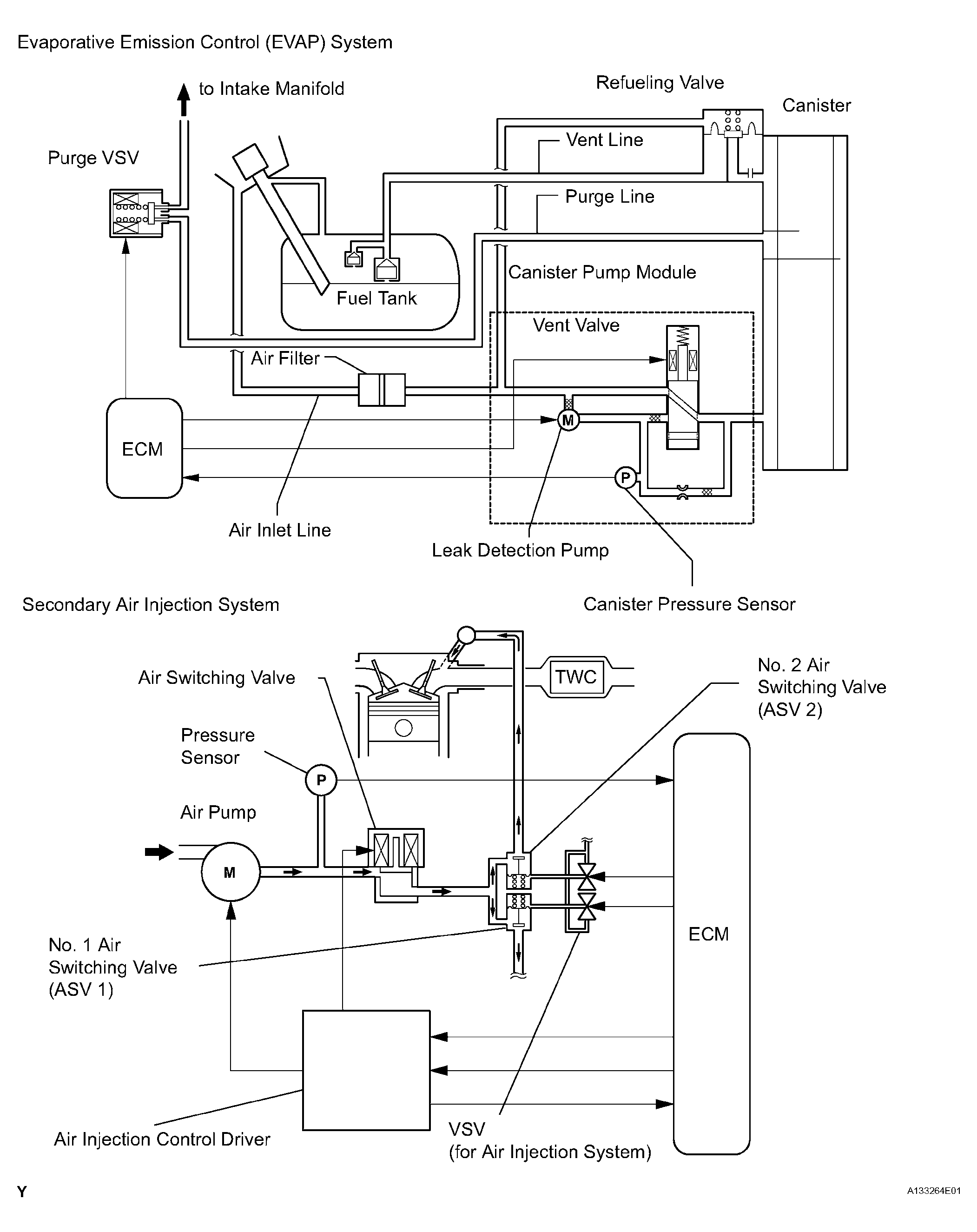

Fig 1: Emission Control System EVAP And Secondary Air Injection System Diagrams (2006/01-)
G04436078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
