Vacuum Switching Valve, Intake Manifold: Components

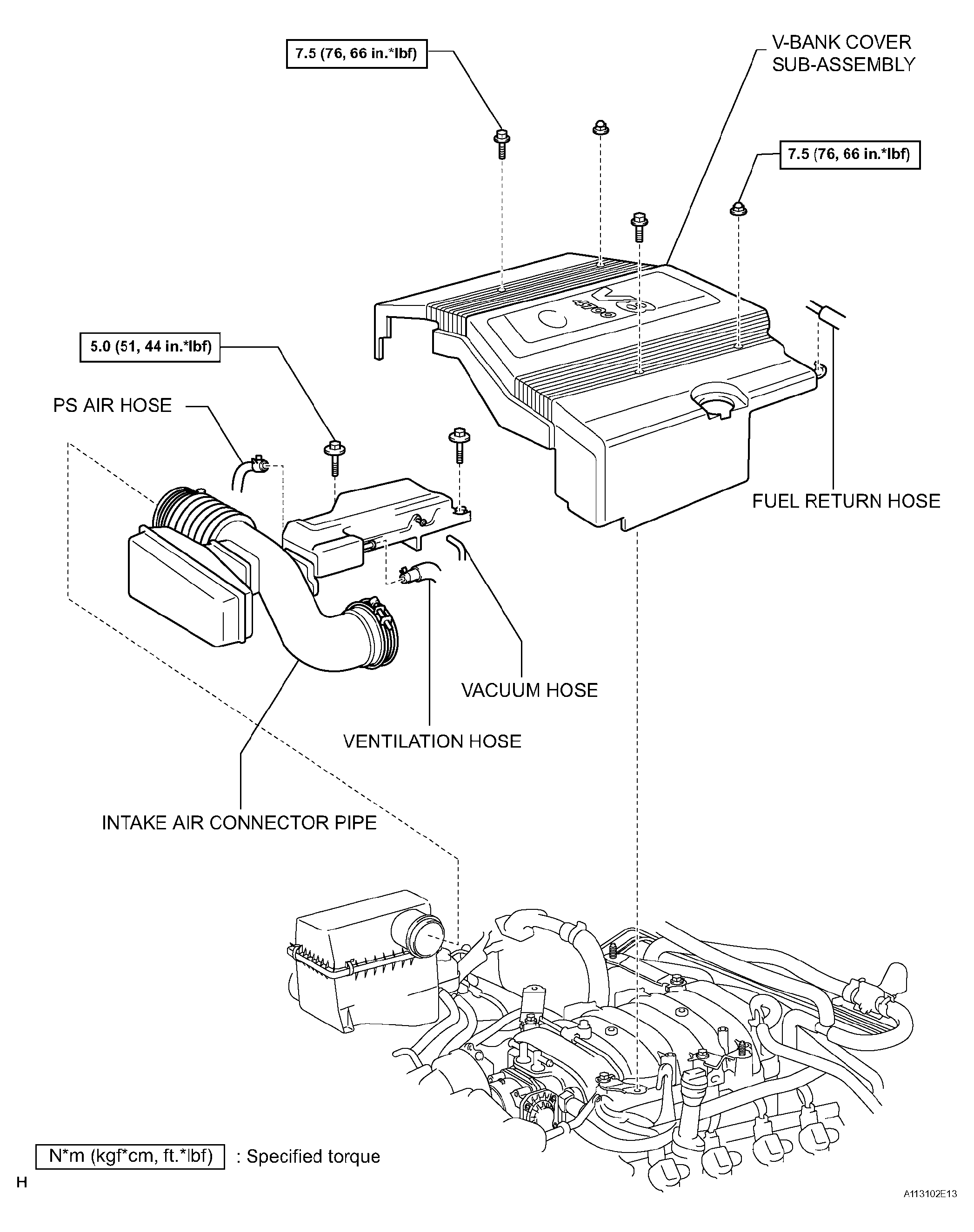

Fig 1: Identifying Vacuum Switching Valve Components & Replacements (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

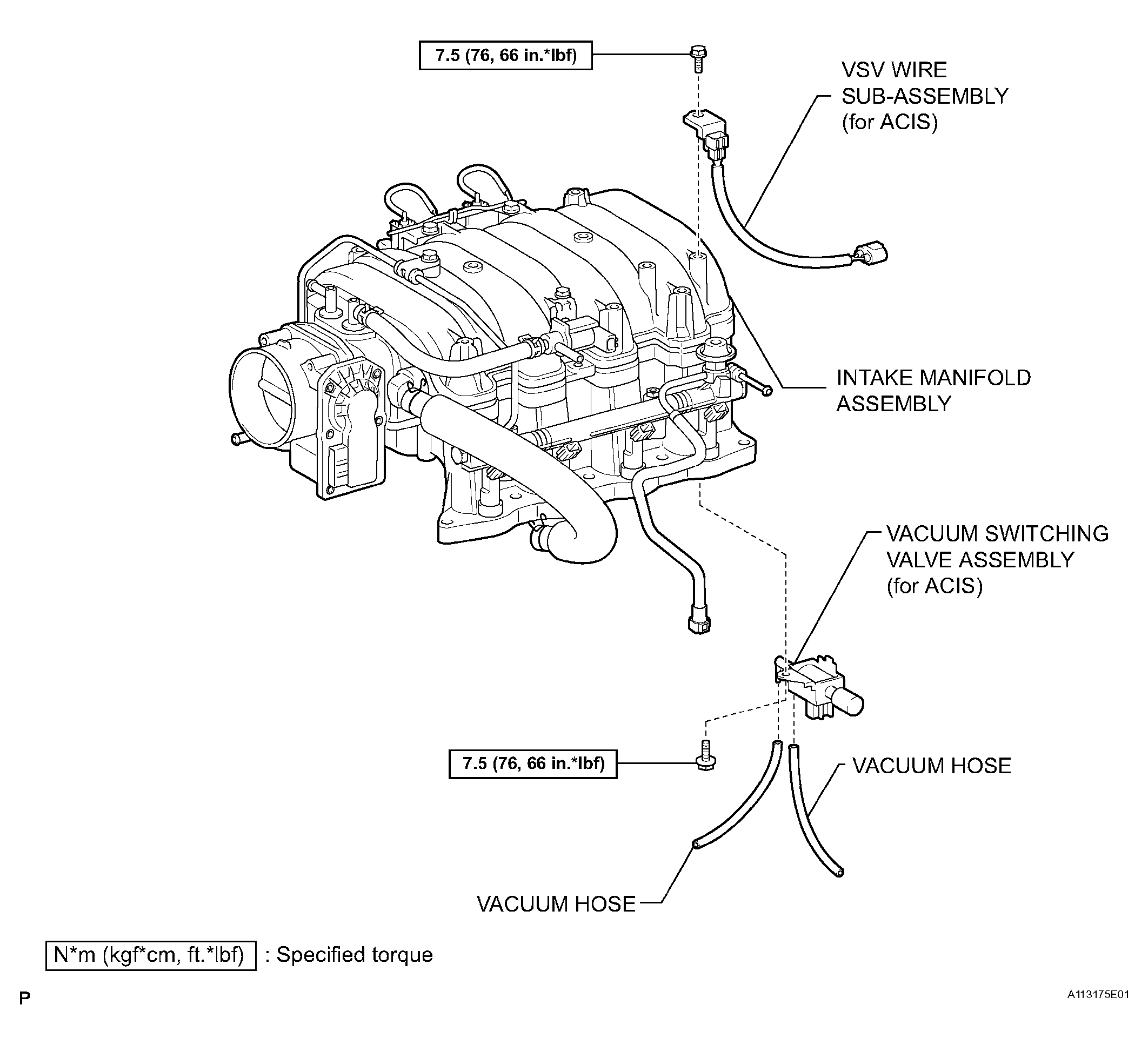

Fig 2: Identifying Vacuum Switching Valve Components & Replacements (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

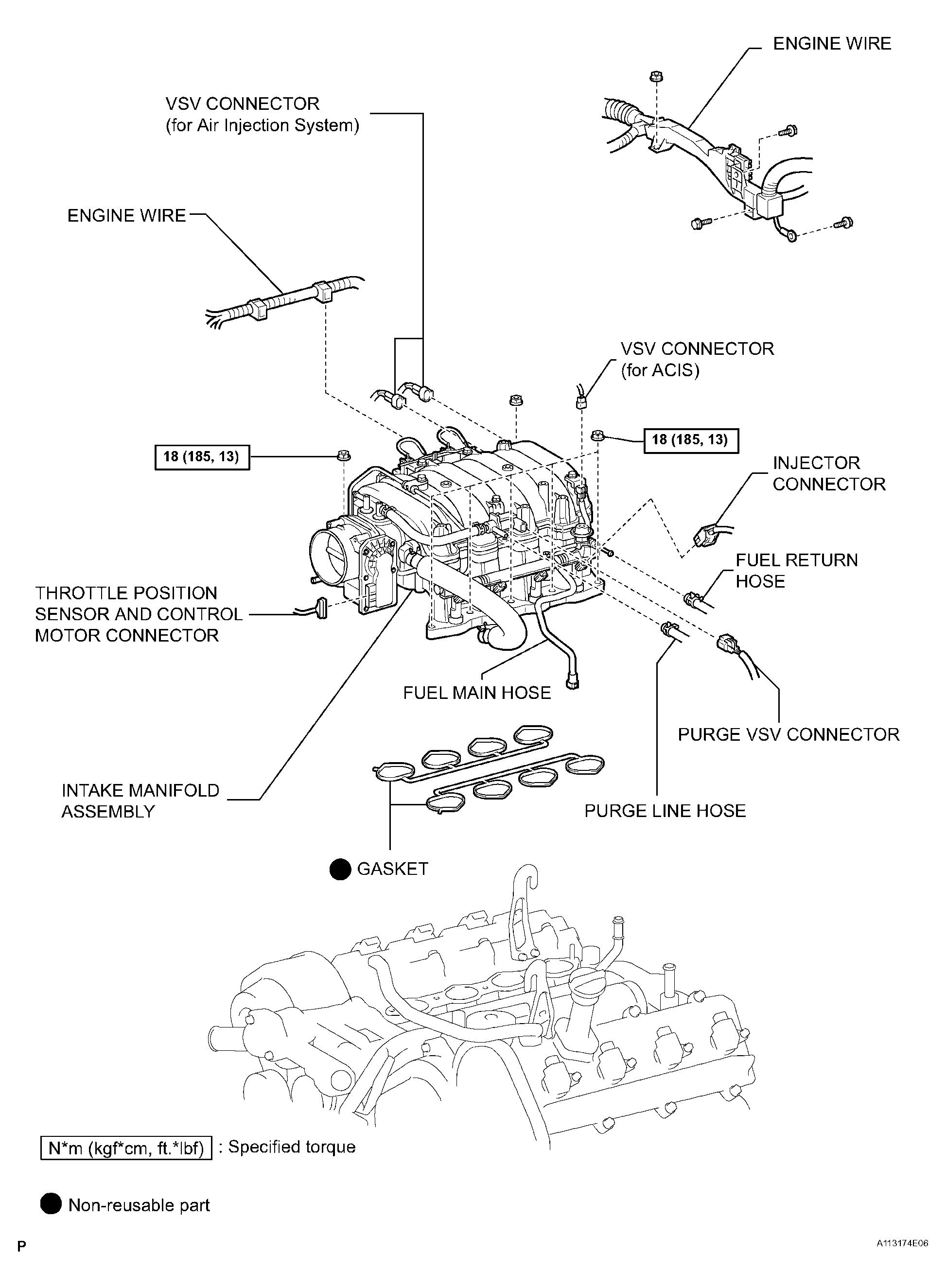

Fig 3: Identifying Vacuum Switching Valve Components & Replacements (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
