Engine Control System - System And Component Testing
›
Cranking Holding Function Circuit
›
Wiring Diagram
Cranking Holding Function Circuit: Wiring Diagram

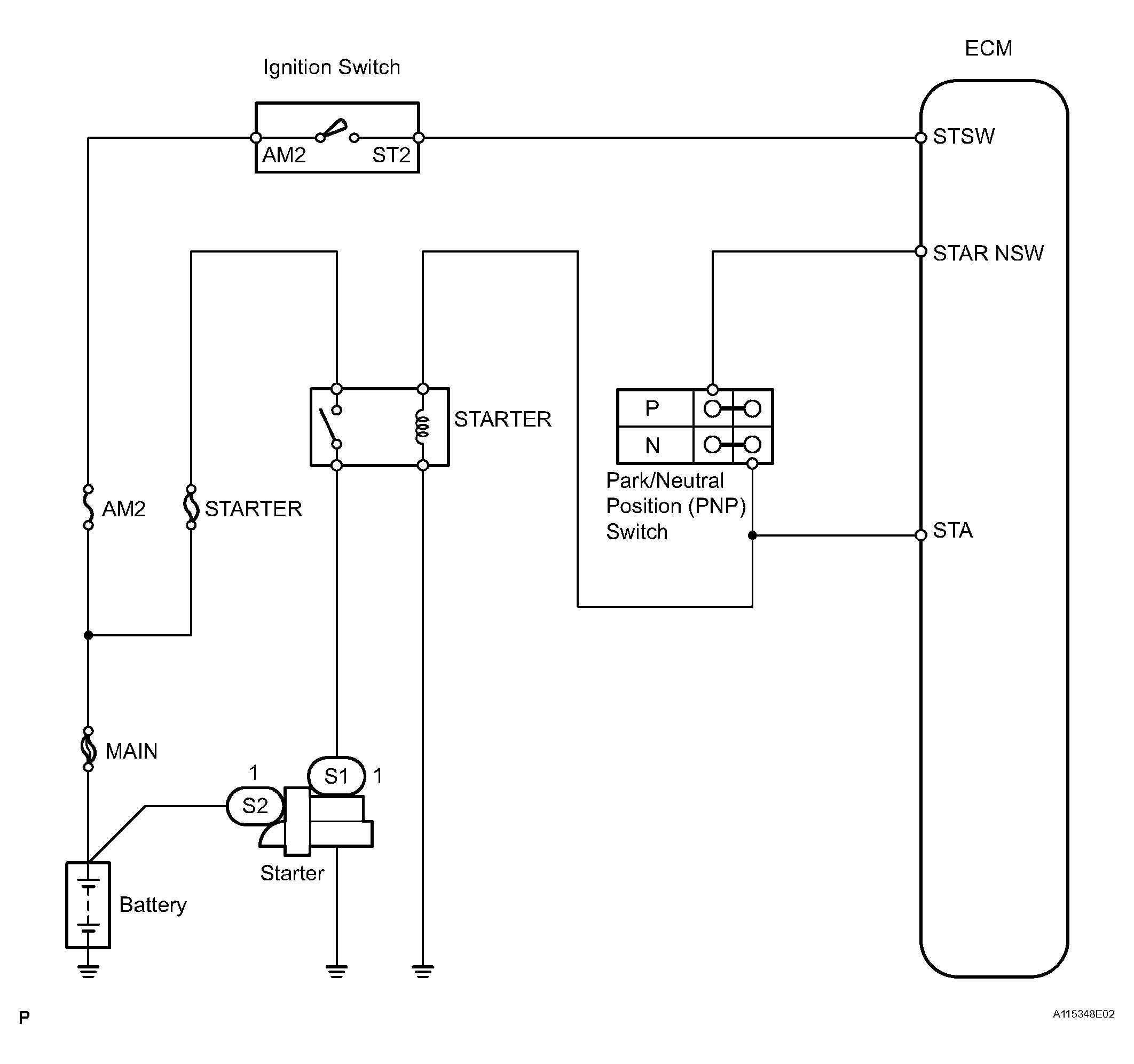

Fig 1: Cranking Holding Function Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
