Crankshaft Position Sensor
›
Components
Crankshaft Position Sensor: Components

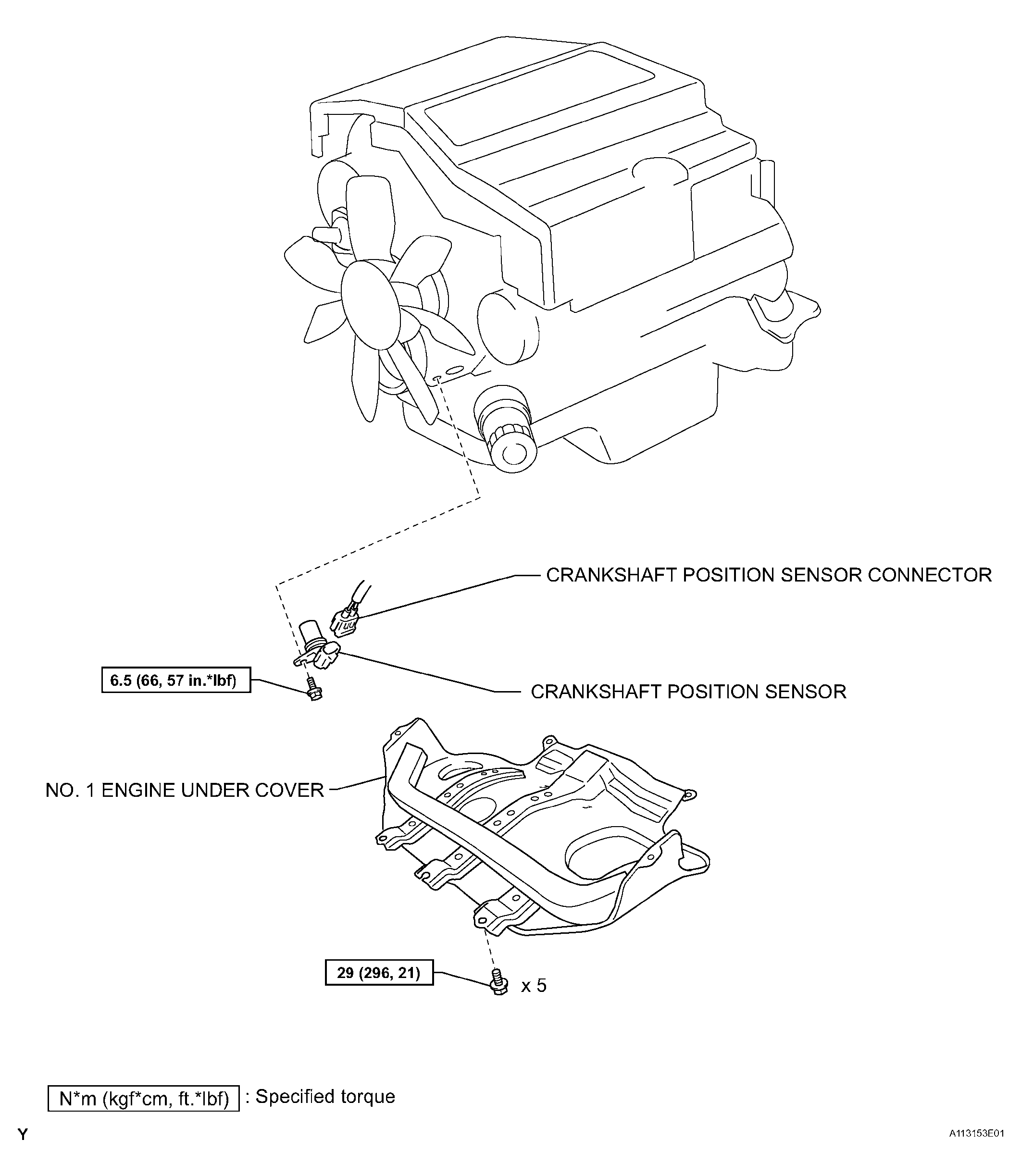

Fig 1: Identifying Crankshaft Position Sensor Components & Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
