Engine Control System - System And Component Testing
›
EVAP System (2005/05-2006/01)
›
Wiring Diagram
EVAP System (2005/05-2006/01): Wiring Diagram

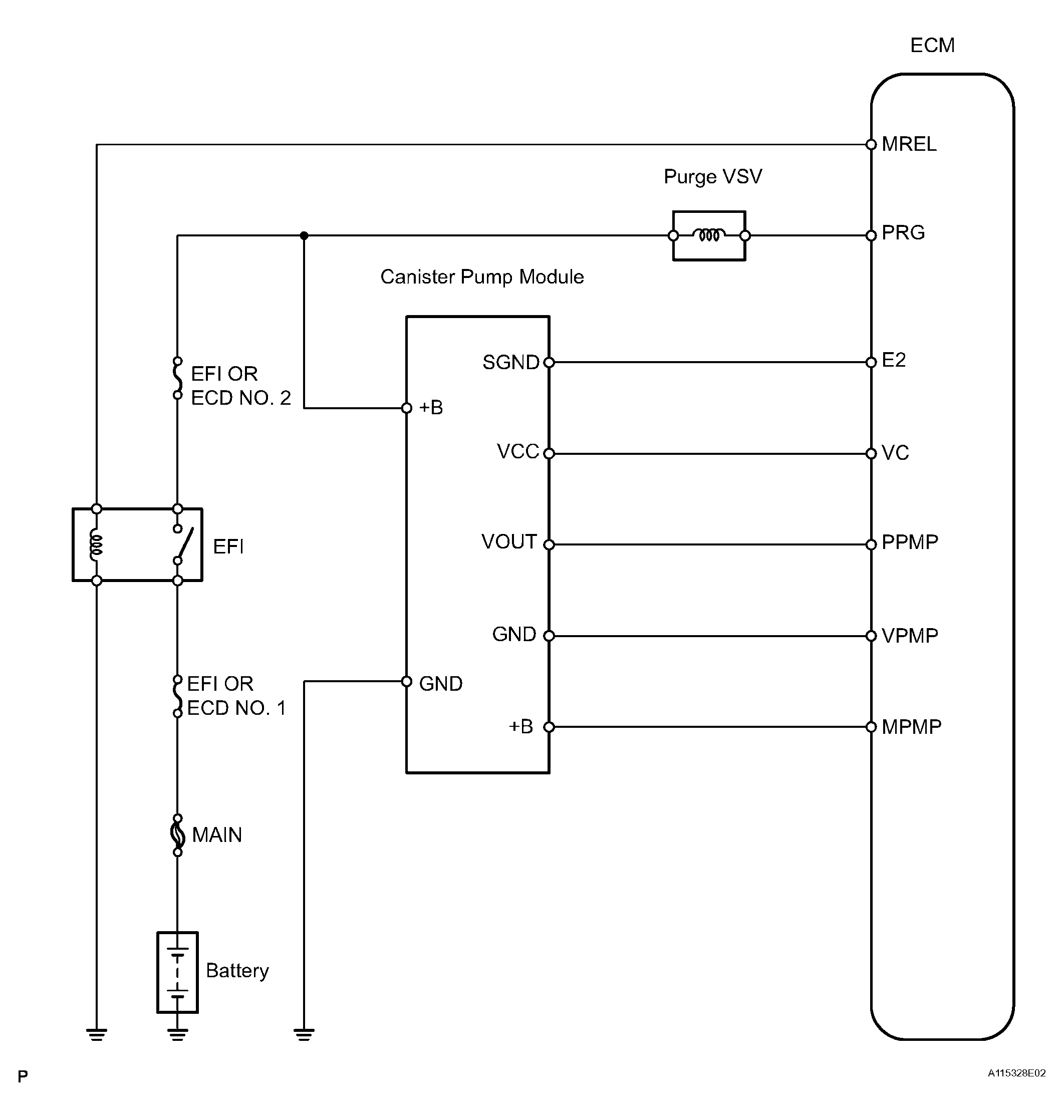

Fig 1: EVAP System - Wiring Diagram
