EVAP System (2006/01-): Wiring Diagram

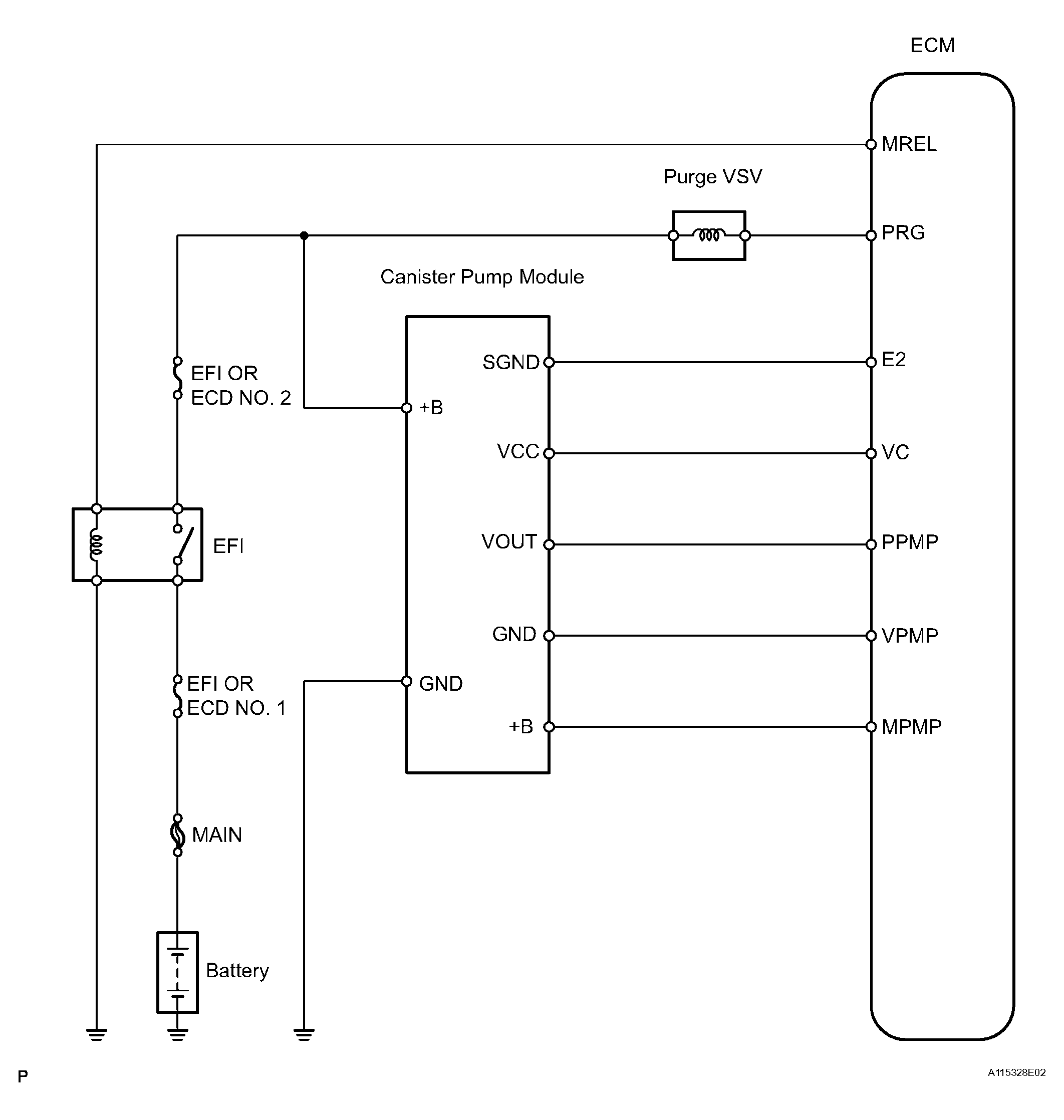

Fig 1: EVAP System Wiring Diagram
G04435449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
