Engine Coolant Temperature Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. DRAIN ENGINE COOLANT (See  COOLANT  )
  3. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL   )
  4. REMOVE INTAKE AIR CONNECTOR PIPE (See  REMOVAL   )
  5. REMOVE THROTTLE BODY (See  REMOVAL   )
  6. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the sensor connector.
    2. Remove the sensor.
    3. Remove the gasket from the sensor.

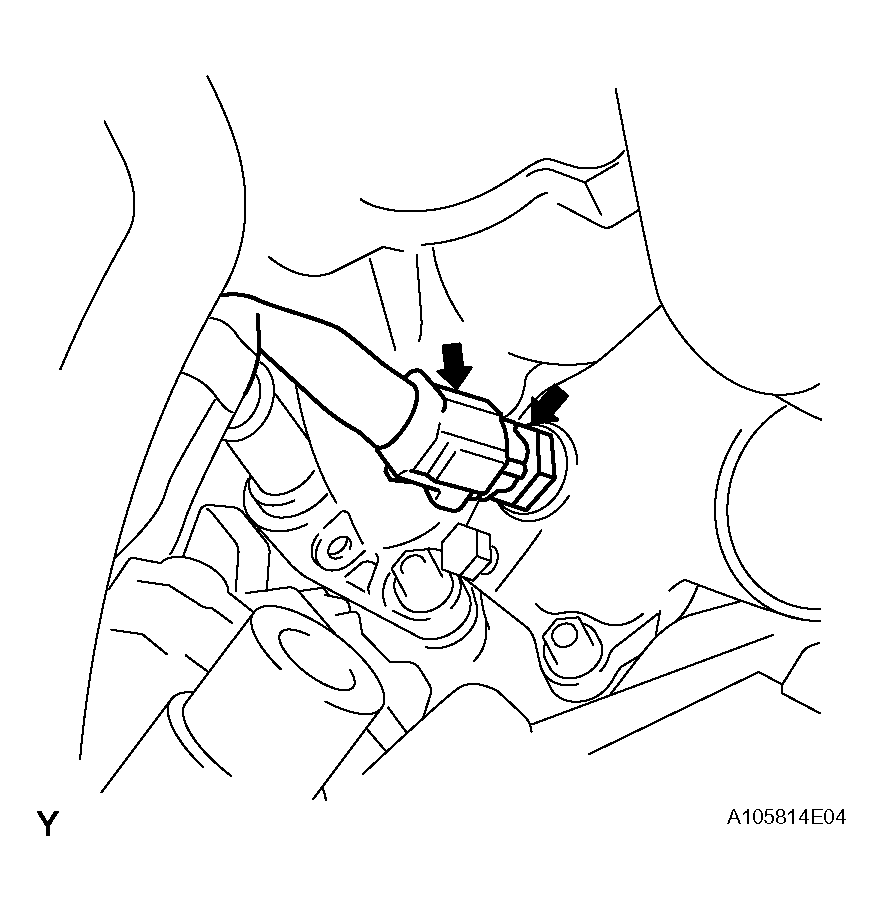

    Fig 1: Removing Engine Coolant Temperature Sensor
    G04435532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
