Engine Control System - System And Component Testing
›
VC Output Circuit
›
Wiring Diagram
VC Output Circuit: Wiring Diagram

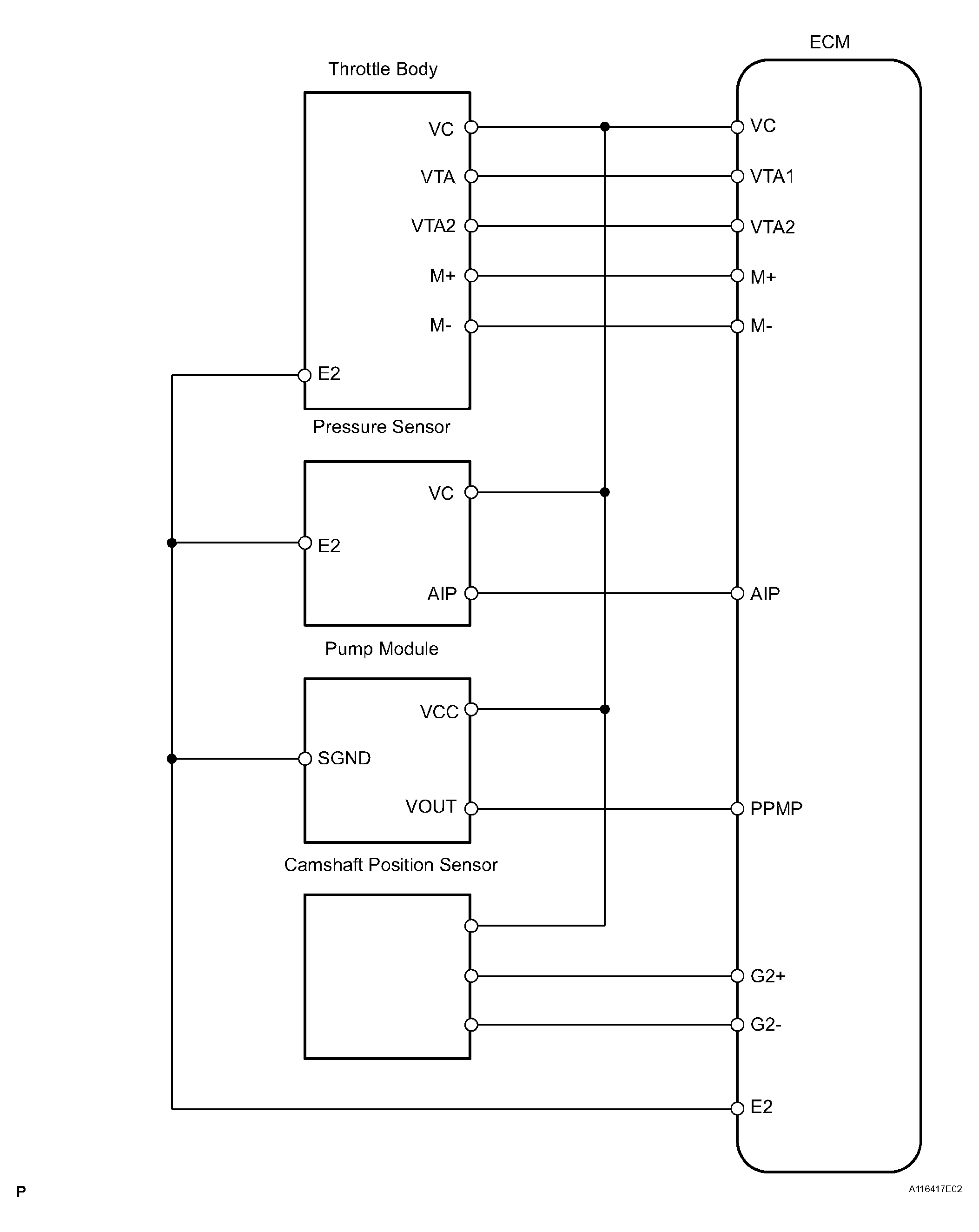

Fig 1: VC Output Circuit Wiring Diagram
