Inspection Procedure
If a DTC is output for the skid control ECU, first troubleshoot it.
HINT:
- When using the intelligent tester start from 1. When not using the intelligent tester, start from 2.
- Before troubleshooting for this DTC, make sure no skid control ECU DTCs are present.
- READ VALUE OF INTELLIGENT TESTER (HEIGHT CONTROL SENSOR)
- Connect the intelligent tester to the DLC3.
- Start the engine and push the intelligent tester main switch ON.
- Select the DATA LIST mode on the intelligent tester.
- Check that the vehicle height value of the height control sensor displayed by the intelligent tester is changing when pushing the UP or DOWN button of the height select switch.
OK:
Vehicle height value must be changing.
NG: Go to step 3
OK: REPLACE SUSPENSION CONTROL ECU
- CHECK SUSPENSION CONTROL ECU
- Remove the suspension control ECU with connectors still connected.
- Turn the ignition switch ON.
- Measure the voltage between terminals SHB and SHG of the suspension control ECU connector.
Standard voltage
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition S21-1 (SHB) - S21-9 (SHG) Approximately 5 V
NG: Go to step 4
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: GO TO NEXT STEP
- CHECK HEIGHT CONTROL SENSOR (RIGHT FRONT, LEFT FRONT AND REAR)
- Disconnect the height control sensor connector.
- Remove the height control sensor.

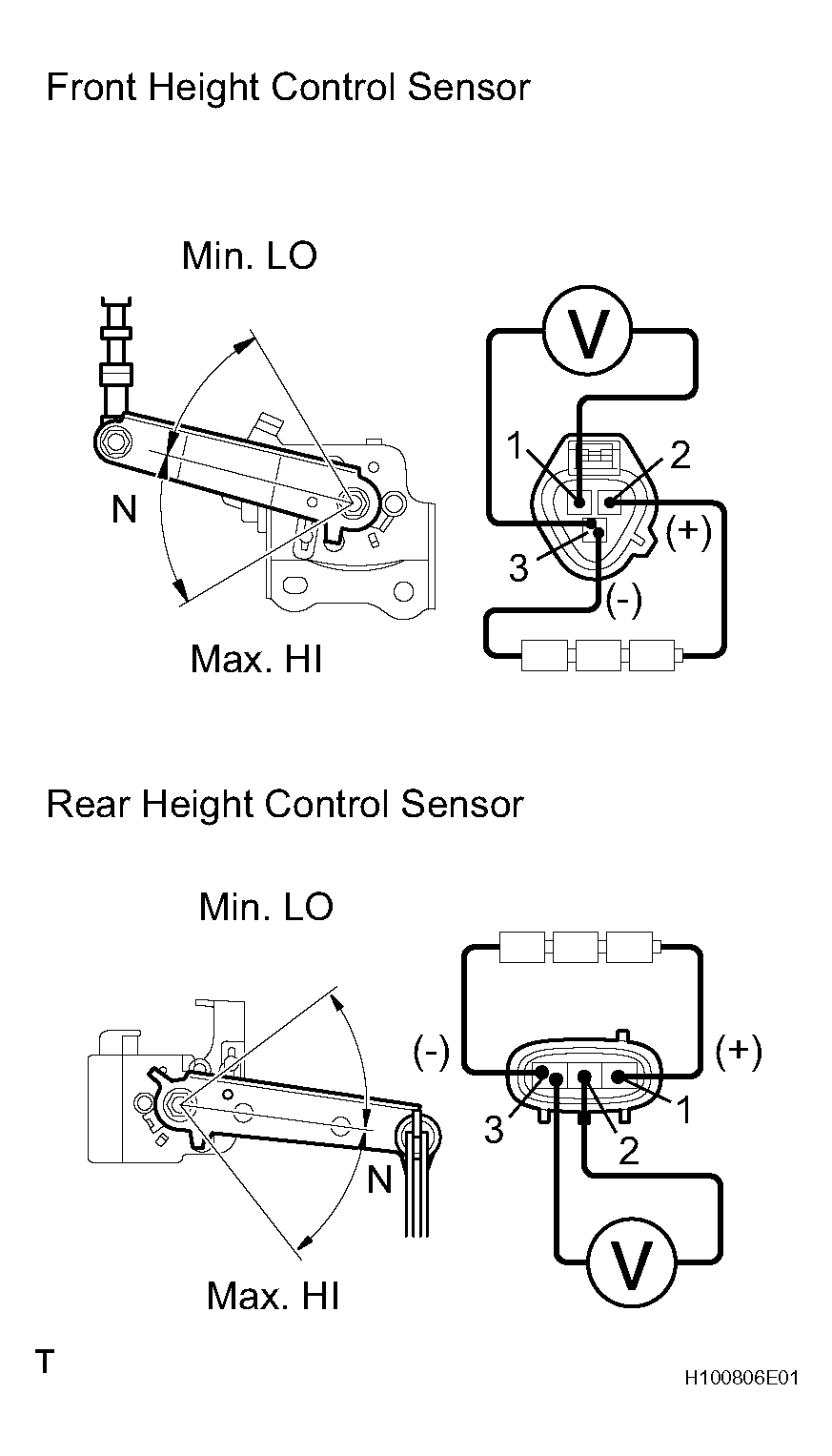

- Connect 3 dry batteries of 1.5 V in series.
- Connect terminal 2 to the batteries' positive (+) terminal, and terminal 3 to the batteries' negative (-) terminal, then apply voltage about 4.5 V between terminals 2 and 3.
- Measure the voltage between terminals 1 and 3 when the height control sensor link is slowly moved up and down.
Standard voltage
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Sensor Link Position Specified Condition 1 - 3 Max. HI Approximately 4.05 V 1 - 3 N Approximately 2.25 V 1 - 3 Min. LO Approximately 0.45 V - Disconnect the height control sensor connector.
- Remove the height control sensor.
- Connect 3 dry batteries of 1.5 V in series.
- Connect terminal 1 to the batteries' positive (+) terminal, and terminal 3 to the batteries' negative (-) terminal, then apply voltage about 4.5 V between terminals 1 and 3.
- Measure the voltage between terminals 2 and 3 when the height control sensor link is slowly moved up and down.
Standard voltage
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Sensor Link Position Specified Condition 2 - 3 Max. HI Approximately 4.05 V 2 - 3 N Approximately 2.25 V 2 - 3 Min. LO Approximately 0.45 V
NG: REPLACE HEIGHT CONTROL SENSOR (RIGHT FRONT, LEFT FRONT AND REAR)
OK: GO TO NEXT STEP
- CHECK WIRE HARNESS (HEIGHT CONTROL SENSOR (RIGHT FRONT, LEFT FRONT AND REAR) - SUSPENSION CONTROL ECU)
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: REPLACE SUSPENSION CONTROL ECU
