Height Control Indicator Light Circuit: Wiring Diagram

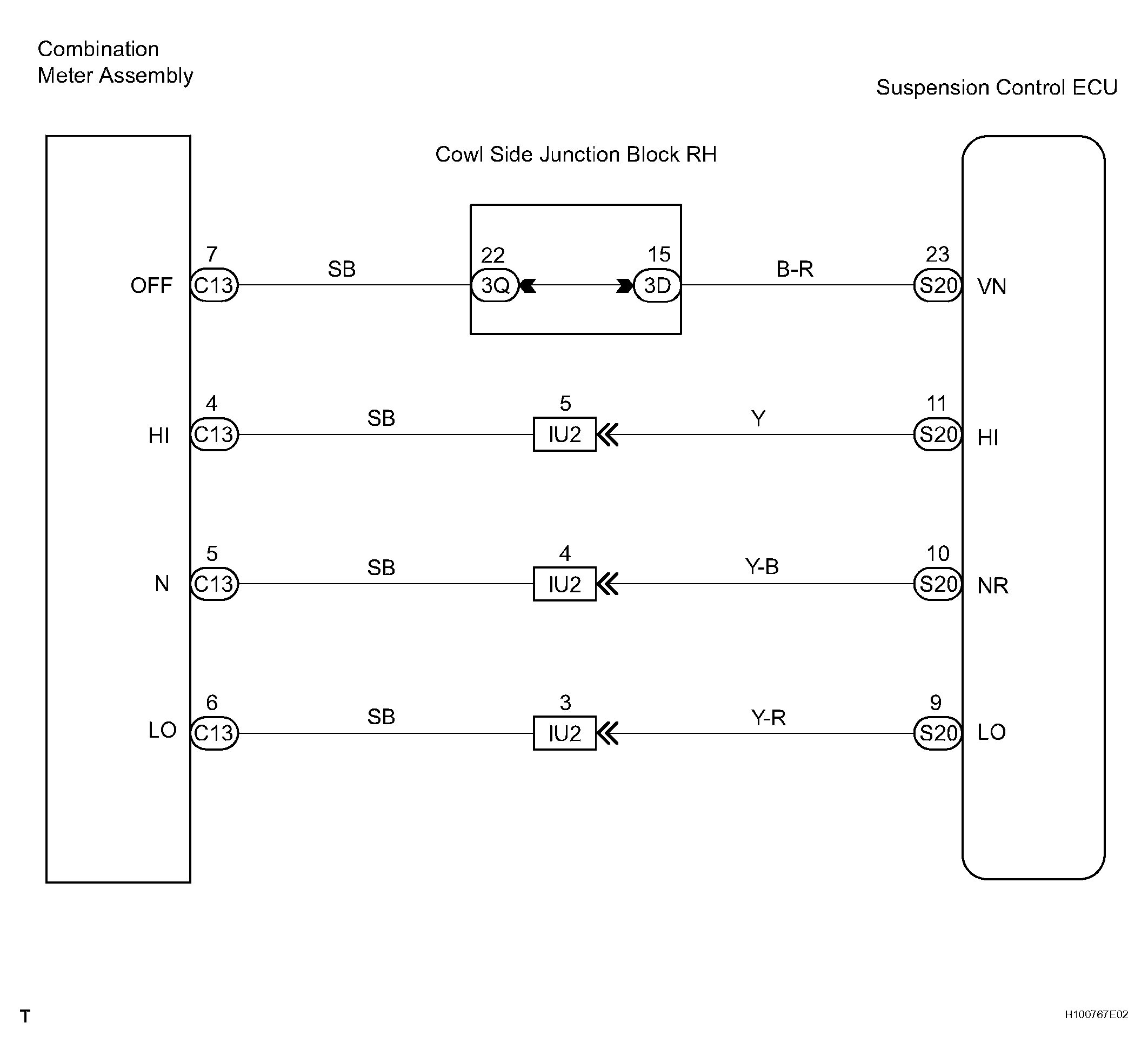

Fig 1: Height Control Indicator Light Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
