Rear Shock Absorber: Components

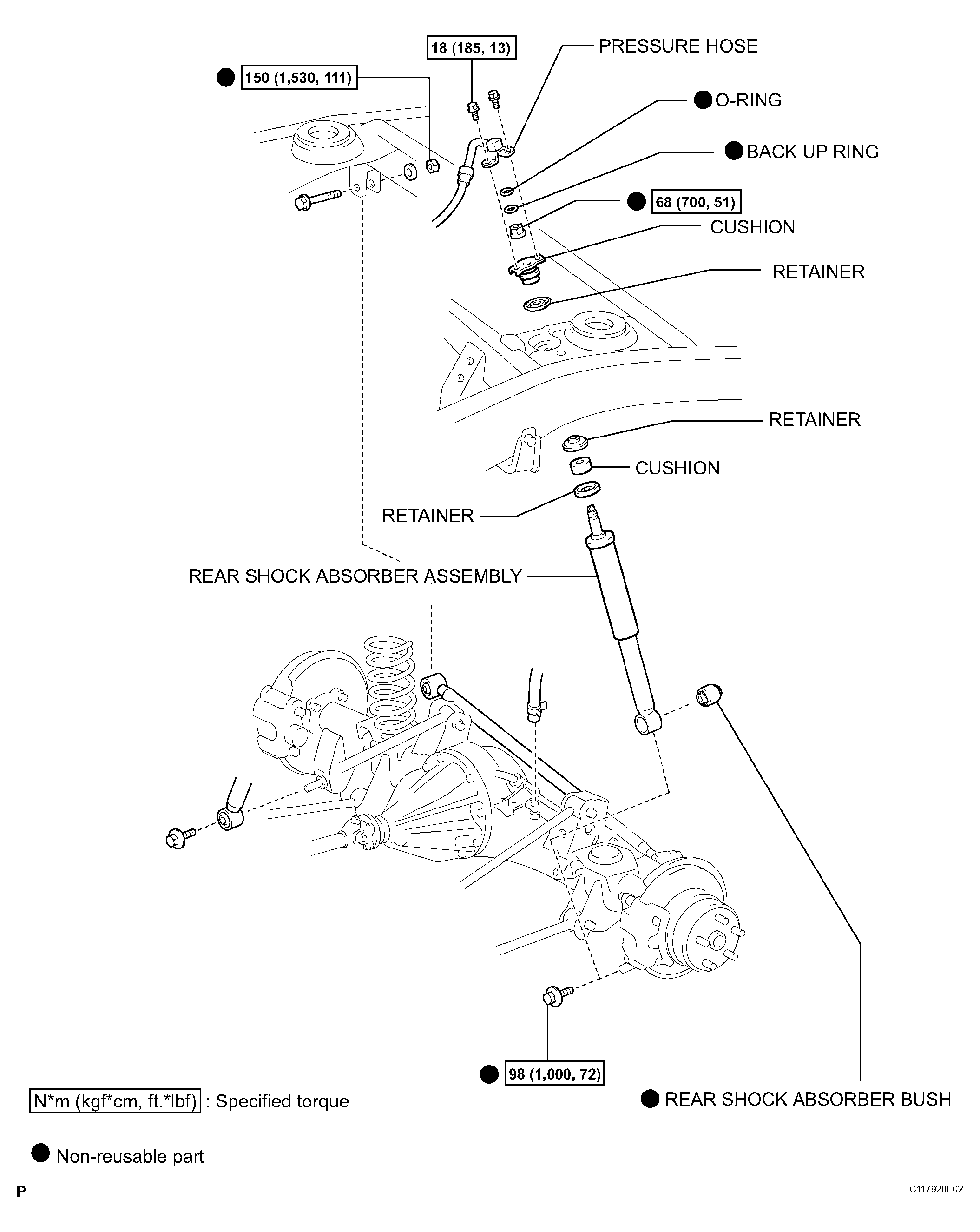

Fig 1: Rear Shock Absorber Replacement Components & Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
