Automatic Transmission Assembly: Installation

  1. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY
    1. Inspect the torque converter clutch assembly (see TORQUE CONVERTER CLUTCH AND DRIVE PLATE  ).
  2. INSTALL TORQUE CONVERTER CLUTCH ASSEMBLY
    1. Install the torque converter clutch to the automatic transmission.
    2. Using a vernier caliper and straightedge, measure the dimension A between the transmission and the end surface of the drive plate.

      Standard dimension: A = 22.28 mm (0.8772 in.)

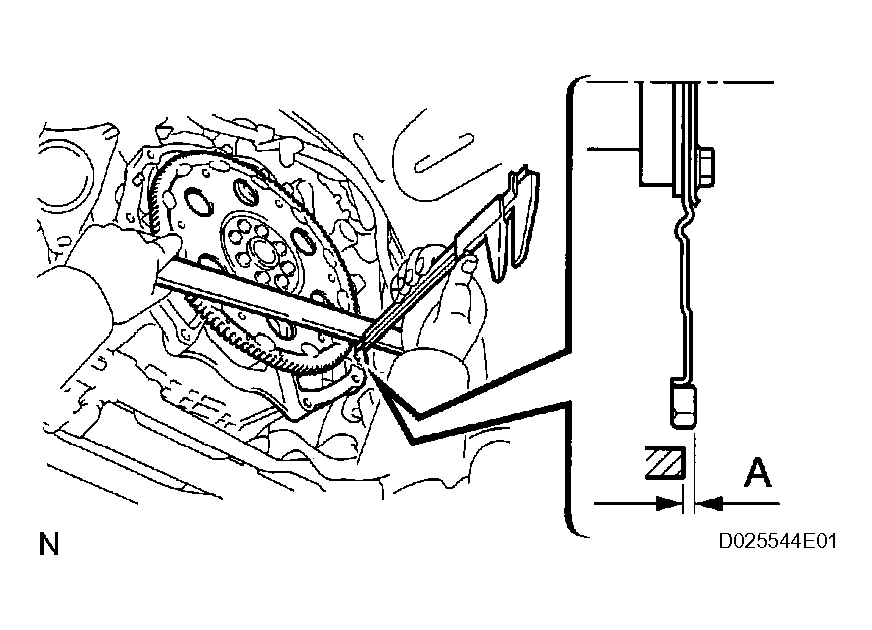

      Fig 1: Measuring Dimension A Between Transmission & End Surface Of Drive Plate
      G04436630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a vernier caliper and a straightedge, measure the distance from the installed surface of the transmission housing to the installed surface of the torque converter clutch.

      Correct distance: More than 17.1 mm (0.673 in.)

  3. INSTALL TRANSFER ASSEMBLY
    1. Install the transfer assembly (see INSTALLATION ).

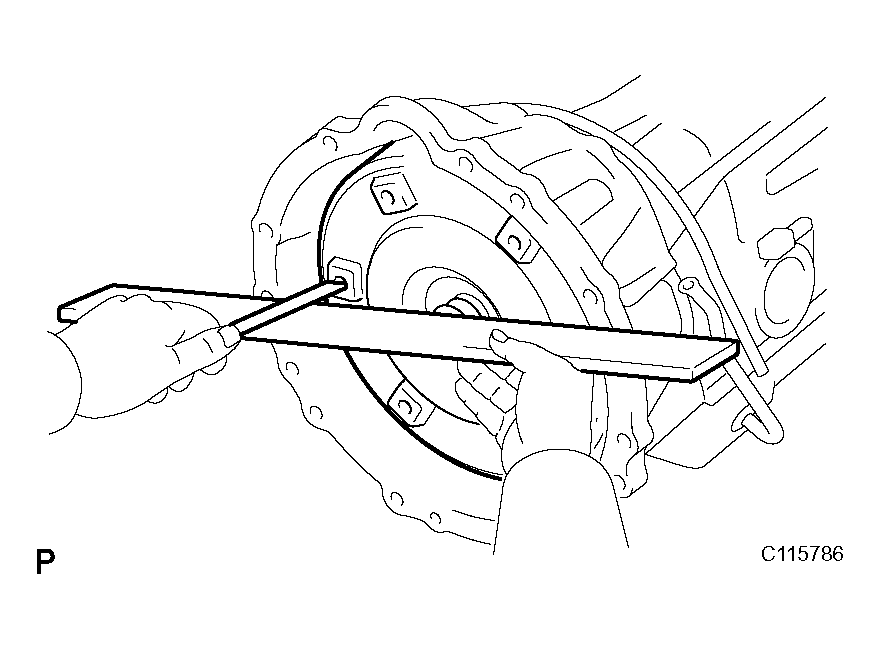

      Fig 2: Measuring Distance From Installed Surface Of Transmission Housing To Installed Surface Of Torque Converter Clutch
      G04436631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL WIRE HARNESS AND HOSE
    1. Connect the 5 hoses and install the wire harness and hose.
    2. Install the 6 connector clamps.
    3. Connect the 5 connectors.
    4. Attach the lock and connect the connector.
    5. Install the 4 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

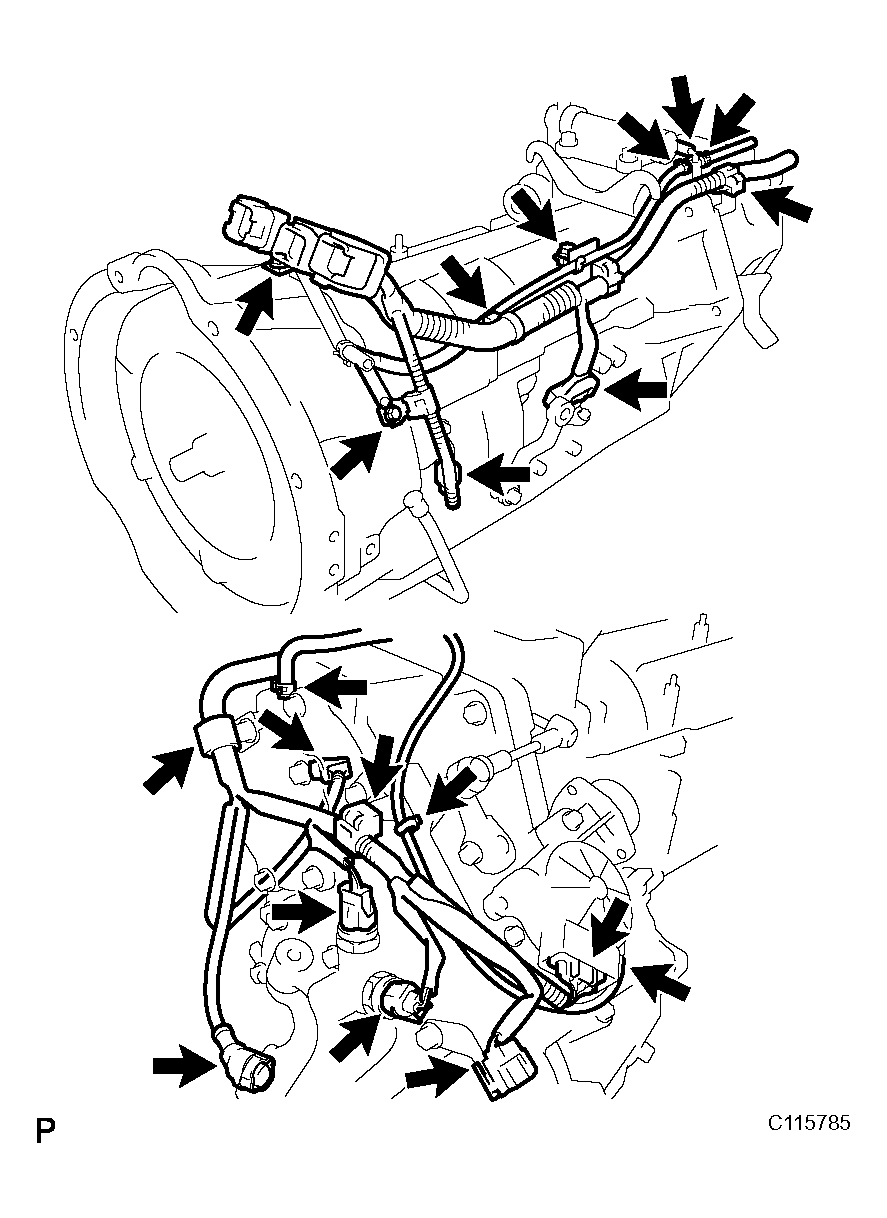

      Fig 3: Installing Wire Harness & Hose
      G04436632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY
    1. Install the transmission unit with the 10 bolts.

      Torque: 71 N*m (724 kgf*cm, 52 ft.*lbf) for bolt A

      37 N*m (377 kgf*cm, 27 ft.*lbf) for bolt B

    2. Install the transmission wire clamp bolt.
      Fig 4: Installing Transmission Unit With Bolts
      G04436633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL ENGINE MOUNTING INSULATOR REAR
    1. Install the mounting insulator with the 4 bolts.

      Torque: 59 N*m (600 kgf*cm, 43 ft.*lbf)

      HINT:

      Install the insulator rear with the inscribing mark facing backward.

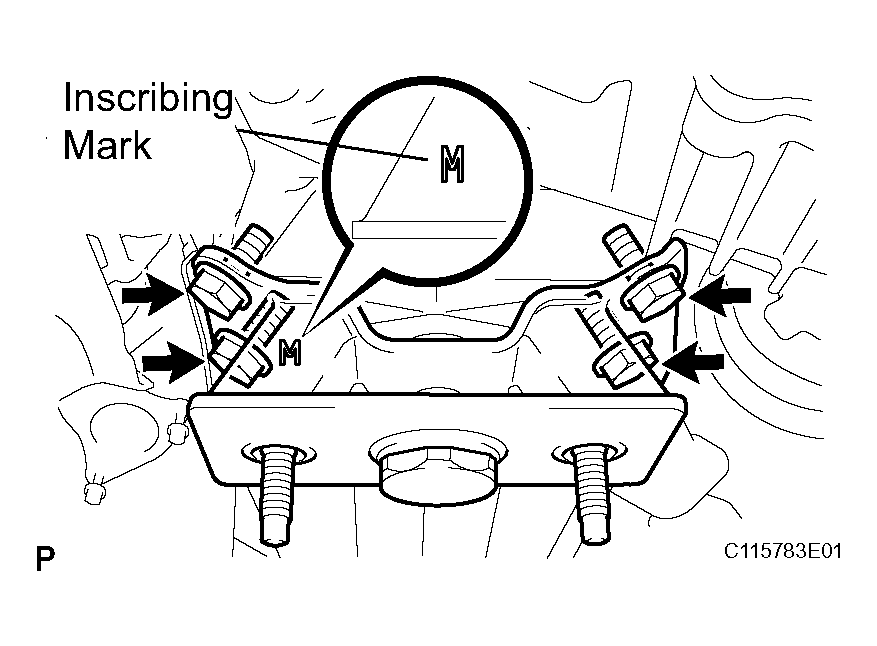

      Fig 5: Installing Mounting Insulator
      G04436634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL CROSSMEMBER AND TRANSFER CASE PROTECTOR
    1. Install the crossmember with the 8 bolts and 2 nuts.

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf) for bolt

      74 N*m (750 kgf*cm, 54 ft.*lbf) for nut

    2. Install the transfer case protector with the 3 bolts.

      Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

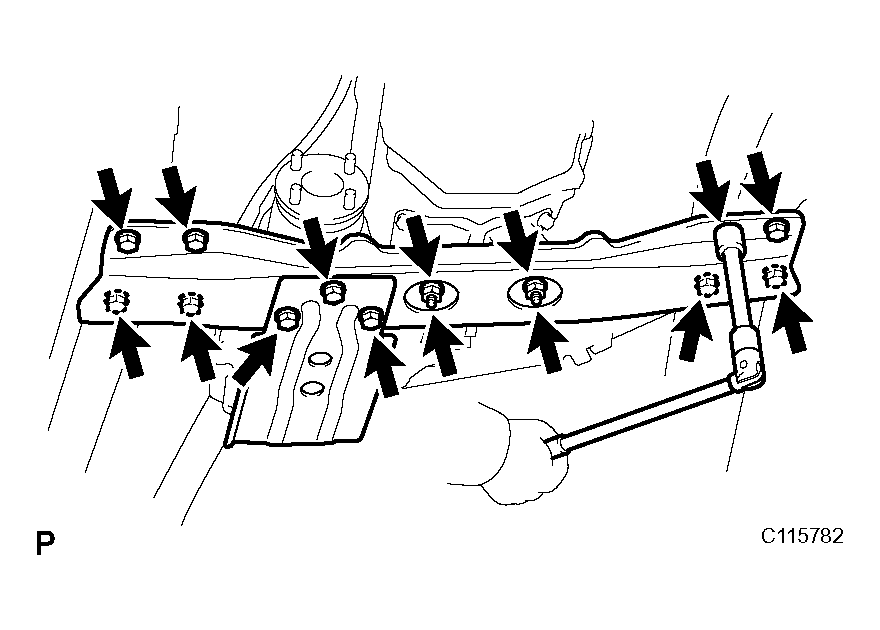

      Fig 6: Installing Crossmember & Transfer Case Protector
      G04436635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. CONNECT GROUND CABLE
    1. Install the ground cable with the bolt.
      Fig 7: Installing Ground Cable With Bolt
      G04436636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. CONNECT OIL COOLER TUBE
    1. Loosely install the tip of the oil cooler tubes to the automatic transmission by hand.
    2. Install the clamp with the bolt.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

    3. Using SST, tighten the tubes.

      SST 09023-12701

      Torque: 34 N*m (346 kgf*cm, 25 ft.*lbf) for use without SST

      31 N*m (316 kgf*cm, 23 ft.*lbf) for use with SST

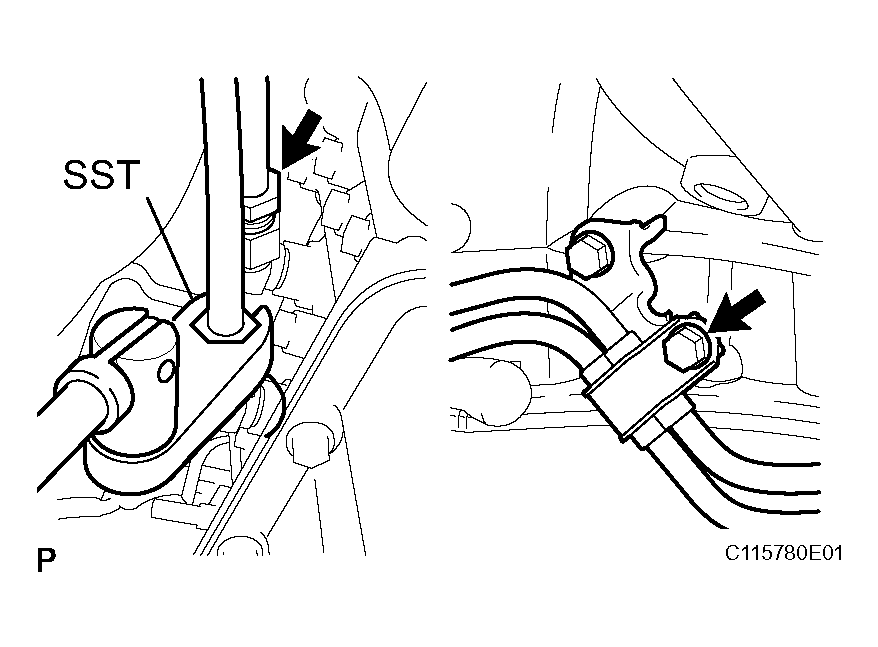

      Fig 8: Connecting Oil Cooler Tube
      G04436637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL DRIVE PLATE AND TORQUE CONVERTER CLUTCH SETTING BOLT
    1. Hold the crankshaft pulley bolt with a wrench and install the 6 torque converter clutch setting bolts.

      Torque: 48 N*m (490 kgf*cm, 35 ft.*lbf)

      HINT:

      First install the green colored bolt.

      Fig 9: Installing Torque Converter Clutch Setting Bolts
      G04436638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the hole plug with the bolt.

      Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)

      Fig 10: Installing Hole Plug
      G04436639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. CONNECT WIRE HARNESS
    1. Connect the transmission wire and install the 3 clamps to the transmission unit.
    2. Connect the 3 connectors.

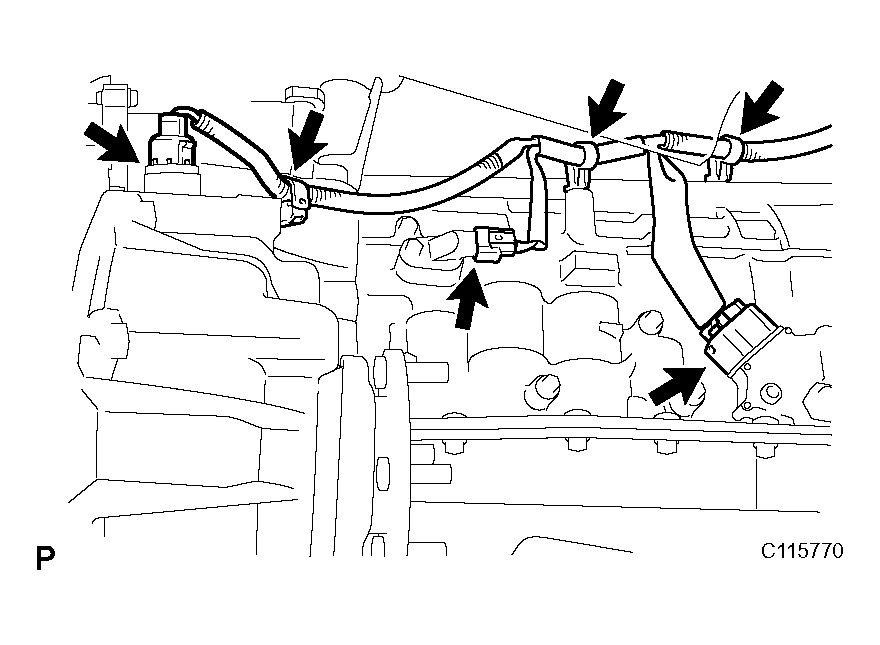

      Fig 11: Connecting Wire Harness
      G04436640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. CONNECT FLOOR SHIFT TRANSMISSION CONTROL ROD
    1. Connect the shift control rod and install the pin and clip.
      Fig 12: Connecting Floor Shift Transmission Control Rod
      G04436641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. CONNECT TRANSFER SHIFT LEVER
    1. Connect the transfer shift lever rod assembly with the nut.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  14. INSTALL REAR PROPELLER SHAFT ASSEMBLY (See  INSTALLATION  )
  15. INSTALL FRONT PROPELLER SHAFT ASSEMBLY (See  INSTALLATION  )
    Fig 13: Connecting Transfer Shift Lever
    G04436642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL FRONT EXHAUST PIPE
    1. Install the front exhaust pipe RH and LH (see INSTALLATION ).
  17. INSTALL TRANSFER SHIFT LEVER BOOT
    1. Install the transfer shift lever boot with the 4 bolts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    2. Install the upper console panel (see REASSEMBLY ).
    3. Install the transfer shift lever knob.
  18. INSTALL DRIVE BELT, FAN AND FLUID COUPLING ASSEMBLY, FAN SHROUD AND RADIATOR RESERVOIR
    1. Install the drive belt, fan and fluid coupling assembly, fan shroud and radiator reservoir (see INSPECTION ).

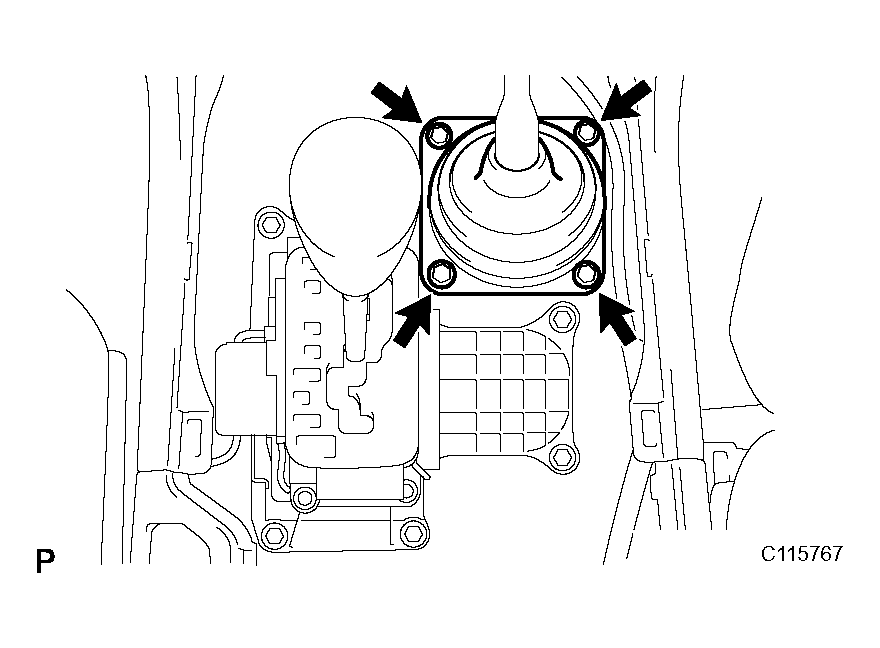

      Fig 14: Installing Transfer Shift Lever Boot
      G04436643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL AIR CLEANER CAP SUB-ASSEMBLY
  20. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  21. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  22. CHECK FOR EXHAUST GAS LEAKS
  23. INSPECT AUTOMATIC TRANSMISSION FLUID
    1. See AUTOMATIC TRANSMISSION FLUID  .
  24. INSTALL ENGINE UNDER COVER

    Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

    1. Install the No. 1 and No. 2 under covers.
