Automatic Transmission Unit: Components

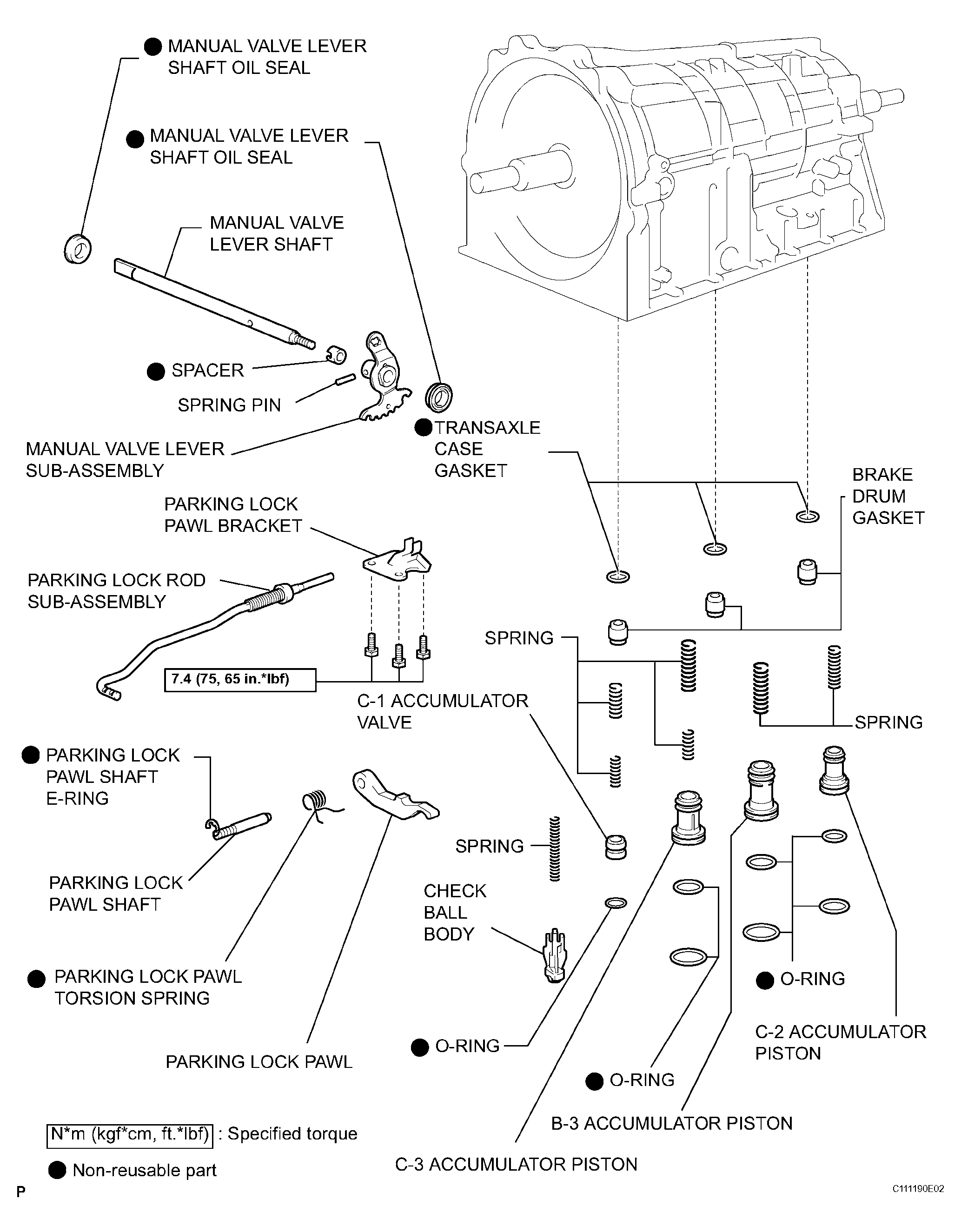

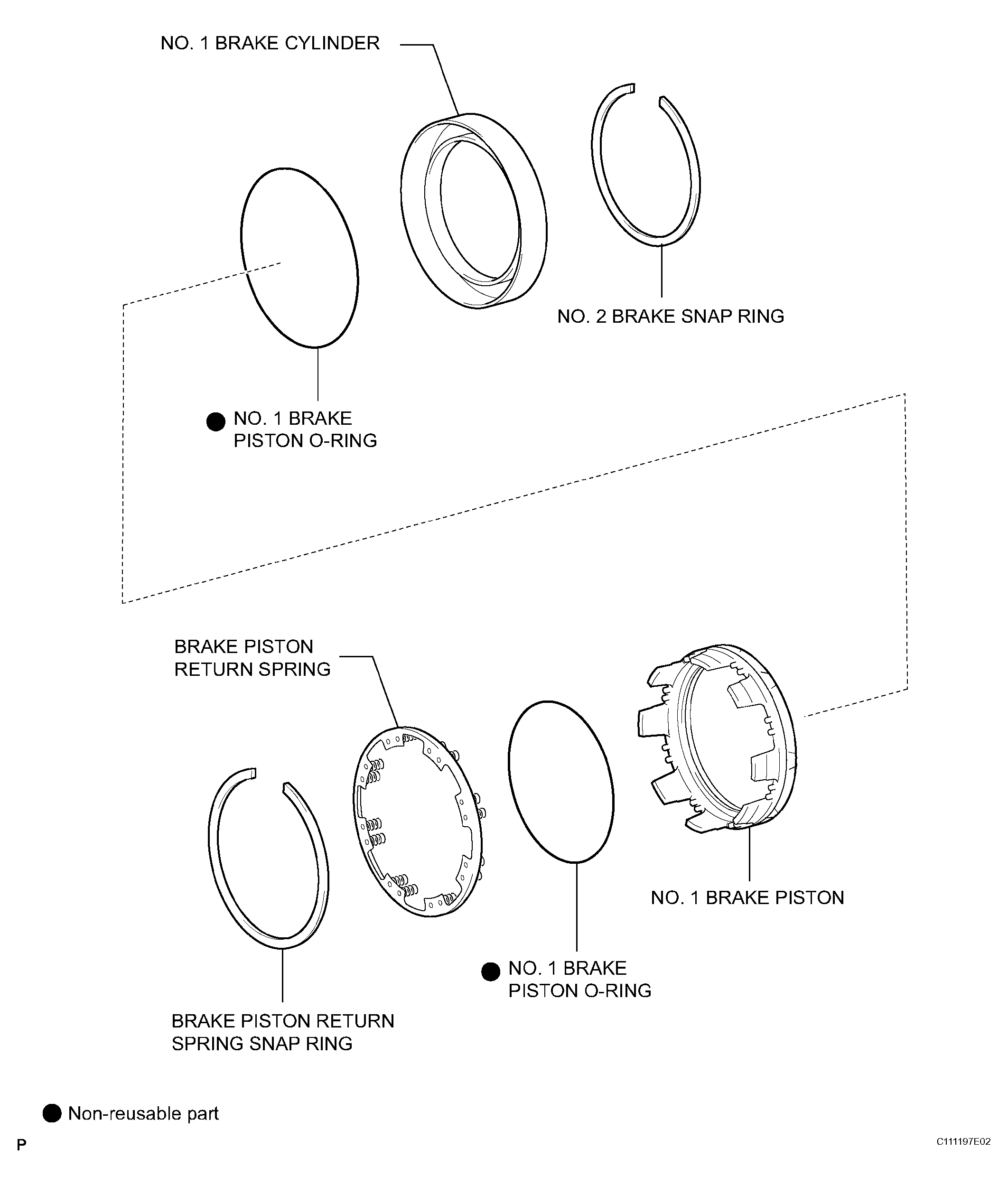

Fig 1: Identifying Automatic Transmission Unit Components (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

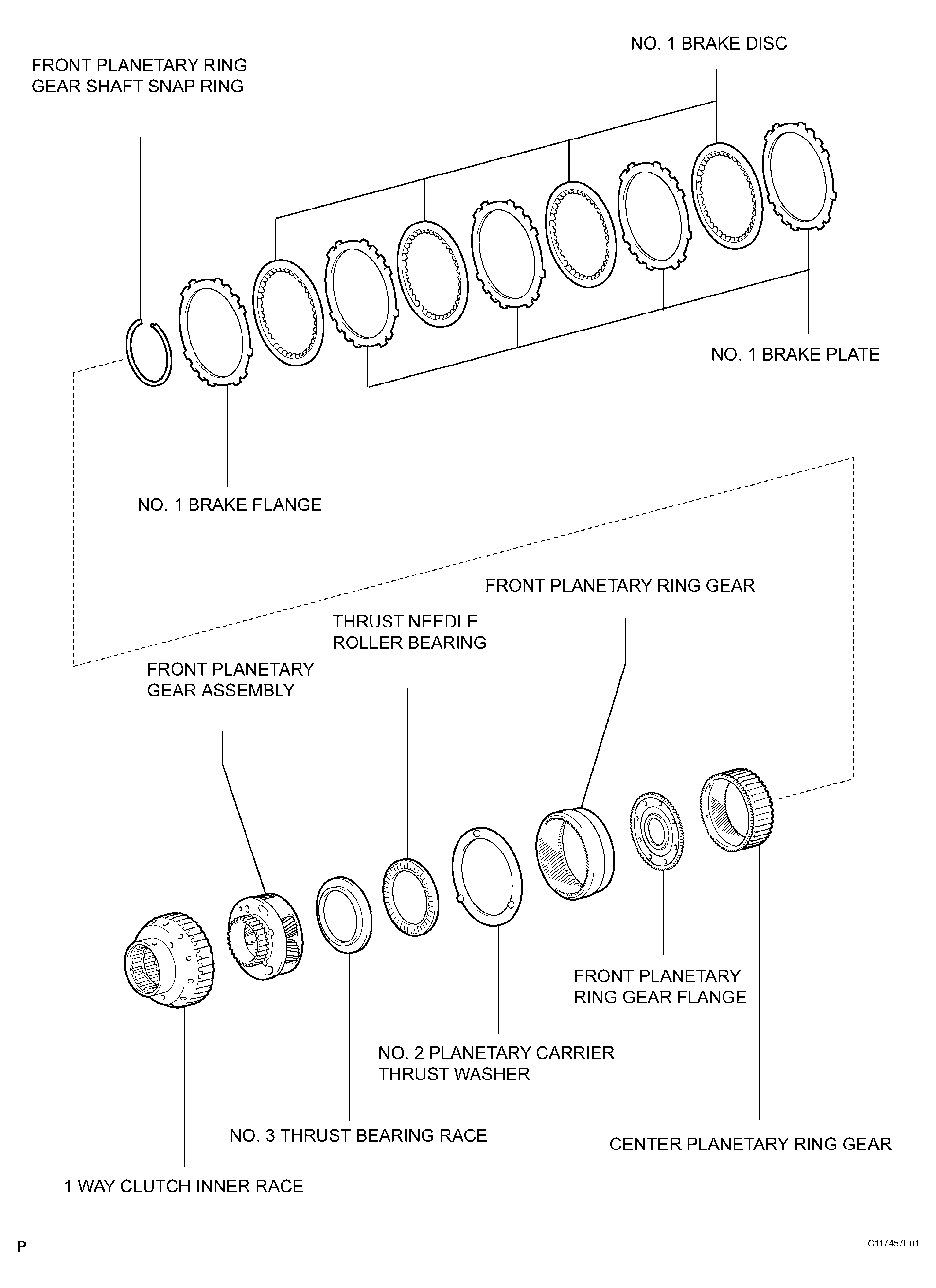

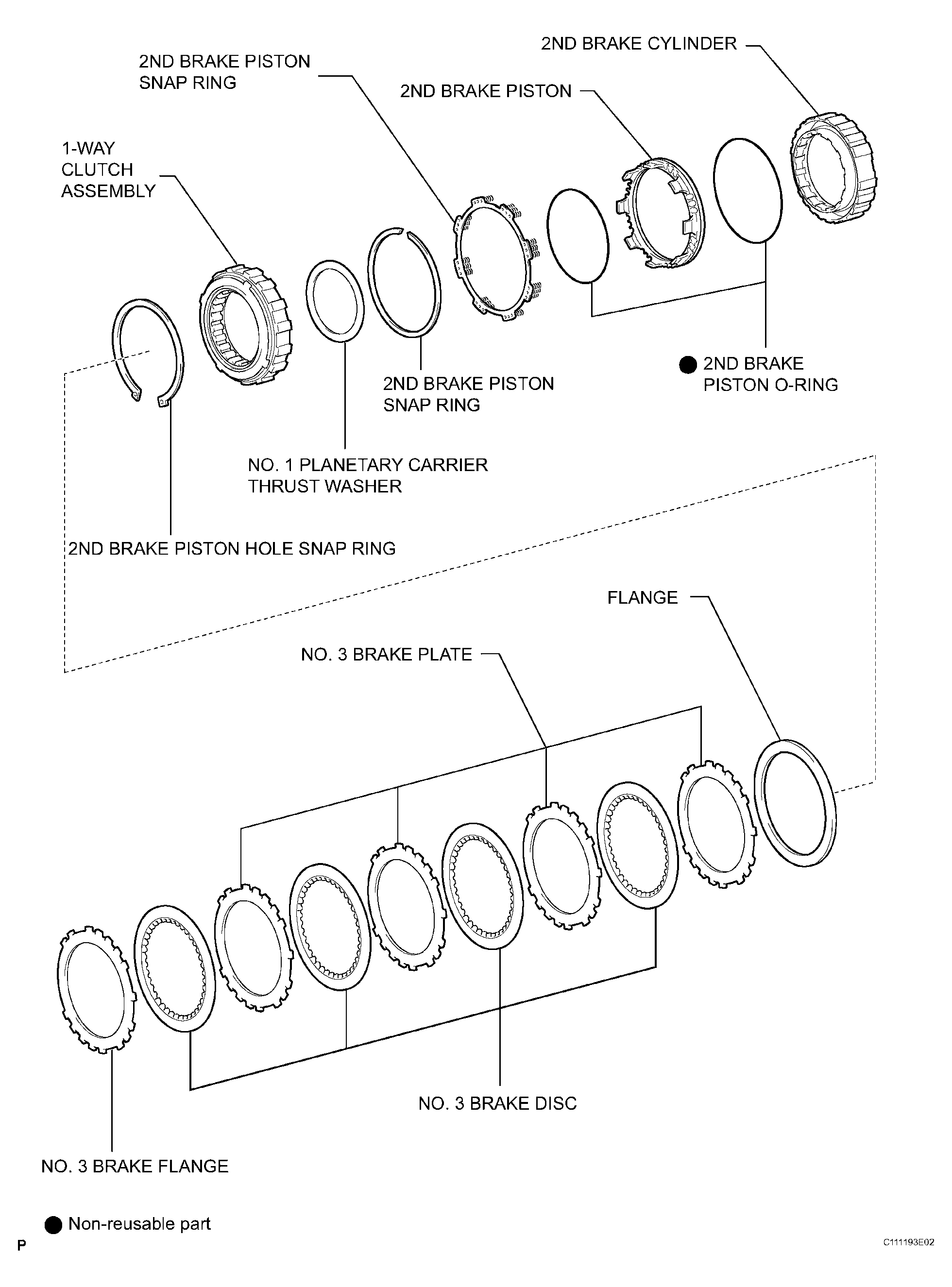

Fig 2: Identifying Automatic Transmission Unit Components (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

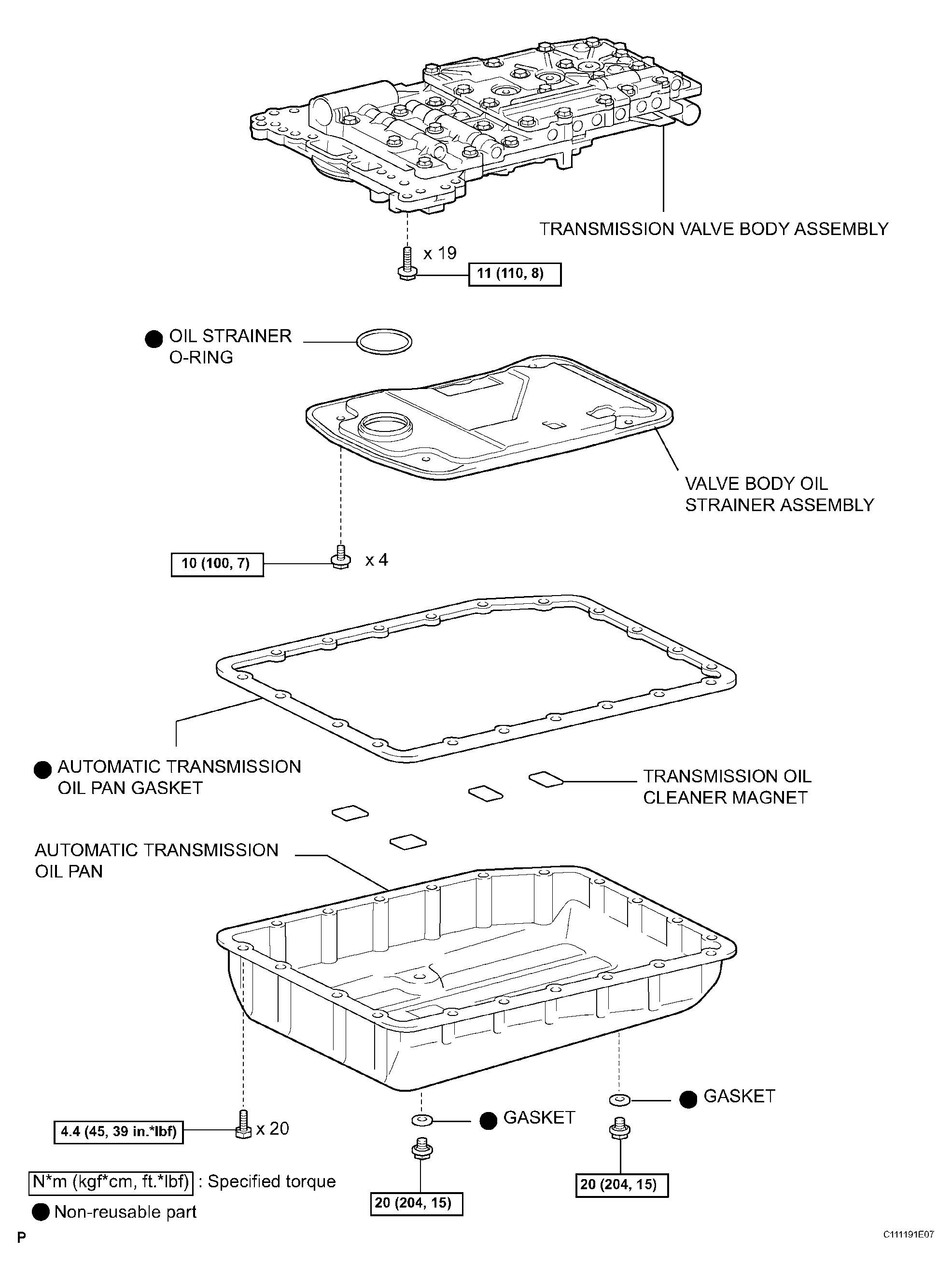

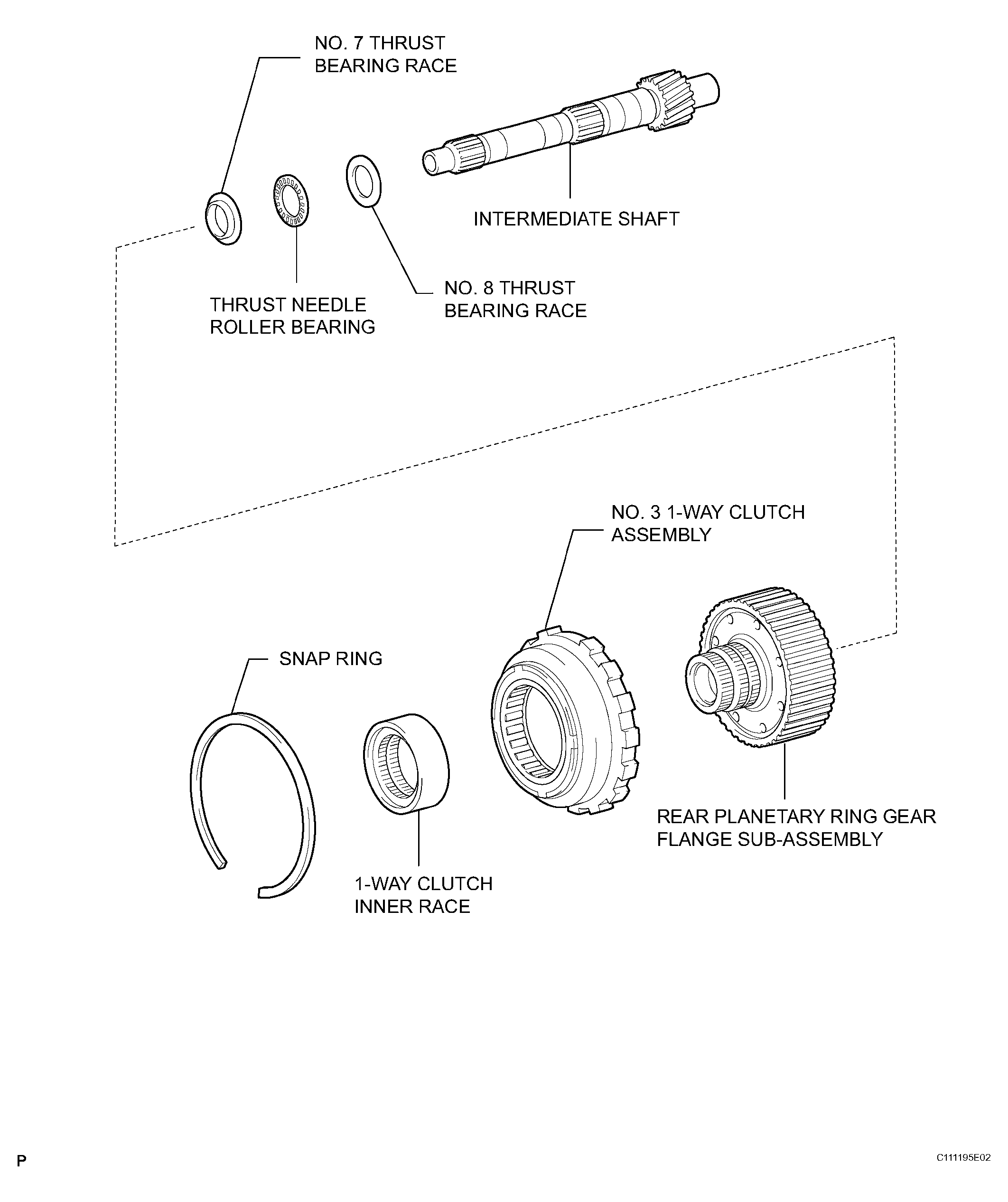

Fig 3: Identifying Automatic Transmission Unit Components (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

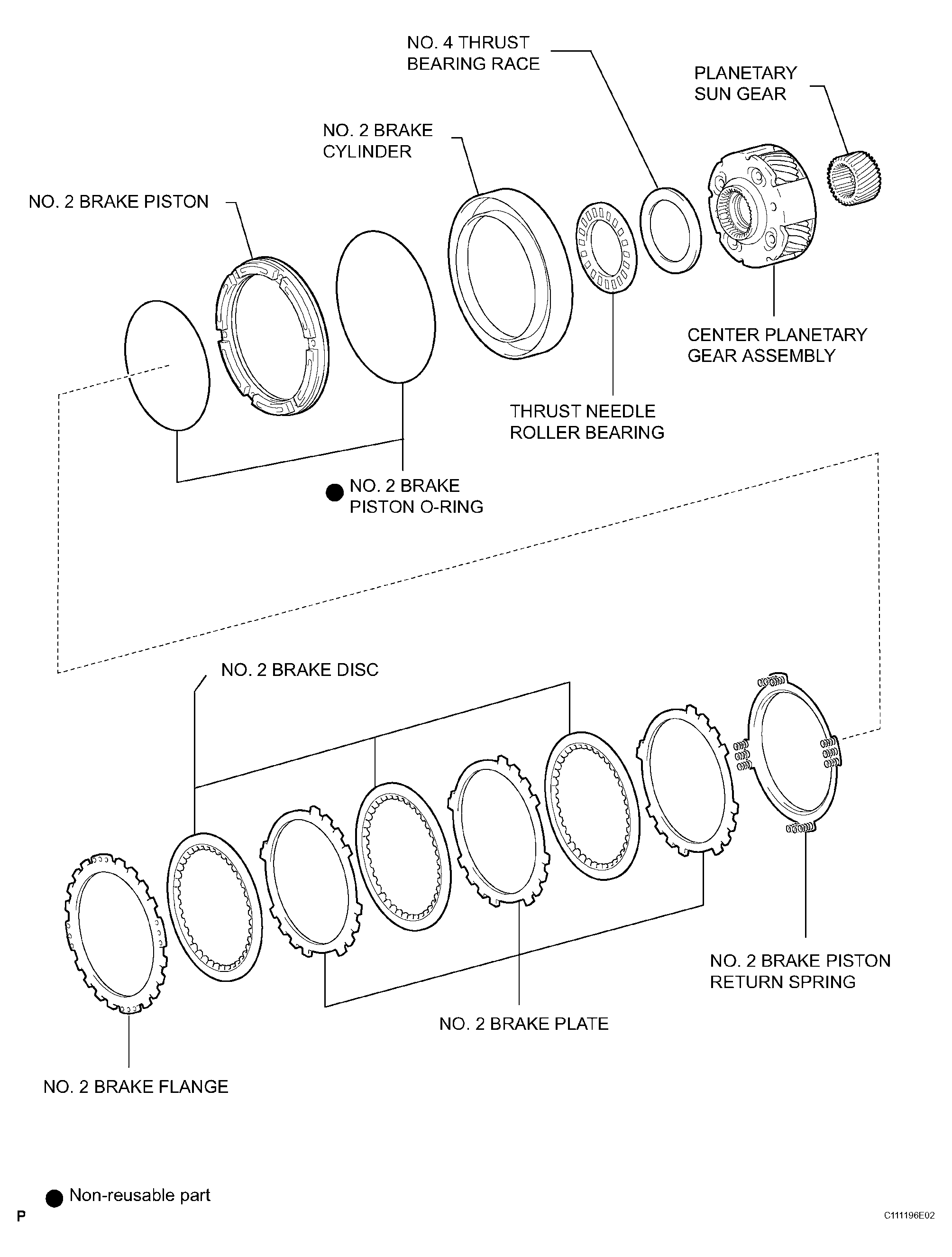

Fig 4: Identifying Automatic Transmission Unit Components (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

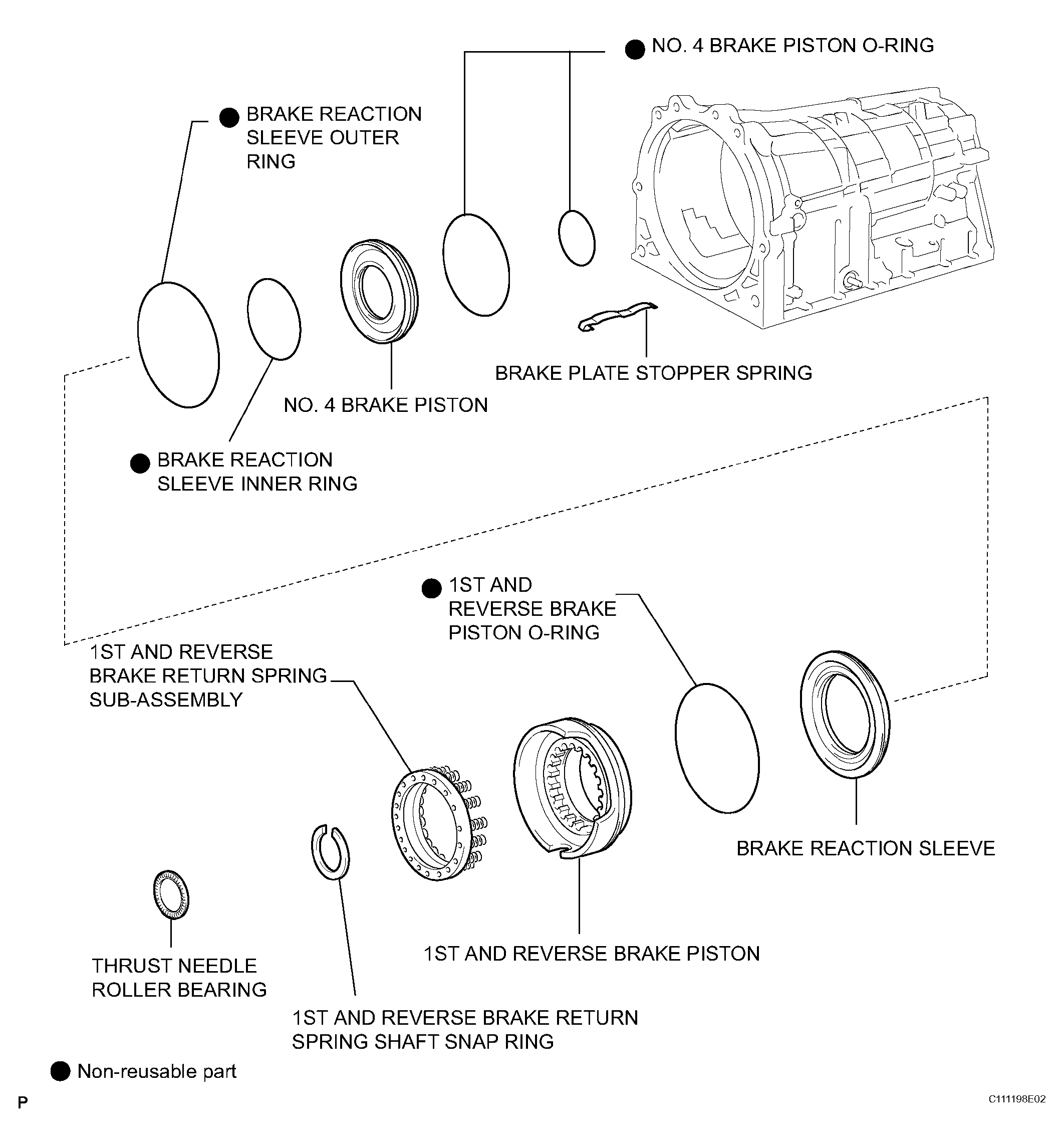

Fig 5: Identifying Automatic Transmission Unit Components (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

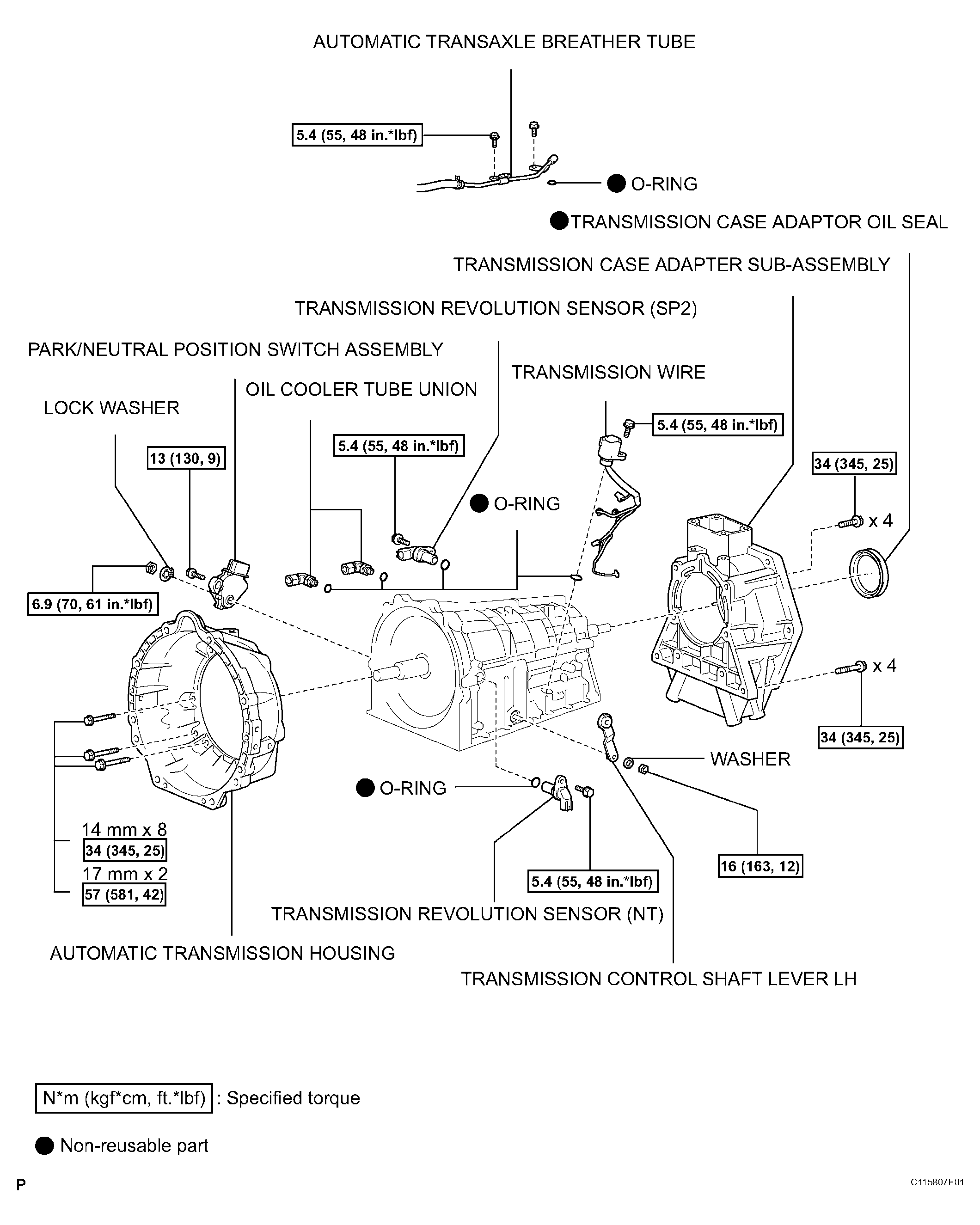

Fig 6: Identifying Automatic Transmission Unit Components (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

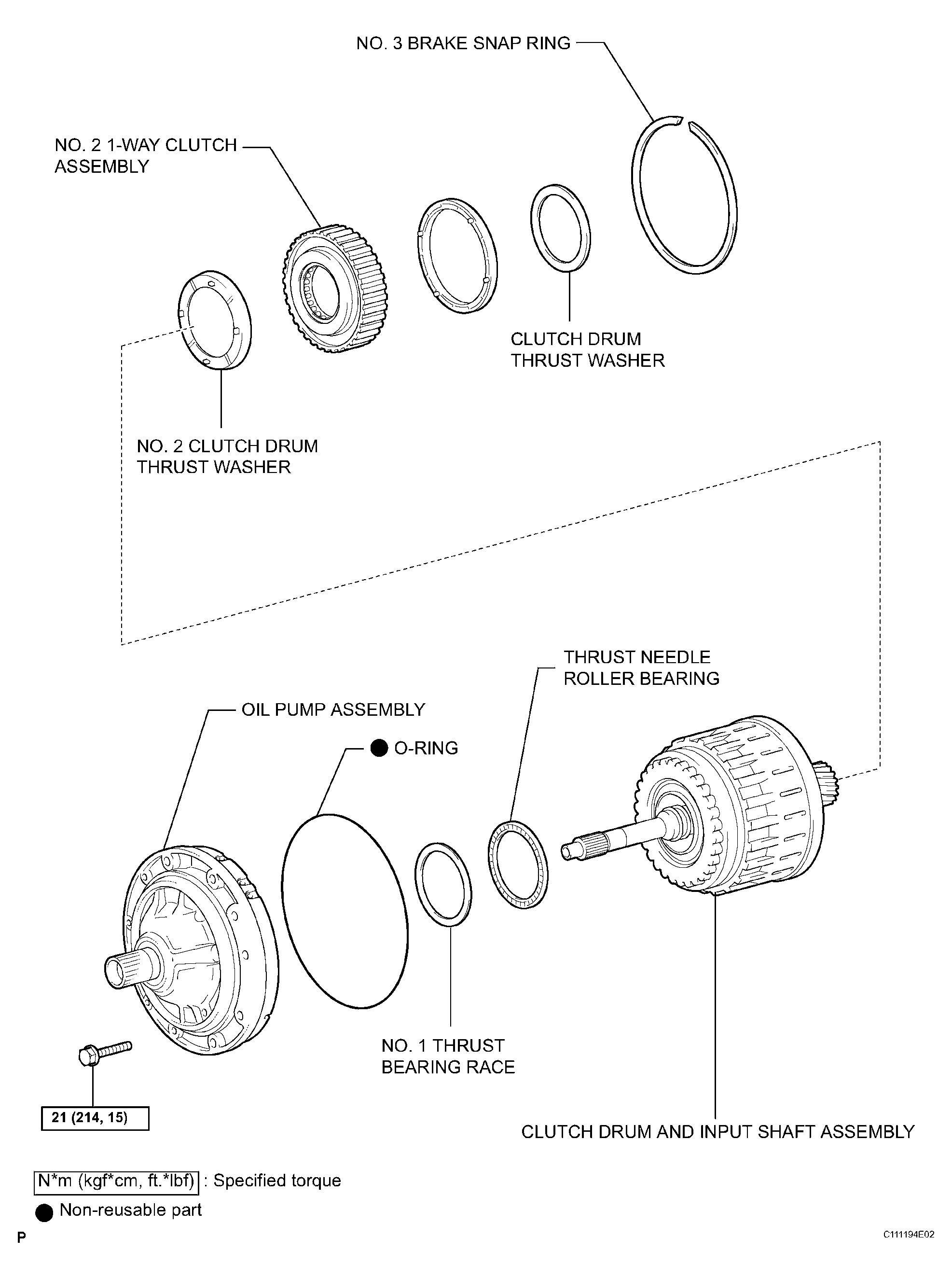

Fig 7: Identifying Automatic Transmission Unit Components (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

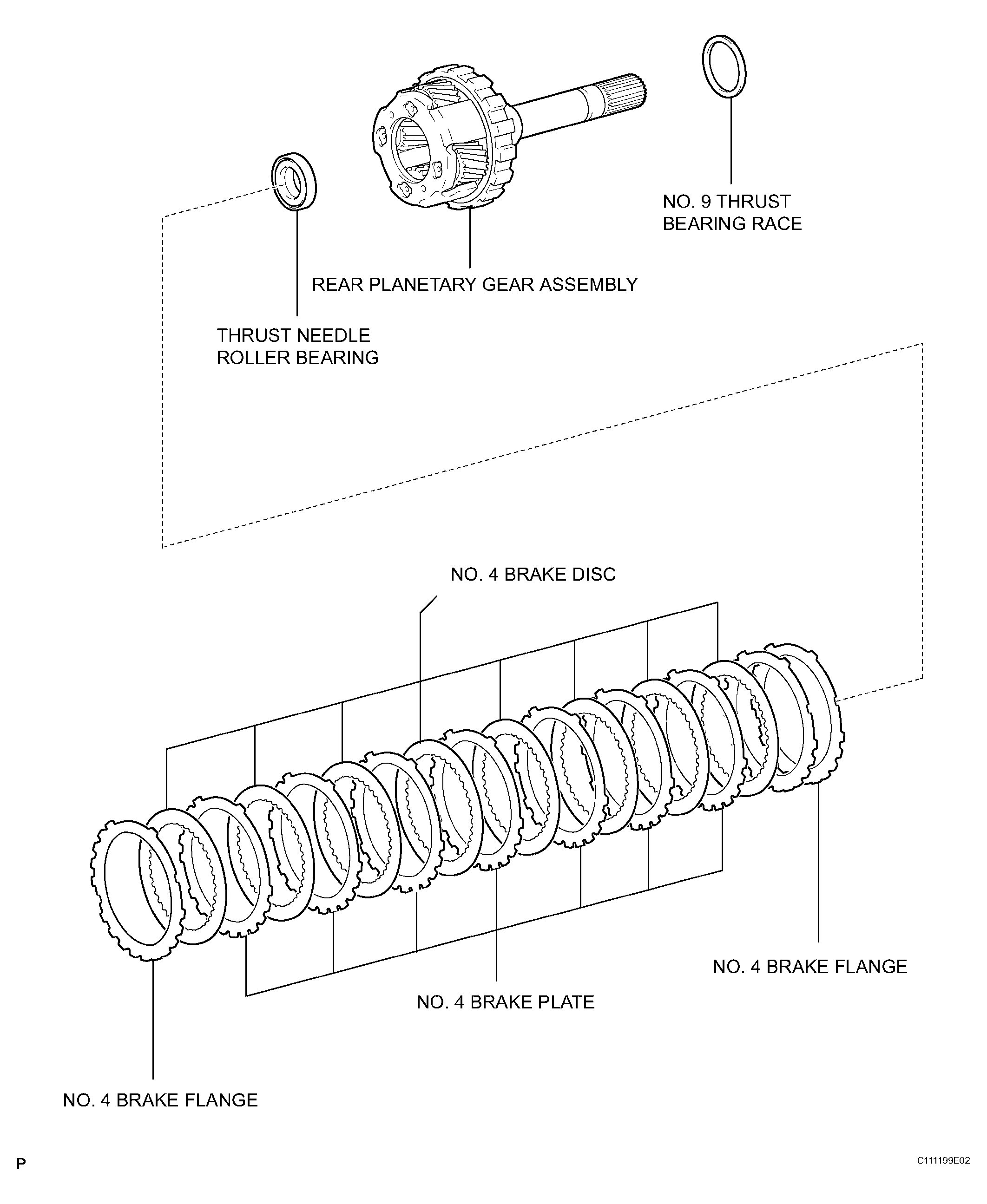

Fig 8: Identifying Automatic Transmission Unit Components (8 Of 11)

Fig 9: Identifying Automatic Transmission Unit Components (9 Of 11)

Fig 10: Identifying Automatic Transmission Unit Components (10 Of 11)

Fig 11: Identifying Automatic Transmission Unit Components (11 Of 11)
