Floor Shift Assembly: Components

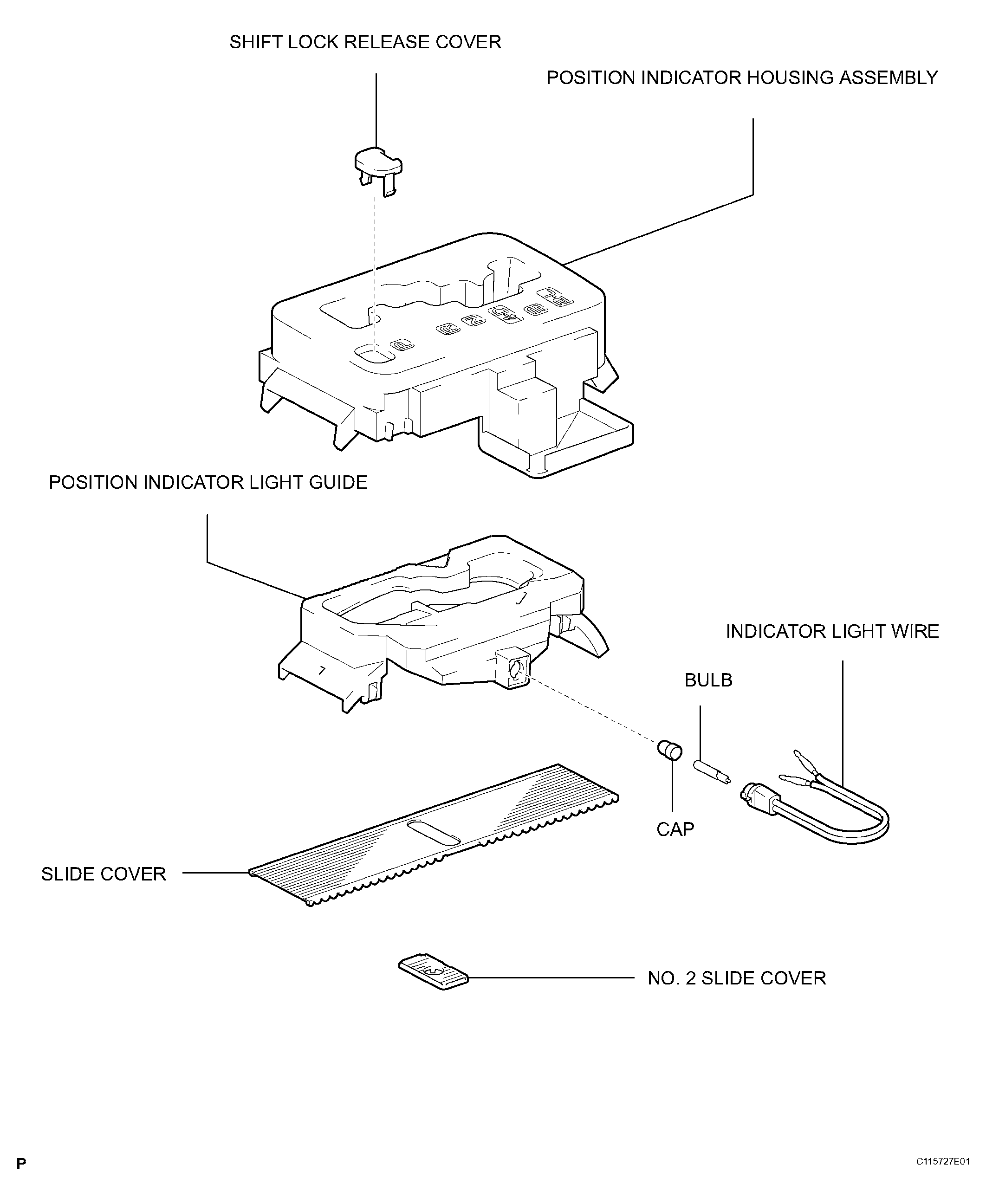

Fig 1: Identifying Floor Shift Assembly (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

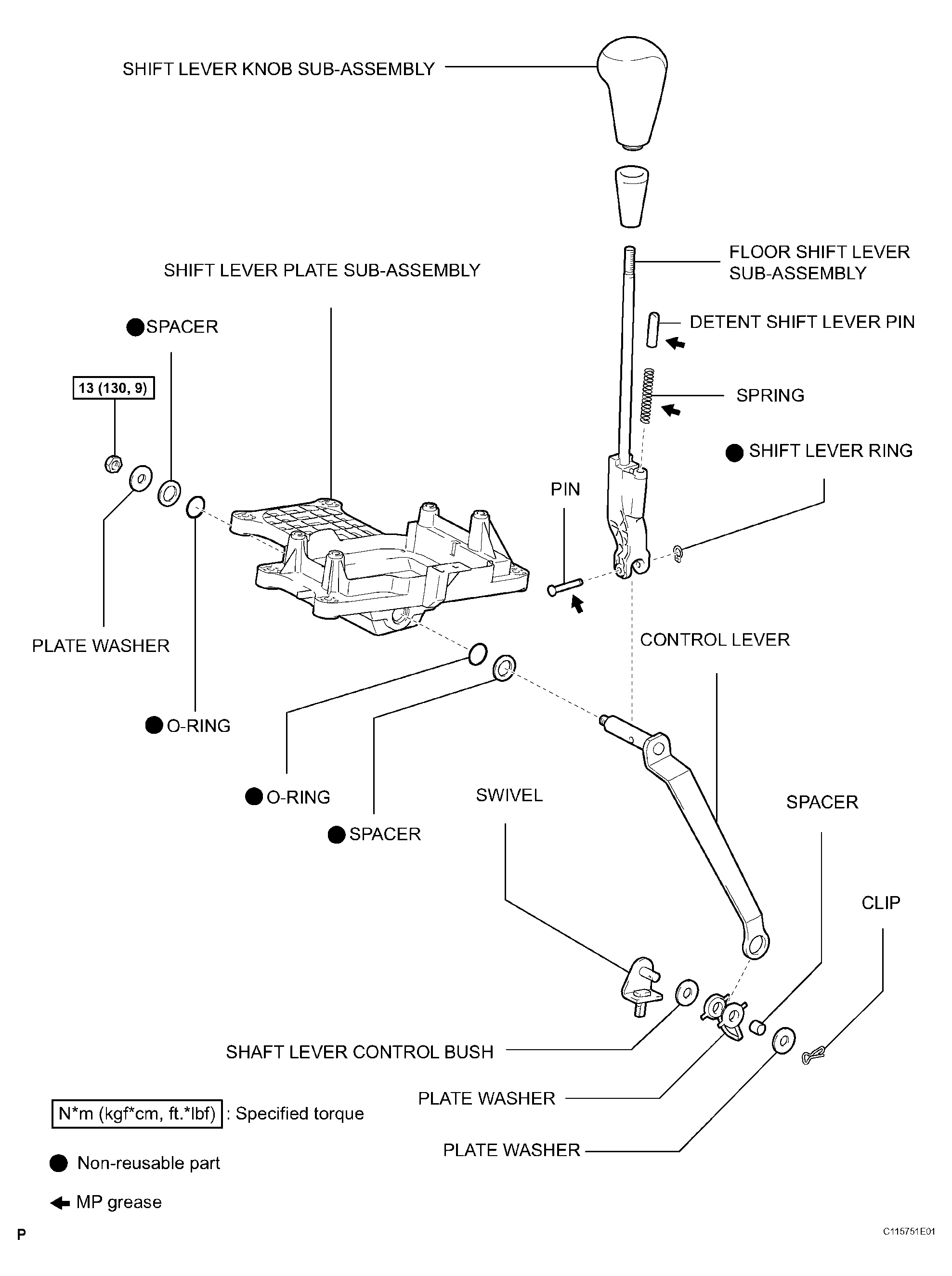

Fig 2: Identifying Floor Shift Assembly (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

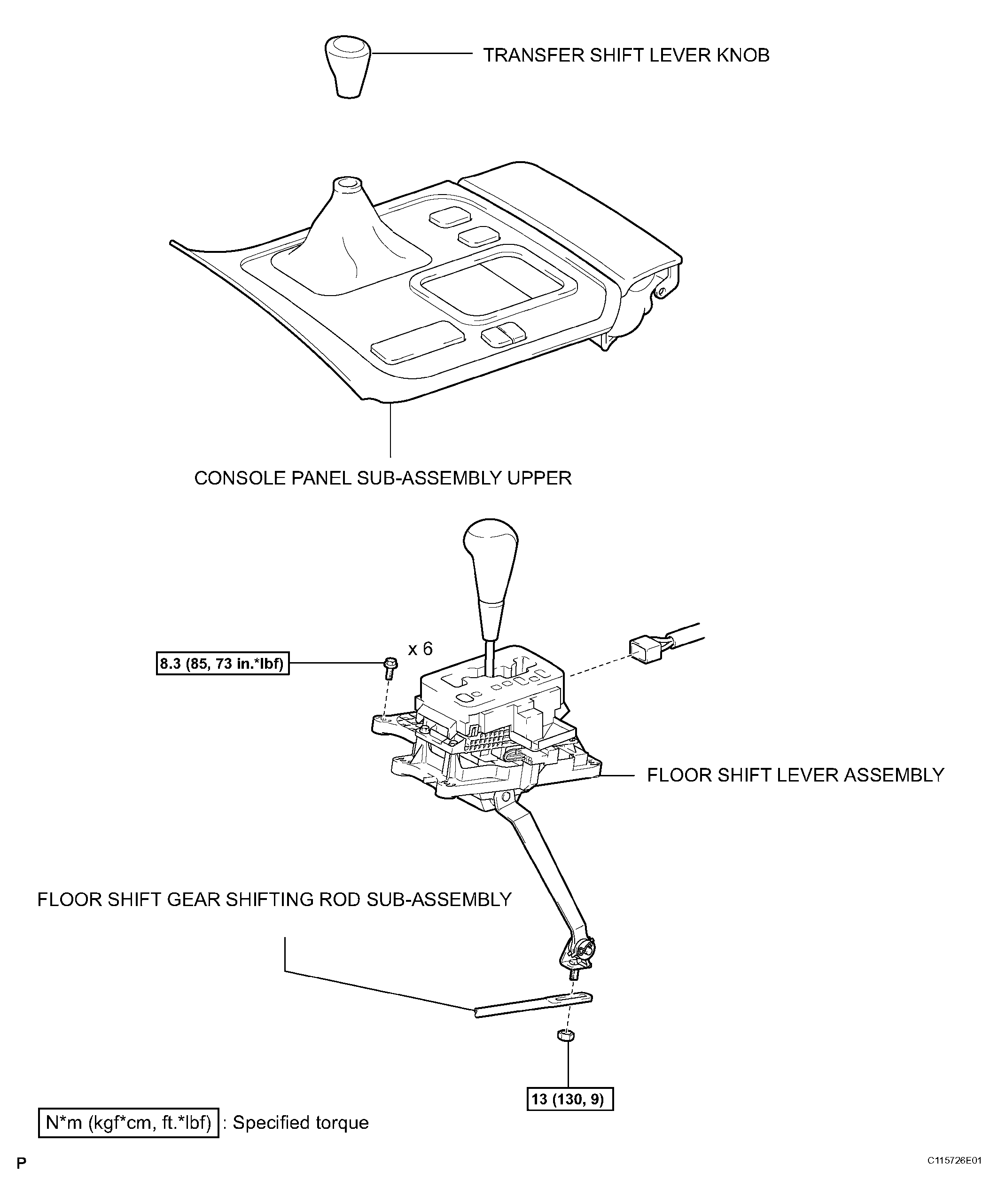

Fig 3: Identifying Floor Shift Assembly (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

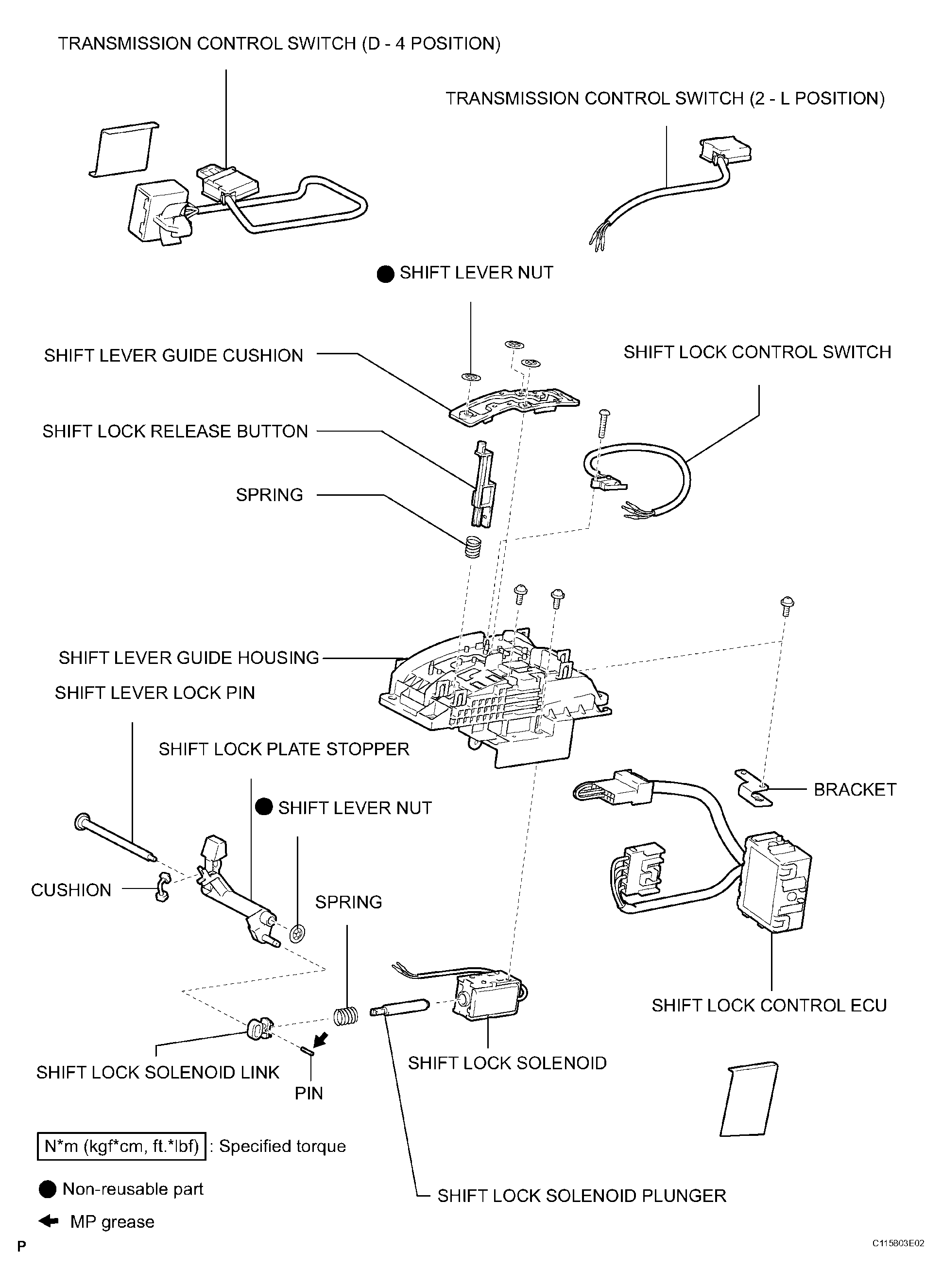

Fig 4: Identifying Floor Shift Assembly (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

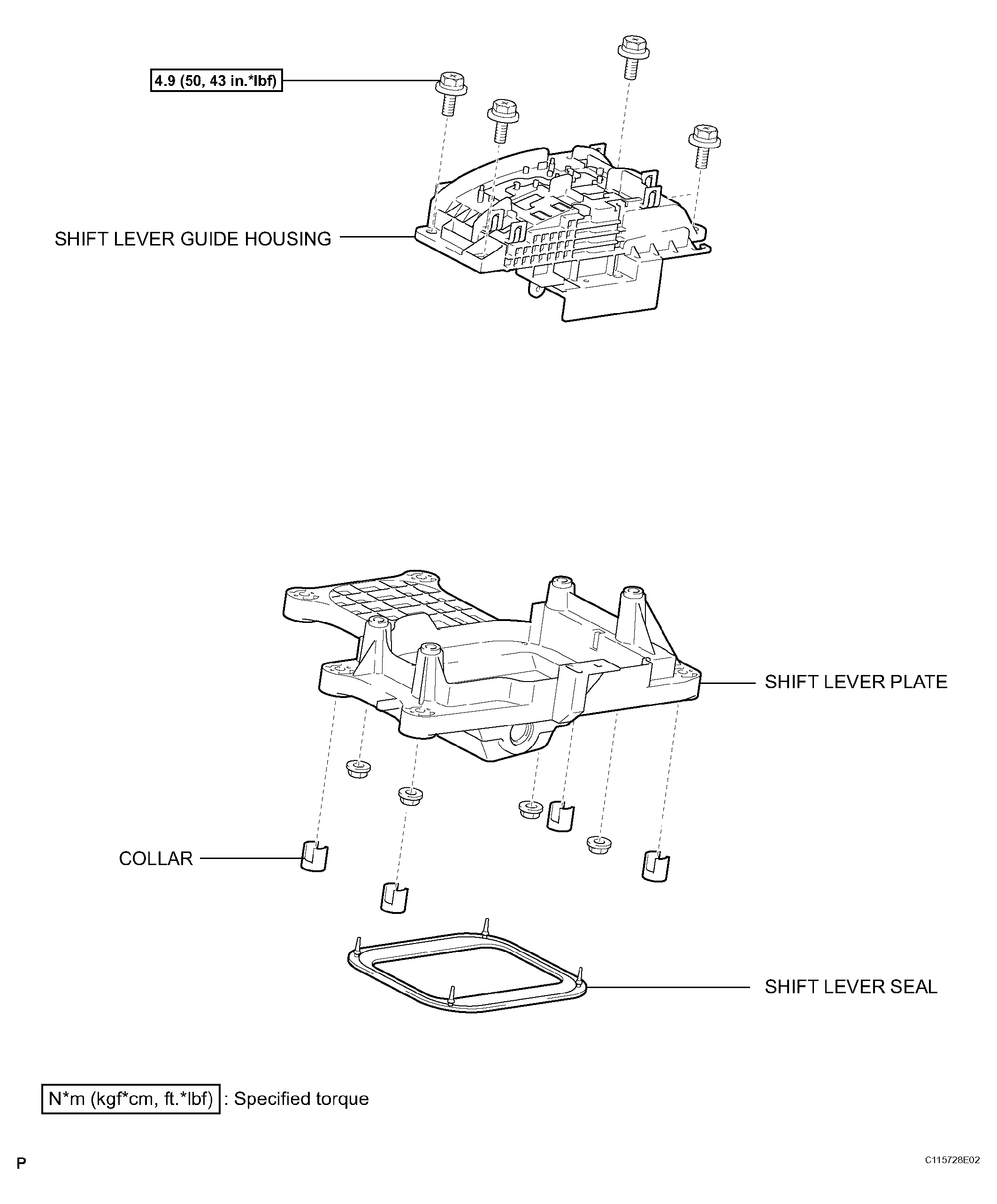

Fig 5: Identifying Floor Shift Assembly (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
