Speed Sensor: Removal

REMOVE SPEEDOMETER SENSOR
1. Disconnect the sensor connector.

  Fig 1: Disconnecting Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and the sensor.
3. Remove the clip and the driven gear from the sensor.
4. Remove the O-ring from the sensor.

  Fig 2: Removing Speed Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION REVOLUTION SENSOR (NT) AND (SP2)
1. Disconnect the sensor connectors.
2. Remove the 2 bolts, revolution sensor (SP2) and (NT).

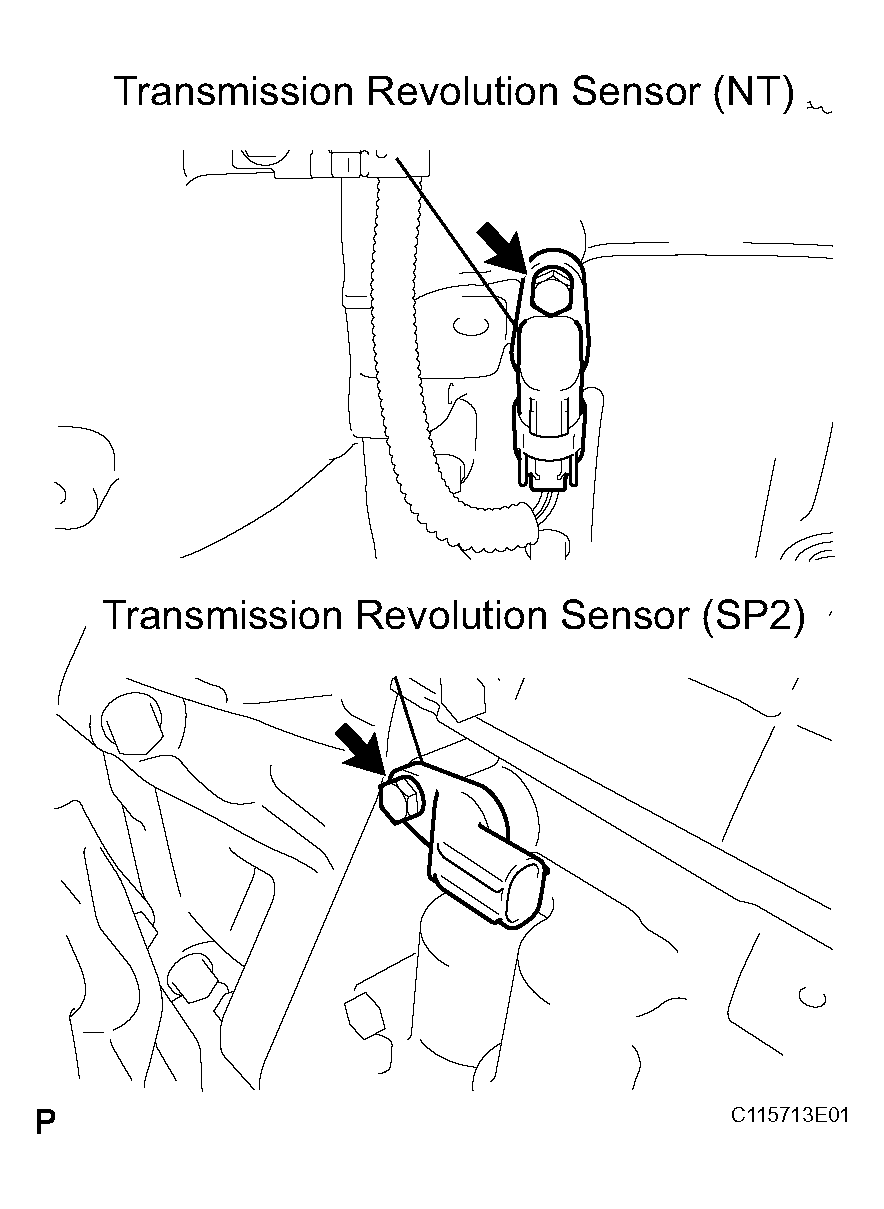

  Fig 3: Removing Transmission Revolution Sensor (NT) & (SP2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 O-rings from the revolution sensor (SP2) and (NT).

  Fig 4: Removing O-Rings From Revolution Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
