Transmission Wire: Components

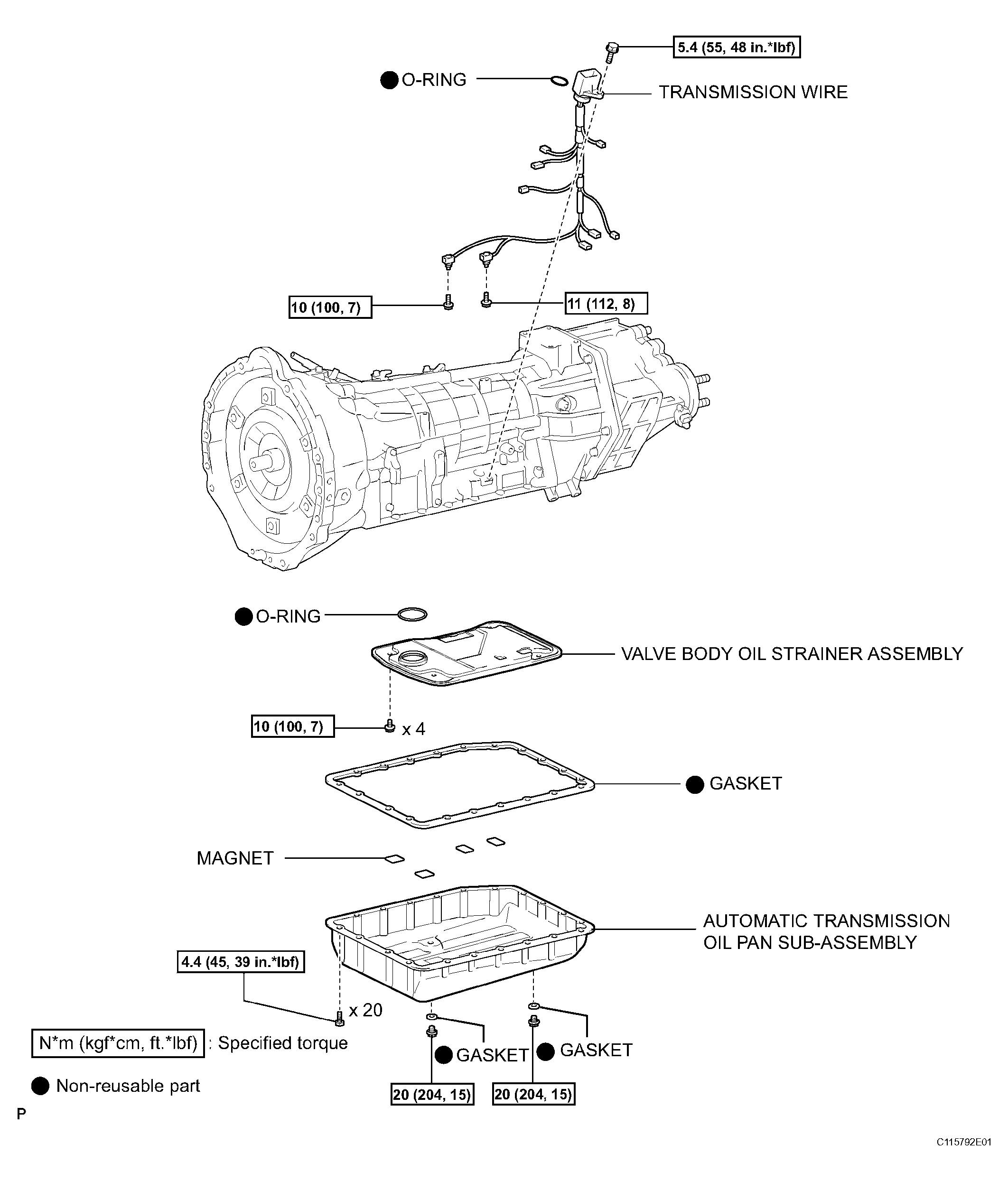

Fig 1: Identifying Transmission Wire Components
G04436542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
