Check CAN Bus Line: Wiring Diagram

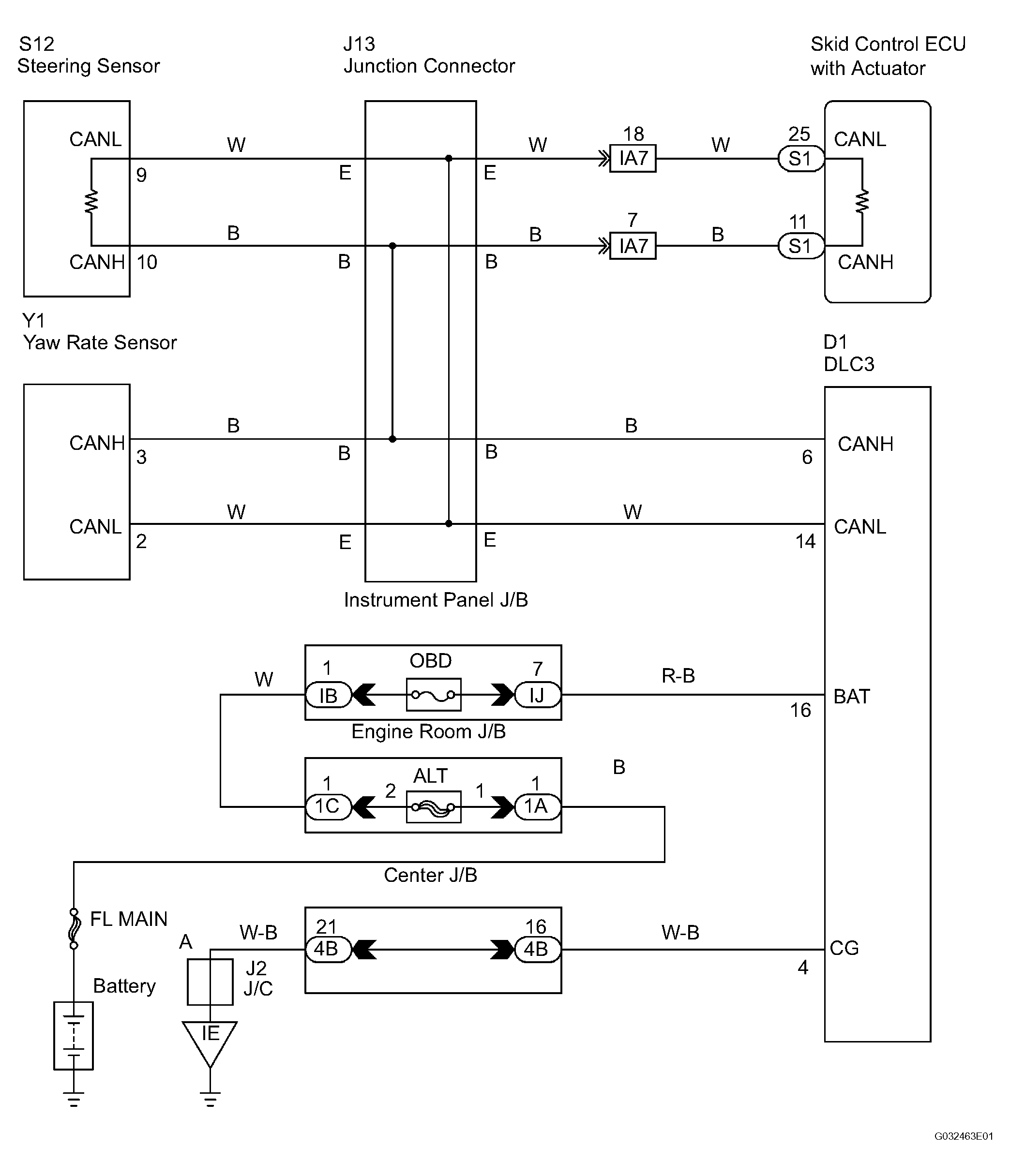

Fig 1: CAN Bus Line Wiring Diagram
G04467130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
