CRUISE CONTROL SYSTEM (w/Electronic Throttle Control System)
›
Parts Location
Parts Location

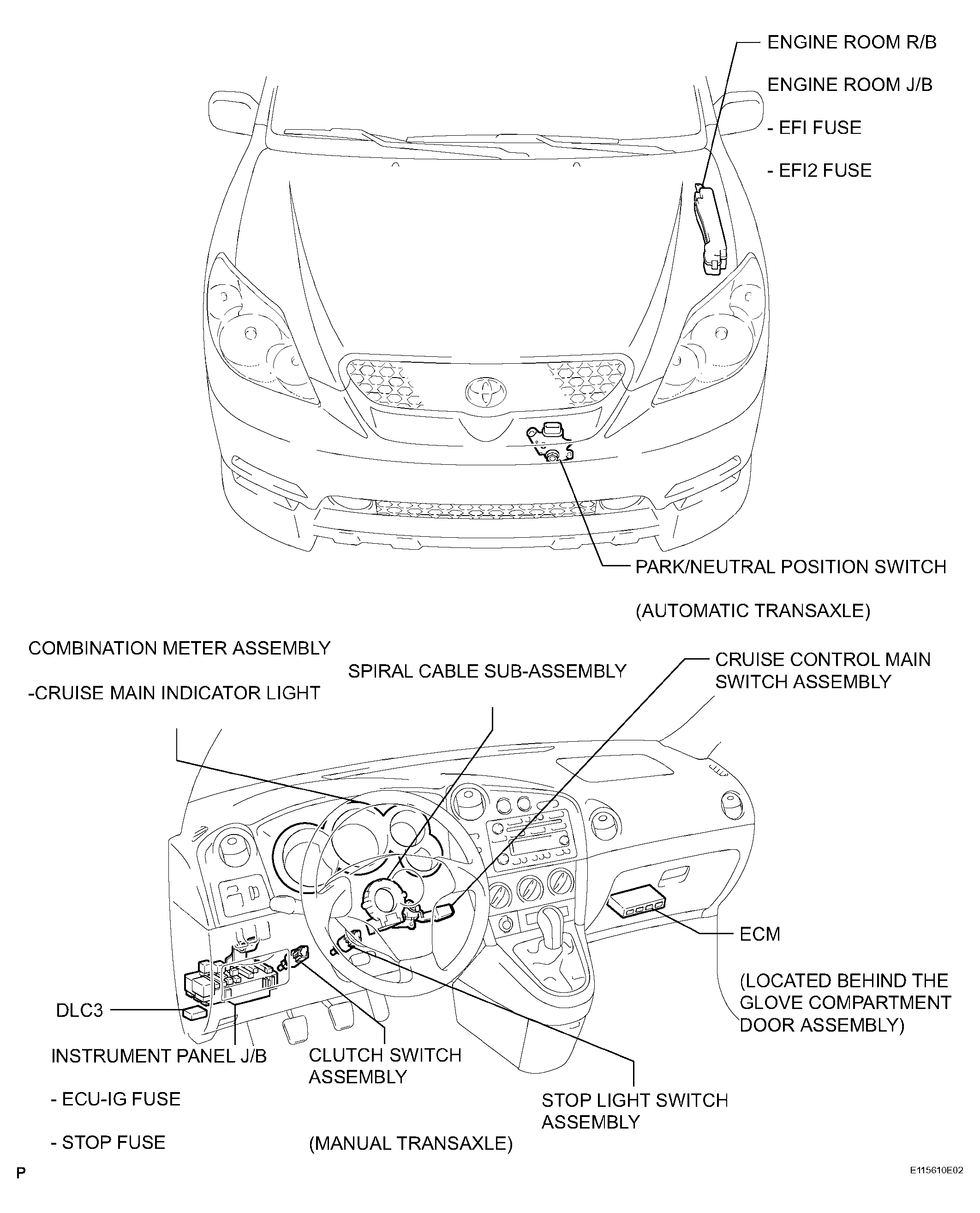

Fig 1: Identifying Cruise Control System (W/Electronic Throttle Control System) Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
