Audio And Visual System
›
Parts Location
Parts Location

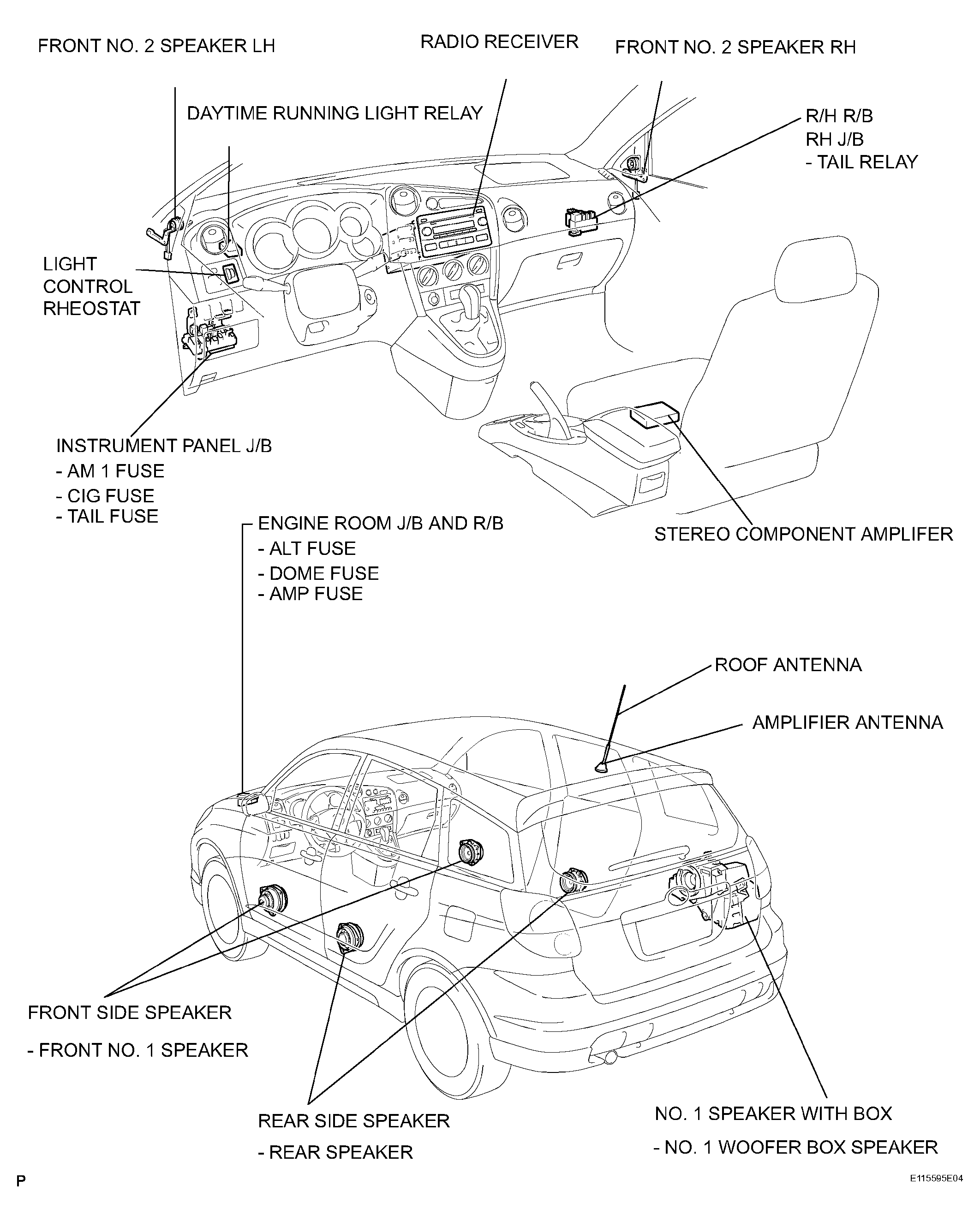

Fig 1: Identifying Audio And Visual System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
