Radio Receiver Power Source Circuit
›
Wiring Diagram
Radio Receiver Power Source Circuit: Wiring Diagram

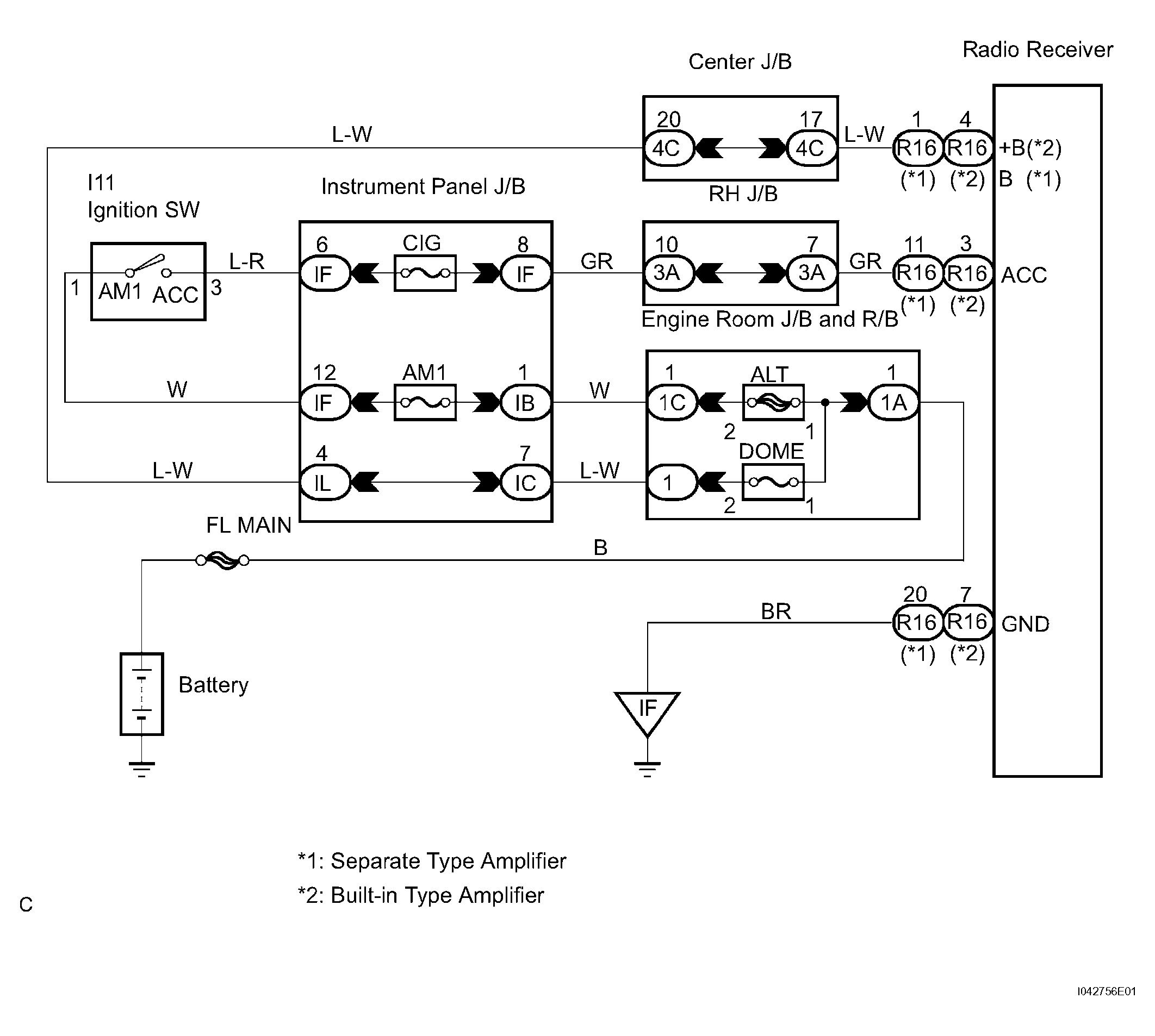

Fig 1: Radio Receiver Power Source Circuit Wiring Diagram
