Speaker Circuit: Wiring Diagram

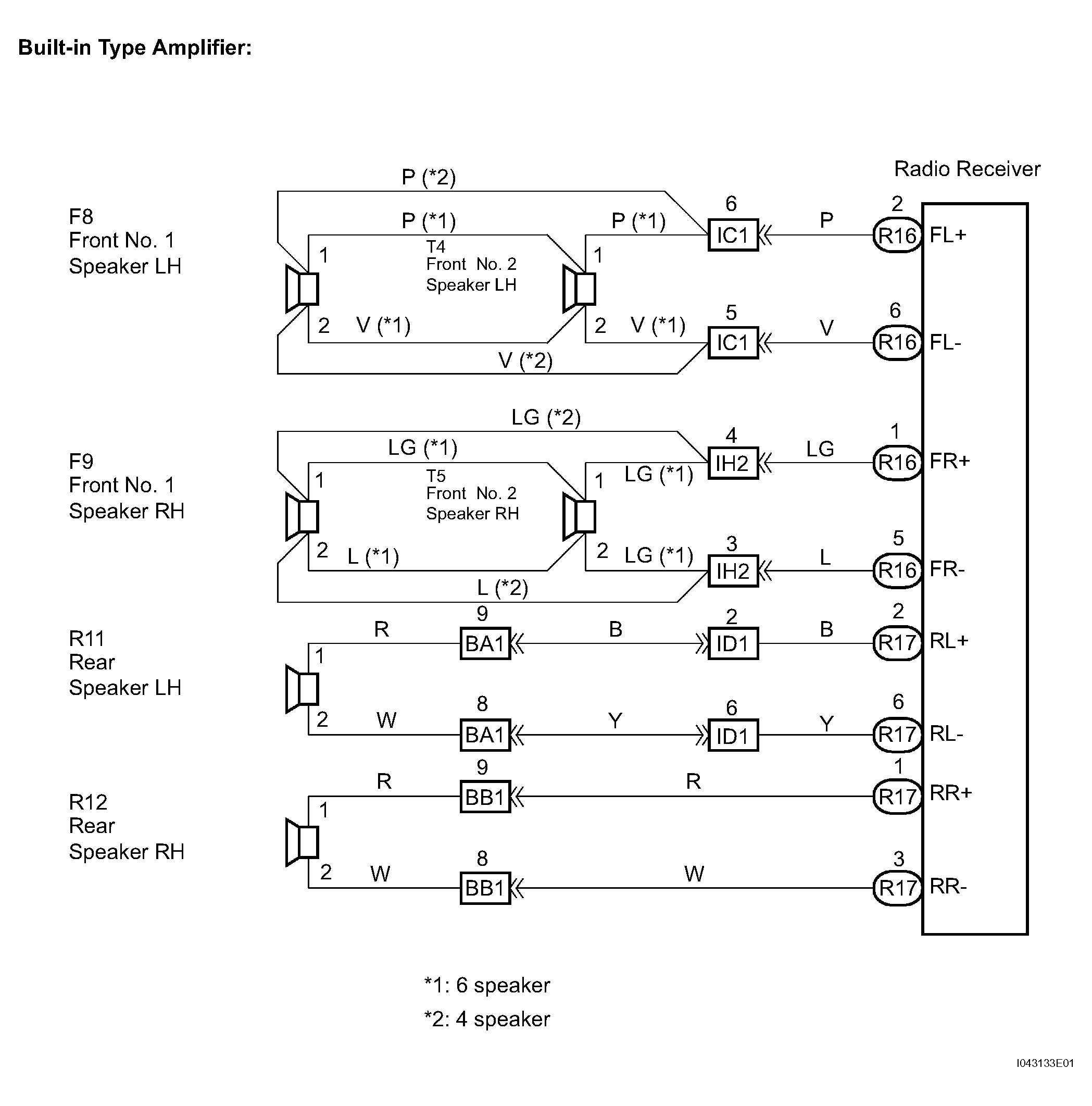

Fig 1: Speaker Circuit Wiring Diagram (Built In Amplifier Type)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

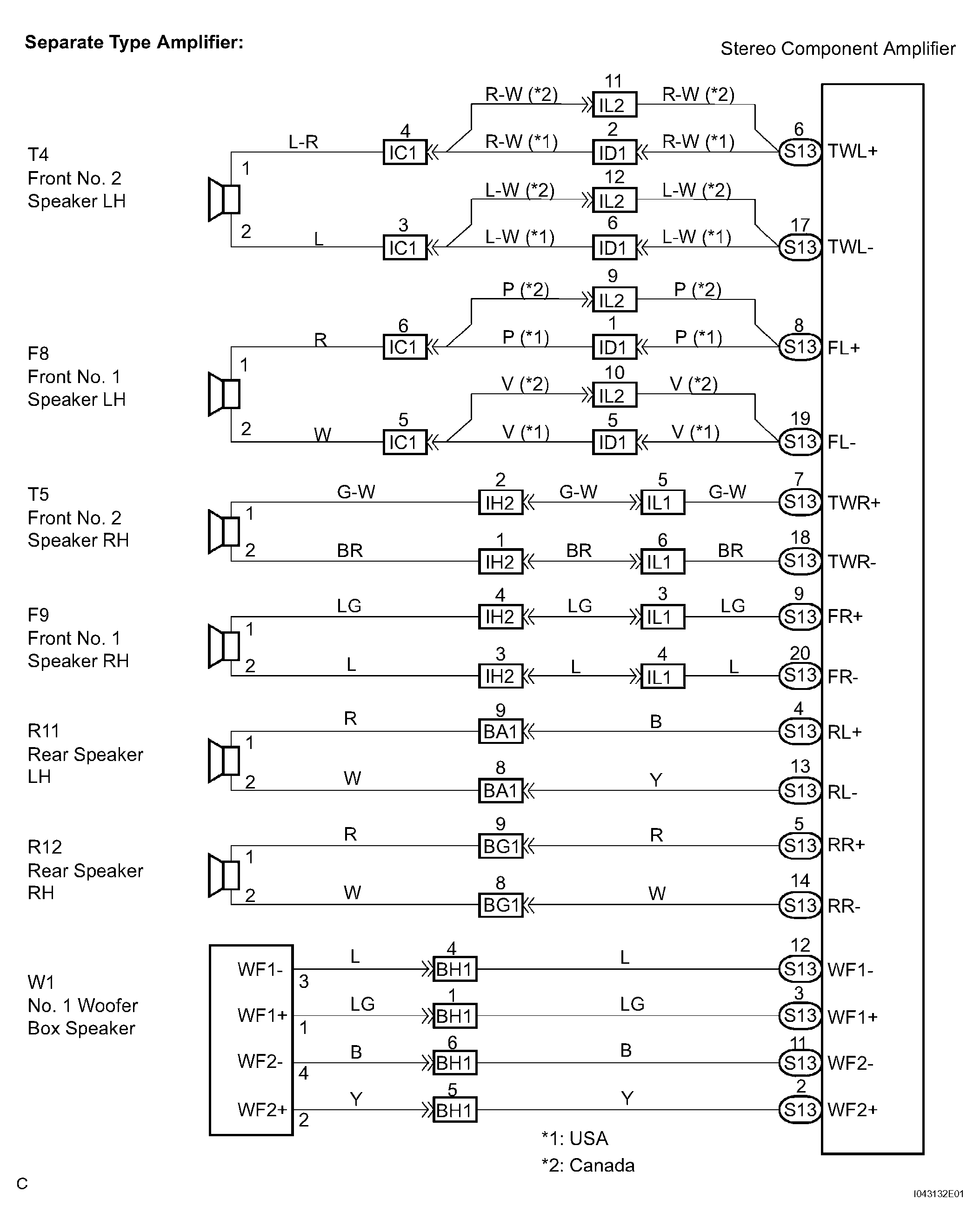

Fig 2: Speaker Circuit Wiring Diagram (Separate Type Amplifier)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
