Toyota
›
2006
›
Matrix Base, 4WD
›
Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Audio/Visual System
›
Audio And Visual System
›
Stereo Component Amplifier Power Source Circuit
›
Wiring Diagram
Stereo Component Amplifier Power Source Circuit: Wiring Diagram

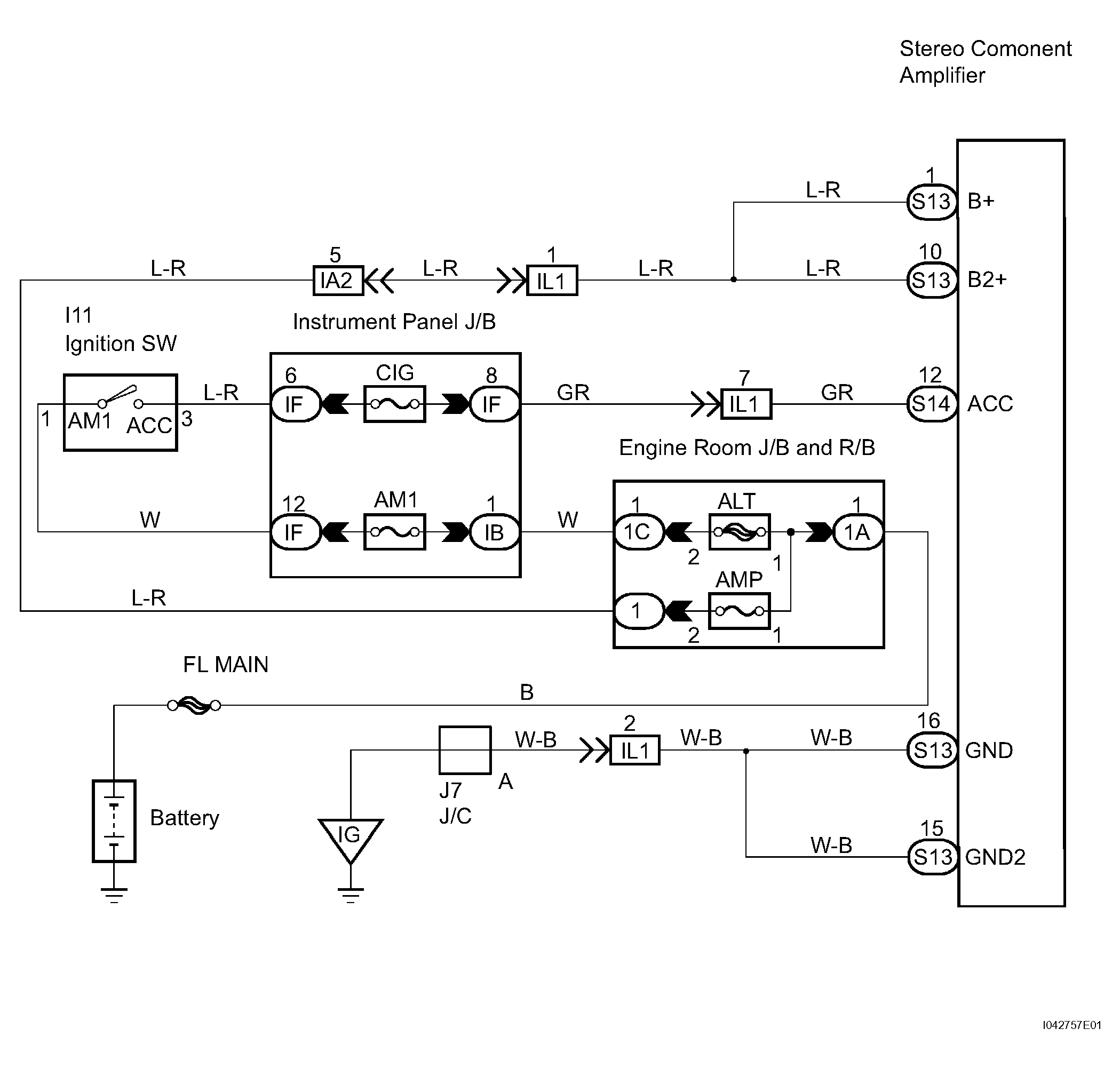

Fig 1: Stereo Component Amplifier Power Source Circuit Wiring Diagram
