Audio/Visual System
›
Audio And Visual System
›
System Diagram
System Diagram

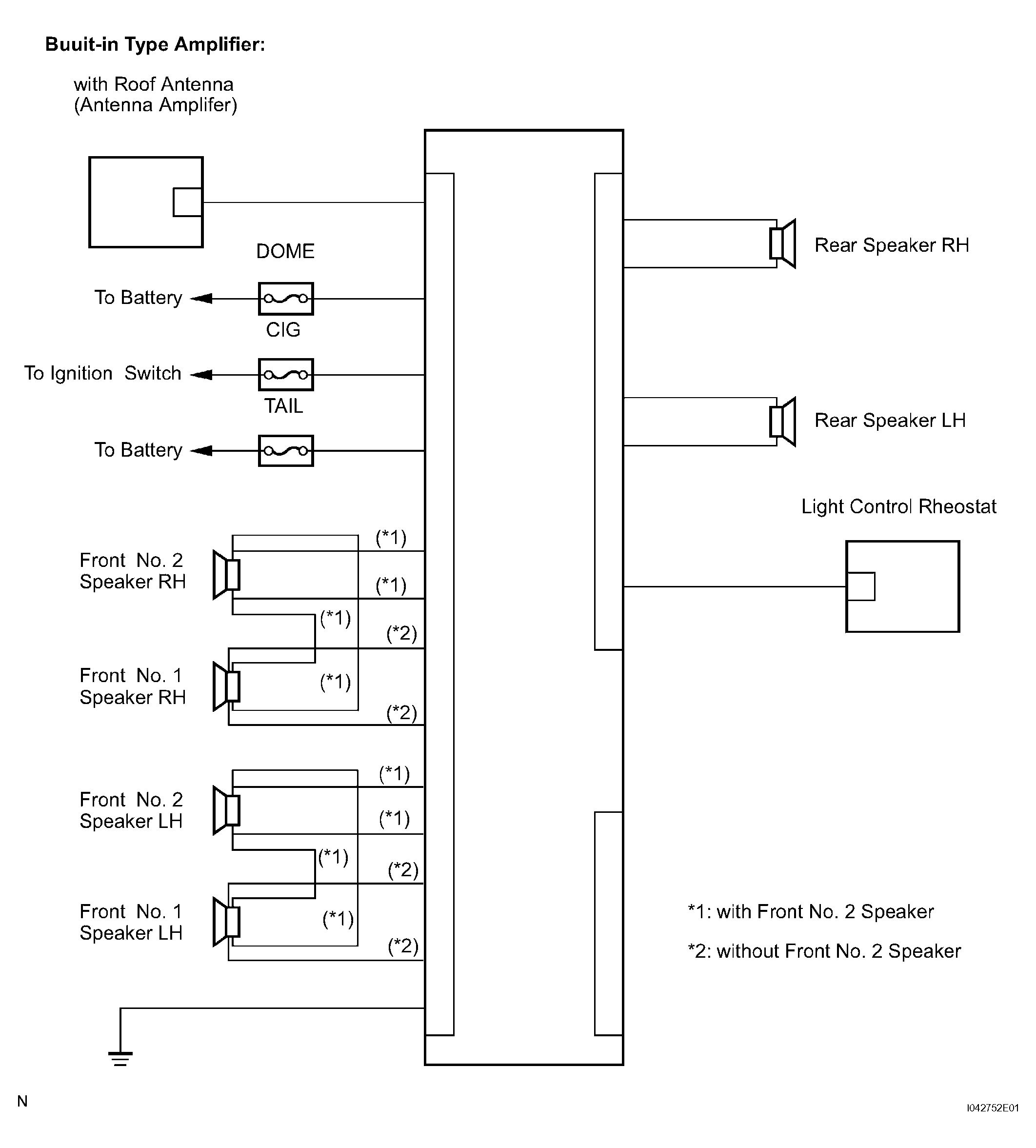

Fig 1: Audio And Visual System Diagram (Built In Type Amplifier)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

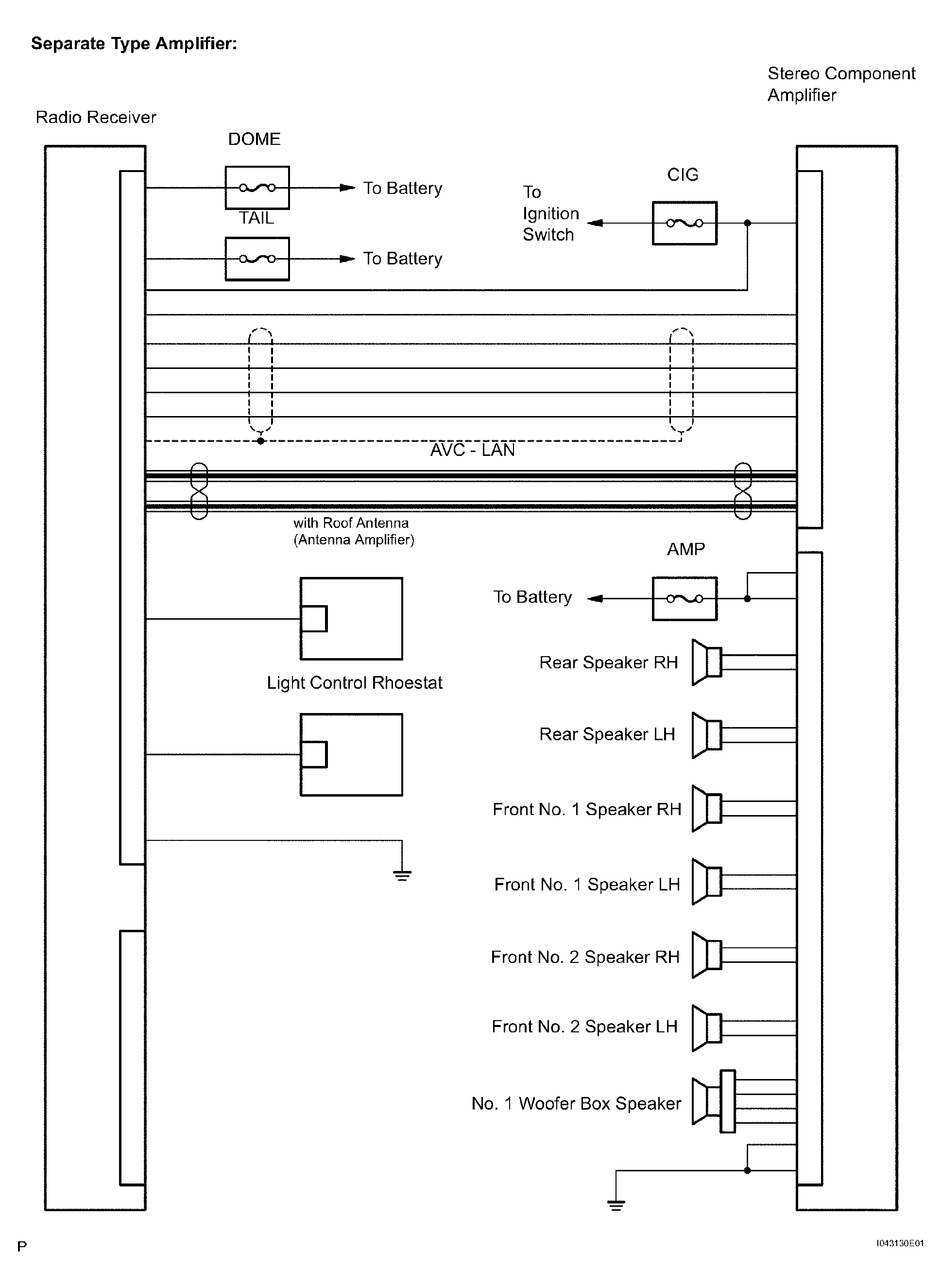

Fig 2: Audio And Visual System Diagram (Separate Type Amplifier)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
