Door Lock
›
How To Proceed With Troubleshooting
›
Key Lock-in Prevention Function does not Work Properly
›
Wiring Diagram
Key Lock-in Prevention Function does not Work Properly: Wiring Diagram

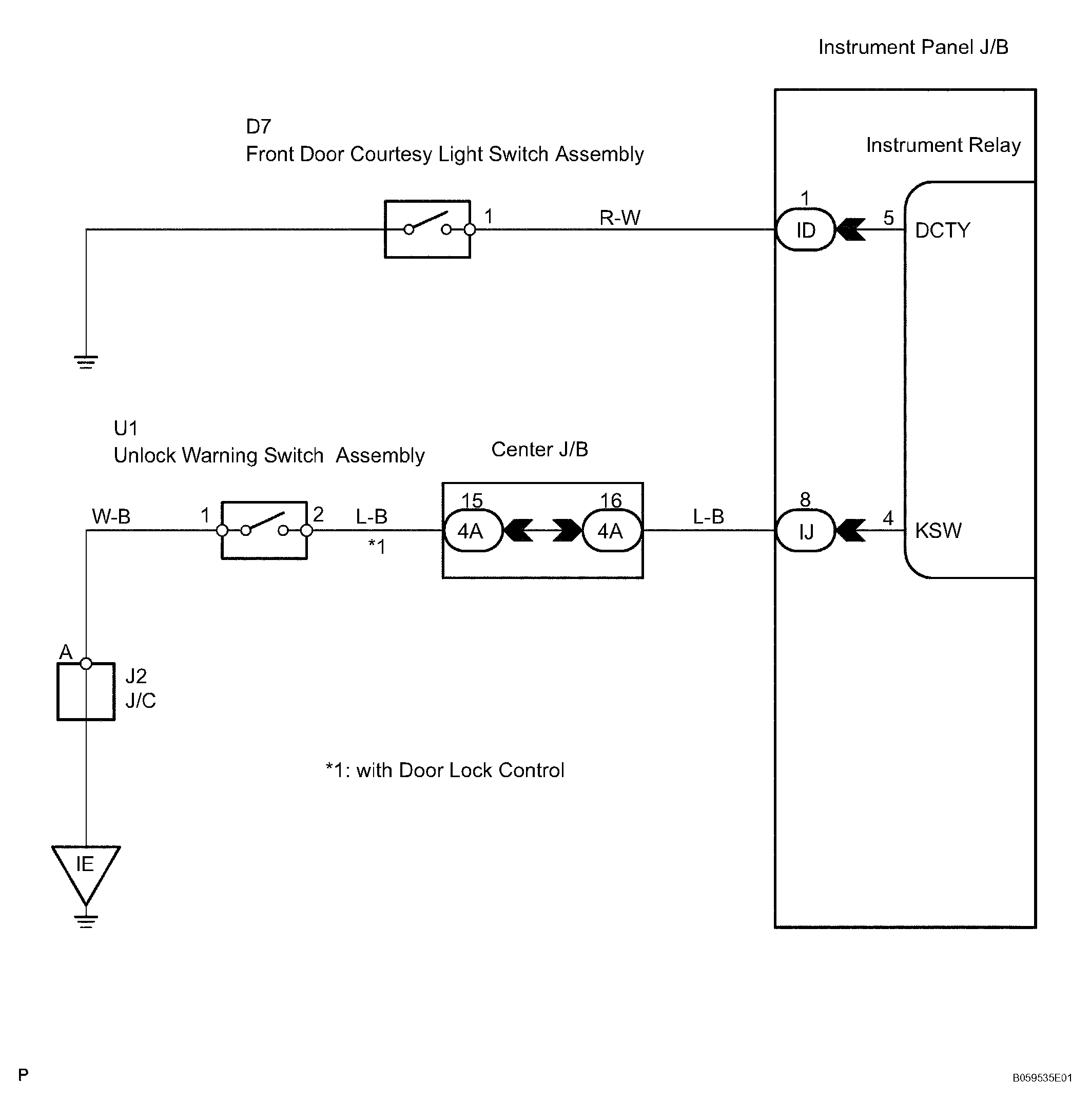

Fig 1: Key Lock-In Prevention Function Does Not Work Properly - Wiring Diagram
