Inspection Procedure

1. Check door lock operation (See OPERATION CHECK ).

NG: REPLACE DOOR LOCK

OK: GO TO NEXT STEP

1. Disconnect the TVIP ECU and door lock connectors.
2. Measure the resistance according to the value(s) in TVIP ECU - DOOR LOCK  .

   Standard resistance

   TVIP ECU - DOOR LOCK



   Tester Connection	Specified Condition
   LSWD (T3-37) - D11-8	Below 1 Ω
   LSWP (T3-38) - D12-7	Below 1 Ω

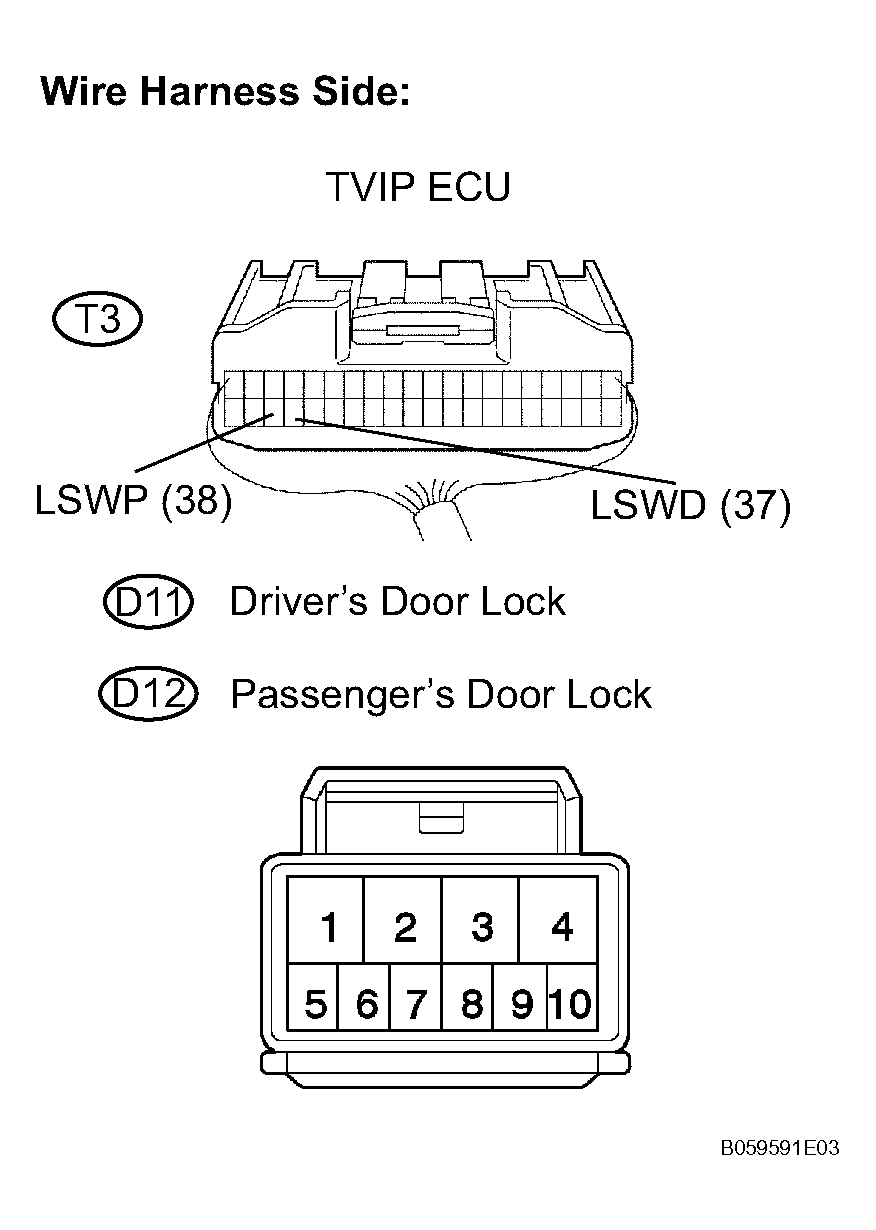

   Fig 1: Checking Harness And Connector (TVIP ECU - Door Lock)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

1. Disconnect the door lock connectors.
2. Measure the resistance according to the value(s) in DOOR LOCK - BODY GROUND  .

   Standard resistance

   DOOR LOCK - BODY GROUND



   Tester Connection	Specified Condition
   D11-7 - Body ground	Below 1 Ω
   D12-8 - Body ground	Below 1 Ω

   Fig 2: Checking Harness And Connector (Door Lock - Body Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
