Inspection Procedure
- CHECK SECURITY INDICATOR LIGHT ASSEMBLY
- Remove the security indicator.
- Apply battery voltage and check that the security indicator turns on.
Standard resistance
SECURITY INDICATOR LIGHT ASSEMBLYMeasurement Condition Specified Condition Battery positive (+) - Terminal 2
Battery negative (-) - Terminal 1Security indicator turns on
NG: REPLACE SECURITY INDICATOR LIGHT ASSEMBLY
OK: GO TO NEXT STEP
- CHECK HARNESS AND CONNECTOR (TVIP ECU - SECURITY INDICATOR)
- Disconnect the TVIP ECU and security indicator connectors.

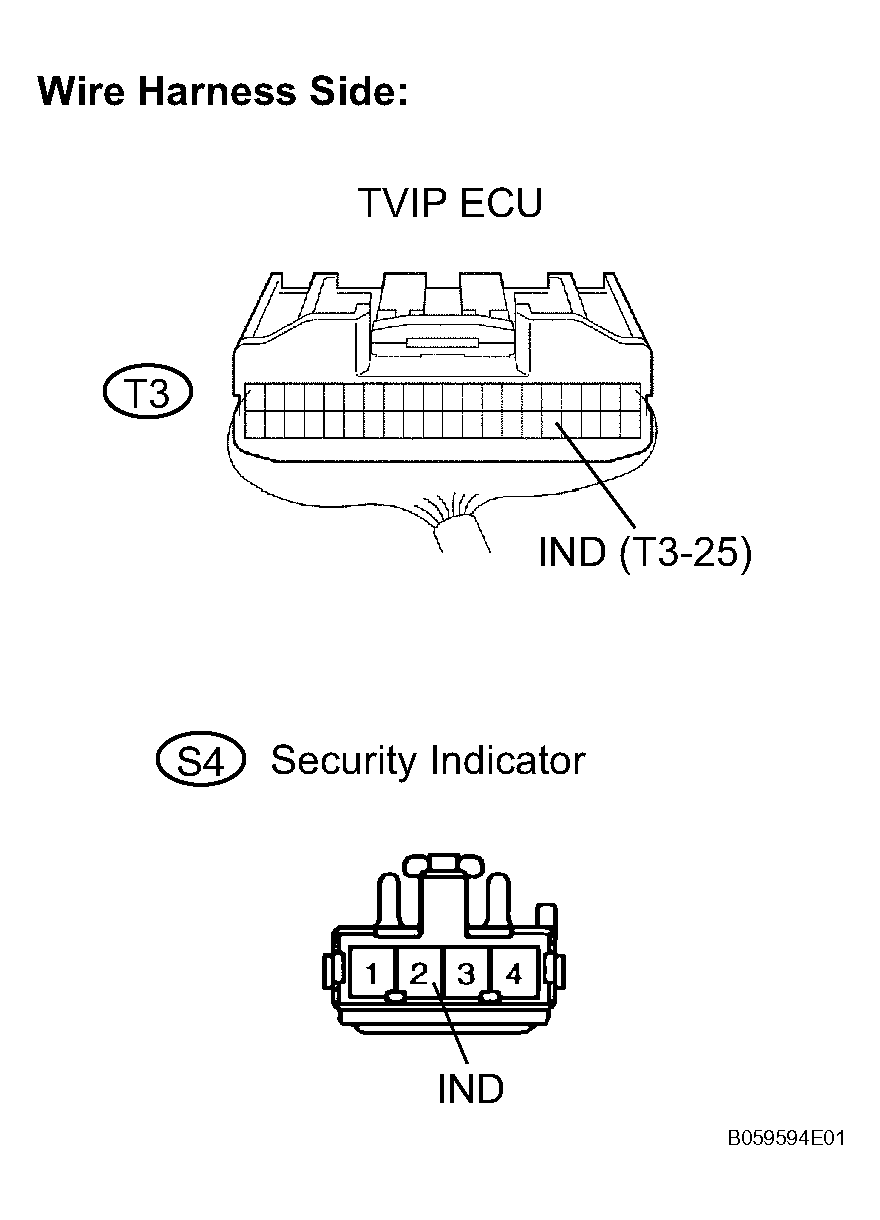

- Measure the resistance according to the value(s) in TVIP ECU - SECURITY INDICATOR
.
Standard resistance
TVIP ECU - SECURITY INDICATORTester Connection Specified Condition IND (T3-25) - IND (S4-2) Below 1 Ω
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: GO TO NEXT STEP
- CHECK HARNESS AND CONNECTOR (SECURITY INDICATOR - BODY GROUND)
- Disconnect the security indicator connector.
- Measure the resistance according to the value(s) in SECURITY INDICATOR - BODY GROUND
.
Standard resistance
SECURITY INDICATOR - BODY GROUNDTester Connection Specified Condition GND (S4-2) - Body ground Below 1 Ω
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE TVIP ECU
