Brakes - Abs With VSC
›
Vehicle Stability Control System
›
System Diagram
System Diagram

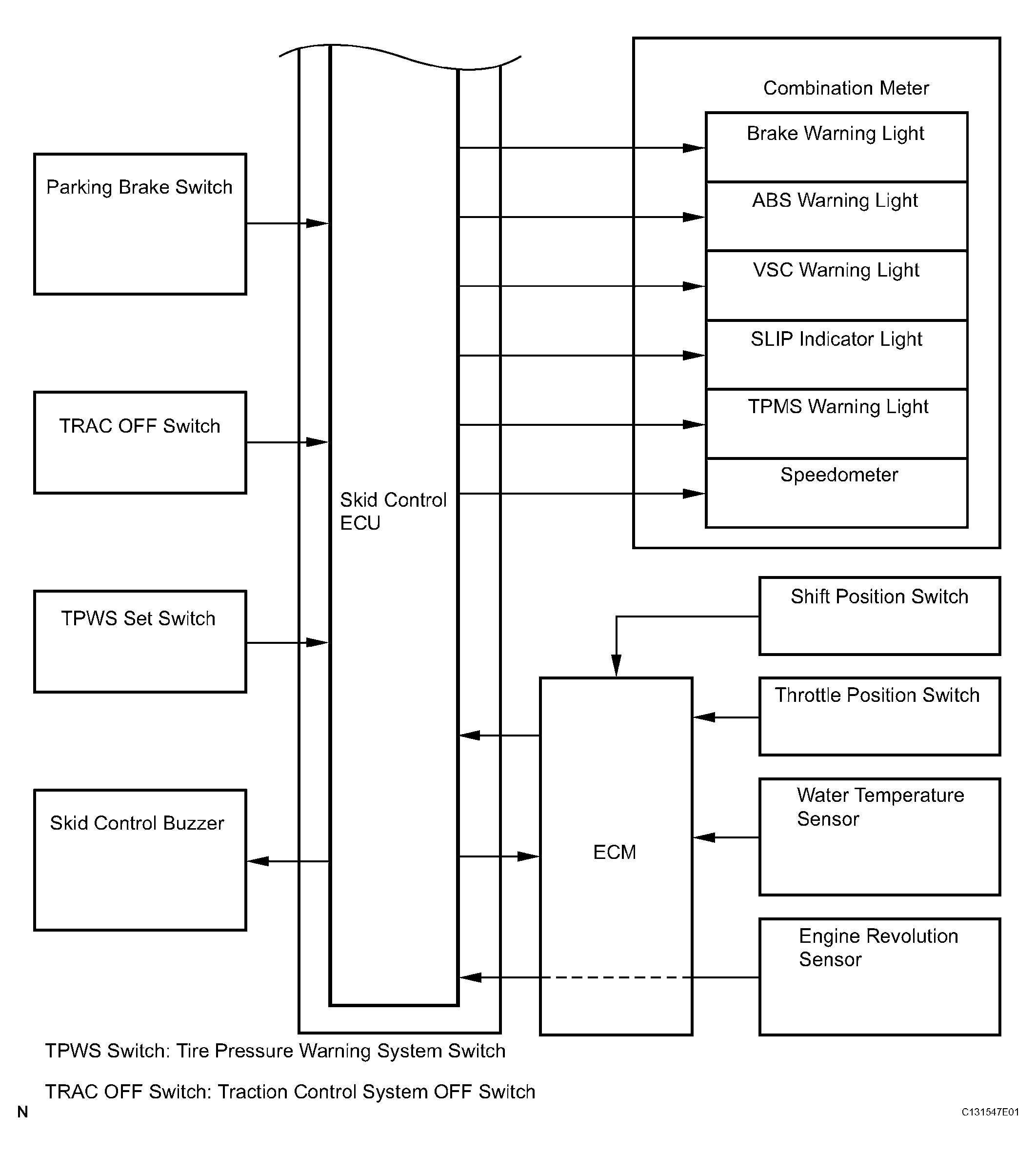

Fig 1: Identifying Vehicle Stability Control System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

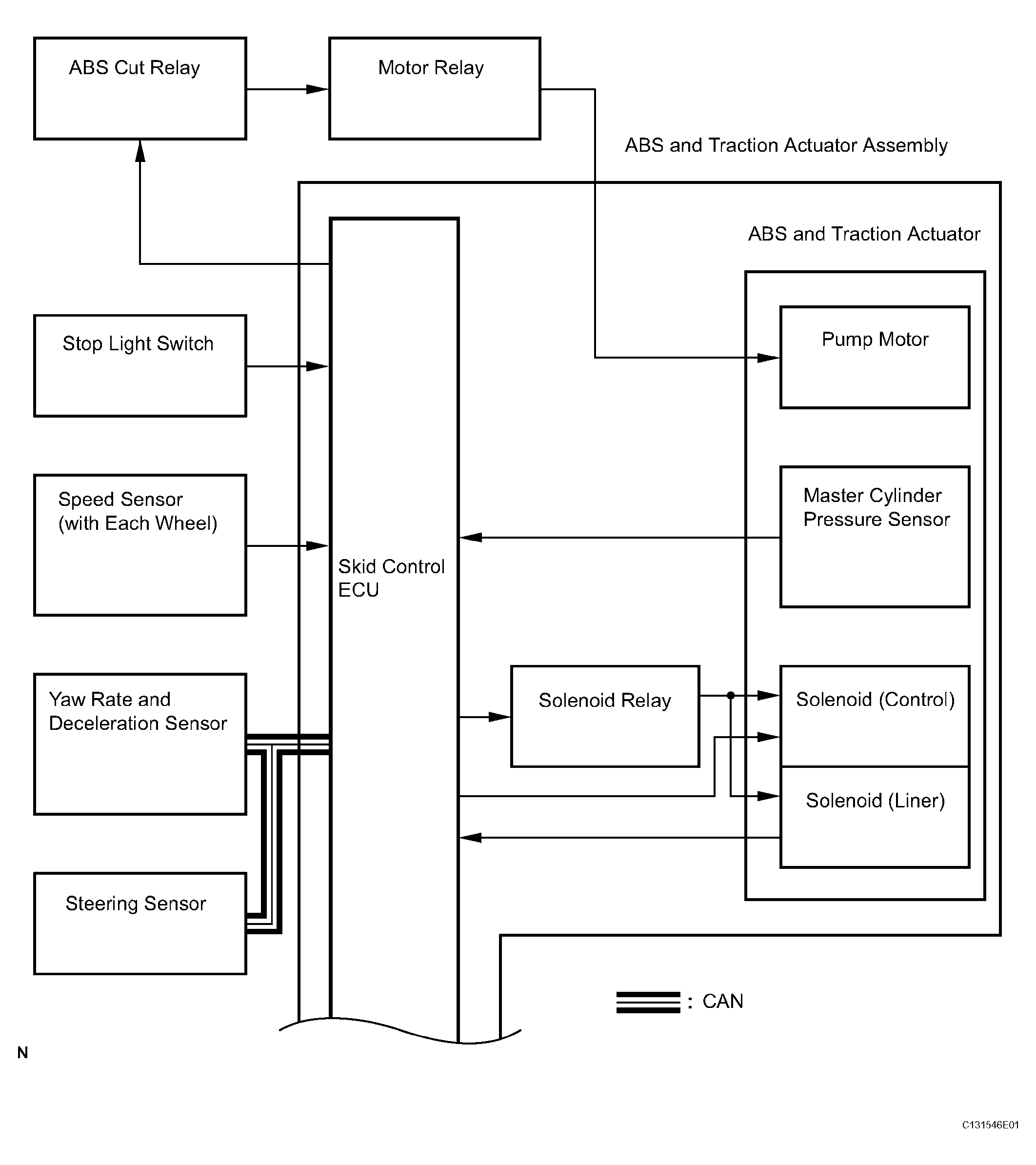

Fig 2: Identifying Vehicle Stability Control System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
