Light Reminder and Key Reminder
›
Notes
Light Reminder and Key Reminder: Notes

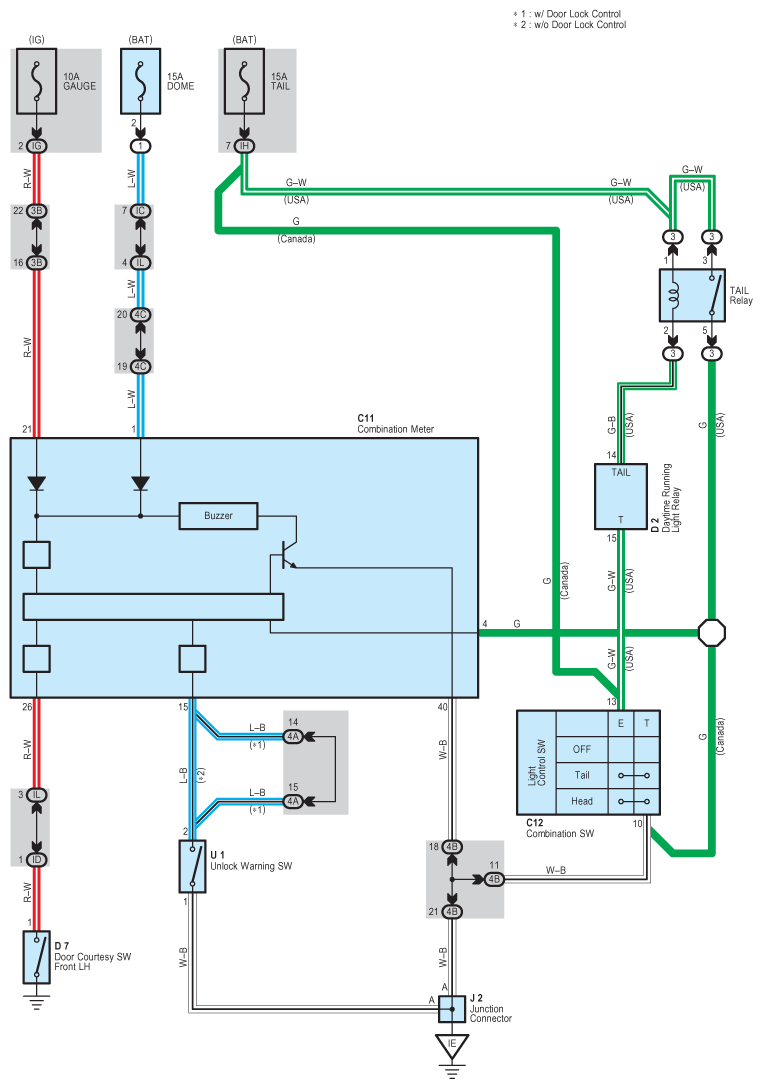

Fig 1: Light Reminder And Key Reminder System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
