Power Outlet for 12V: Notes

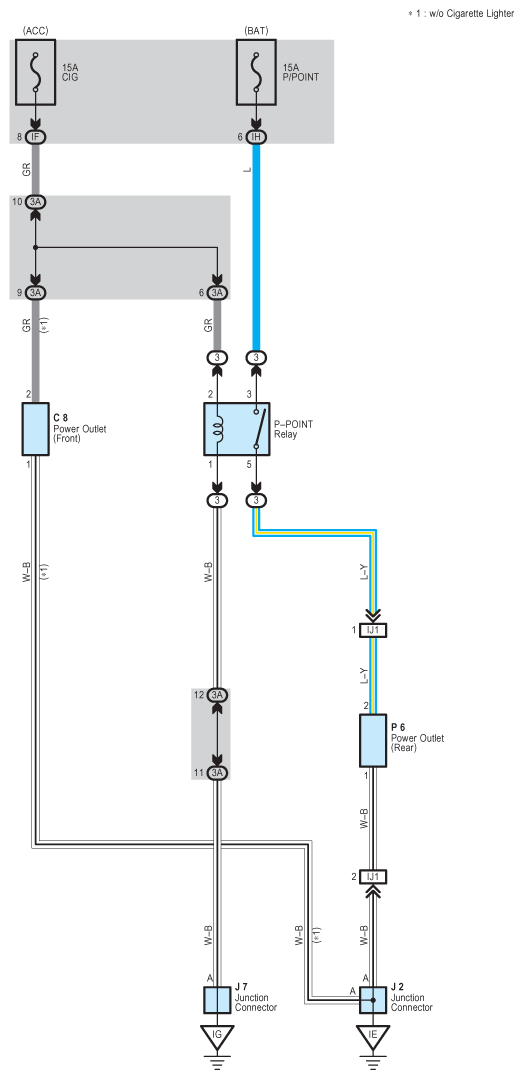

Fig 1: Power Outlet System Wiring Diagram (For 12V)
G08838168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
