Combination Meter: Installation

  1. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connector, then install the combination meter assembly.

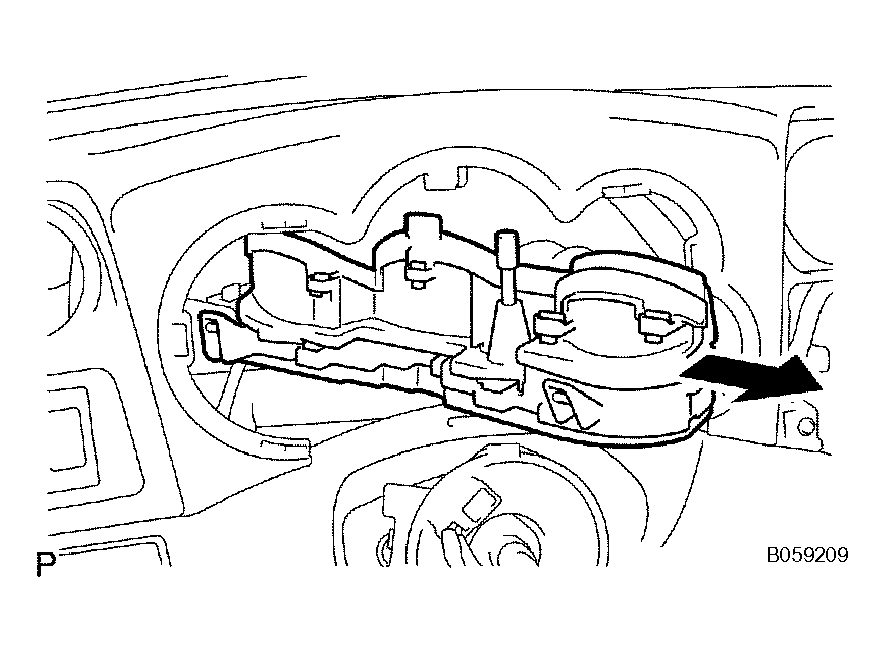

      Fig 1: Installing Combination Meter Assembly
      G04466656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

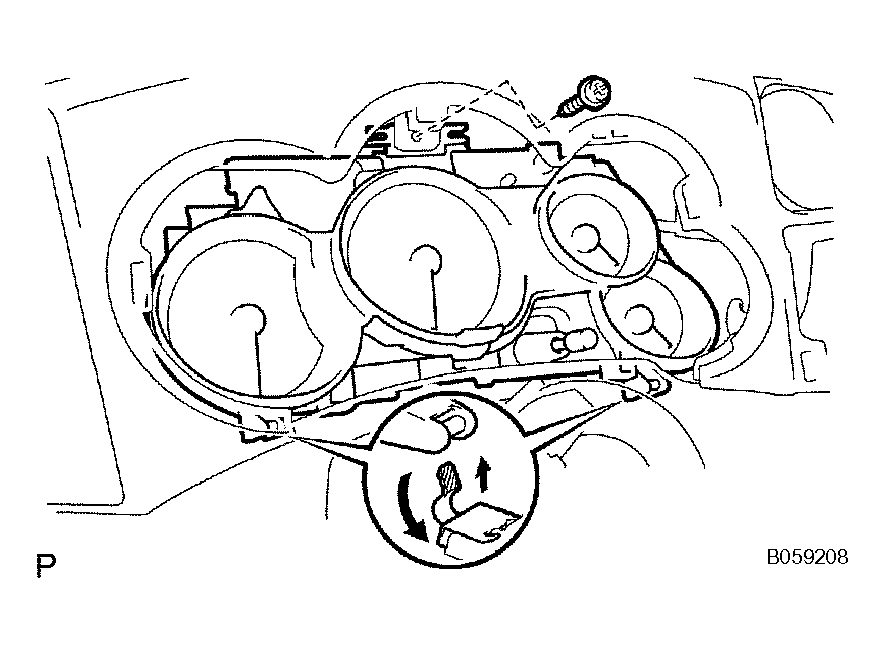

    2. Engage the 2 claws as shown in Fig 2 .
      Fig 2: Engaging Claws
      G04466657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the screw.
