FUEL PUMP (for 4WD): Components

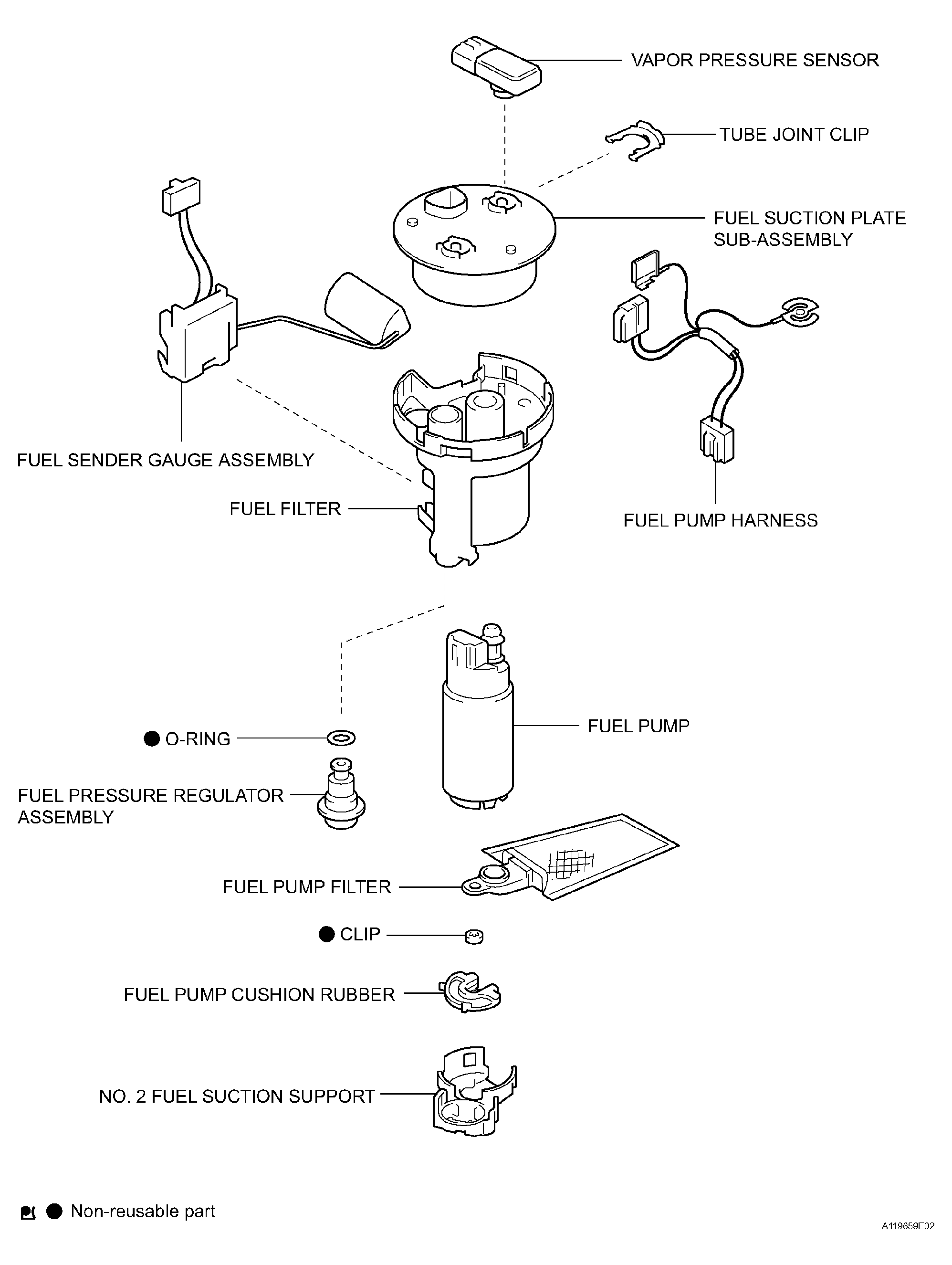

Fig 1: Exploded View Of Fuel Pump Components (For 4WD) With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

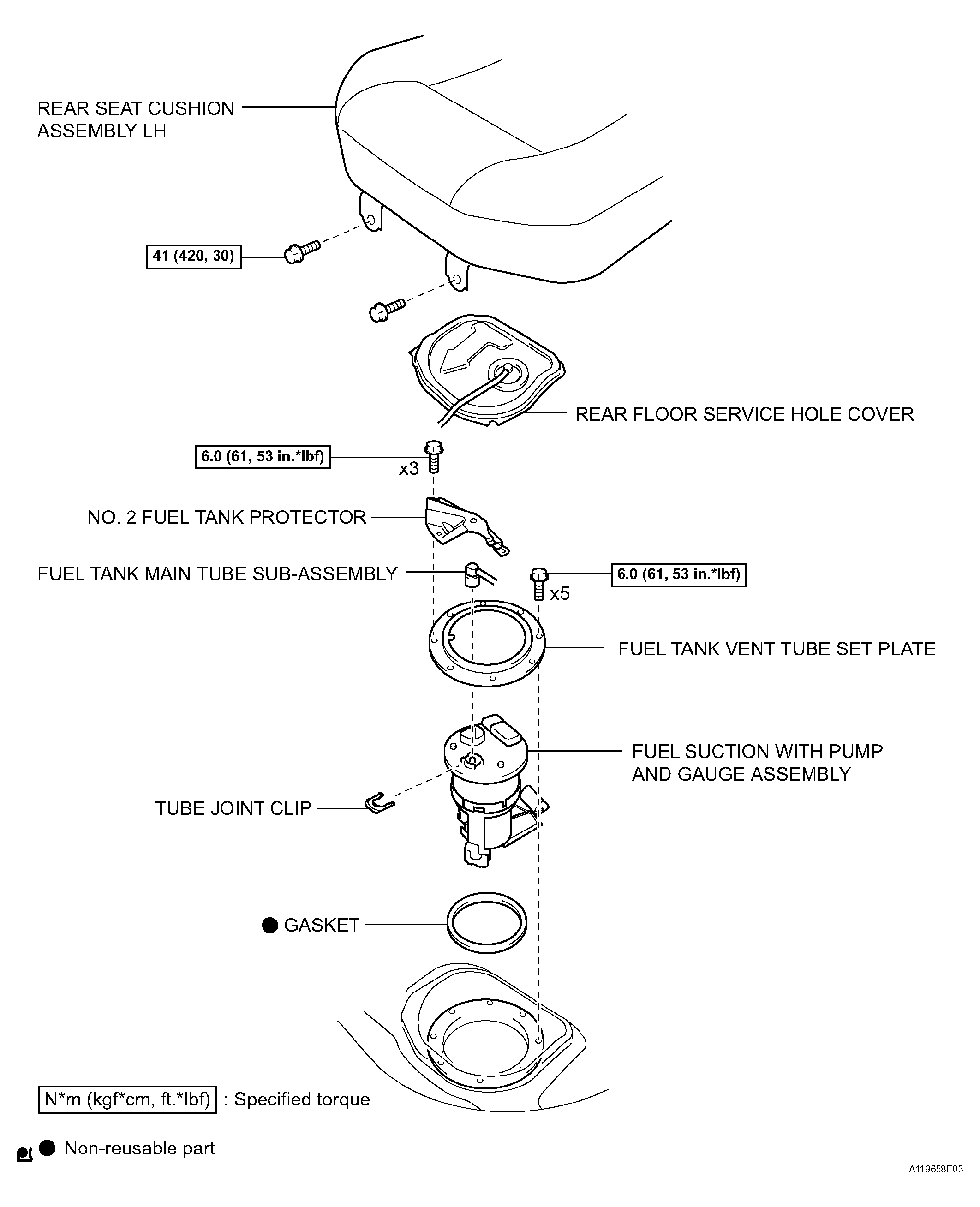

Fig 2: Exploded View Of Fuel Pump Components (For 4WD) With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
