Engine Control System (1ZZ-FE) - SFI System - Component Tests
›
THROTTLE BODY (for 2WD)
›
Components
THROTTLE BODY (for 2WD): Components

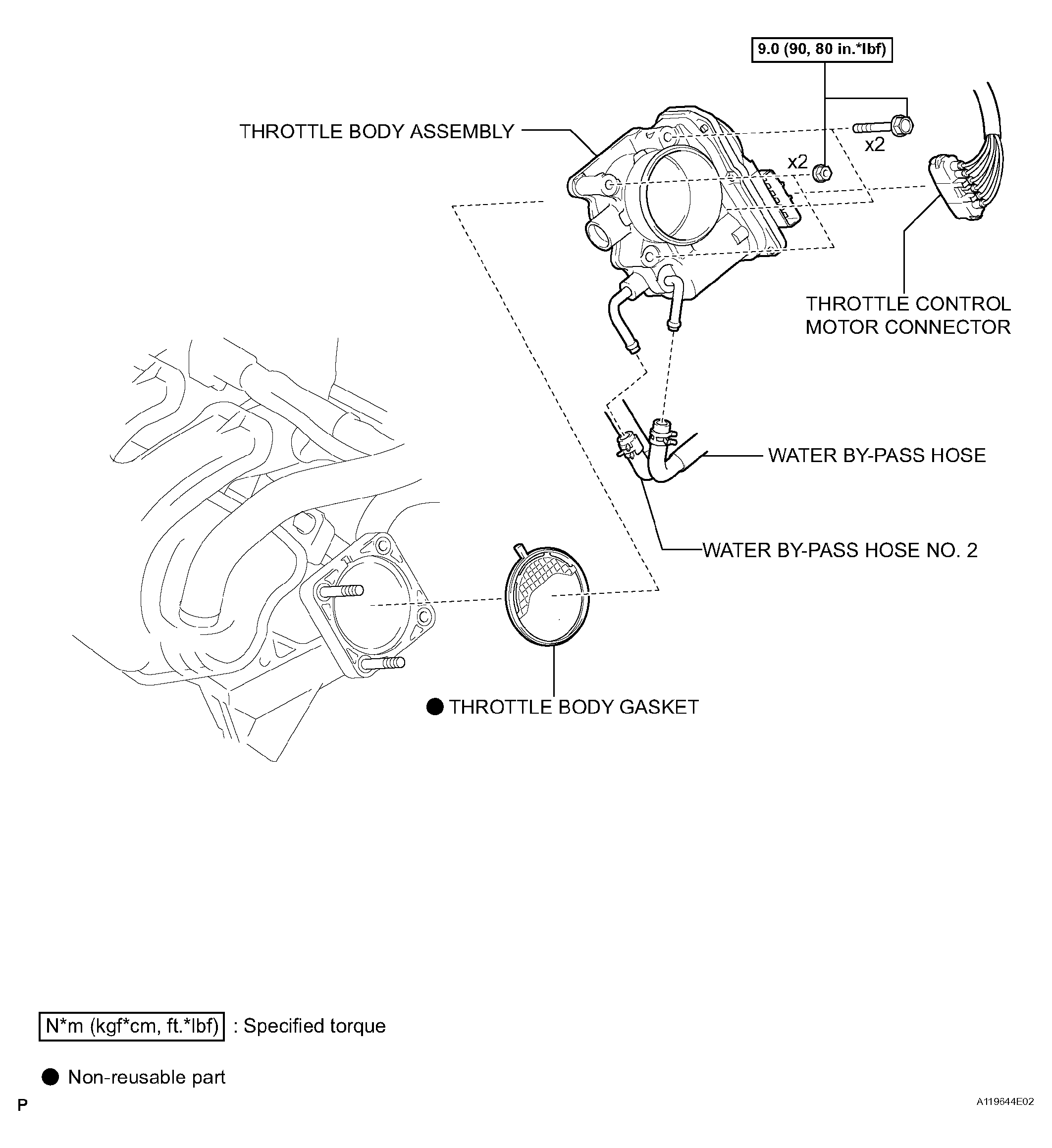

Fig 1: Identifying Throttle Body (2WD) Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Throttle Body (2WD) Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
