Engine Control System (1ZZ-FE) - SFI System - Component Tests
›
THROTTLE BODY (for 4WD)
›
Components
THROTTLE BODY (for 4WD): Components

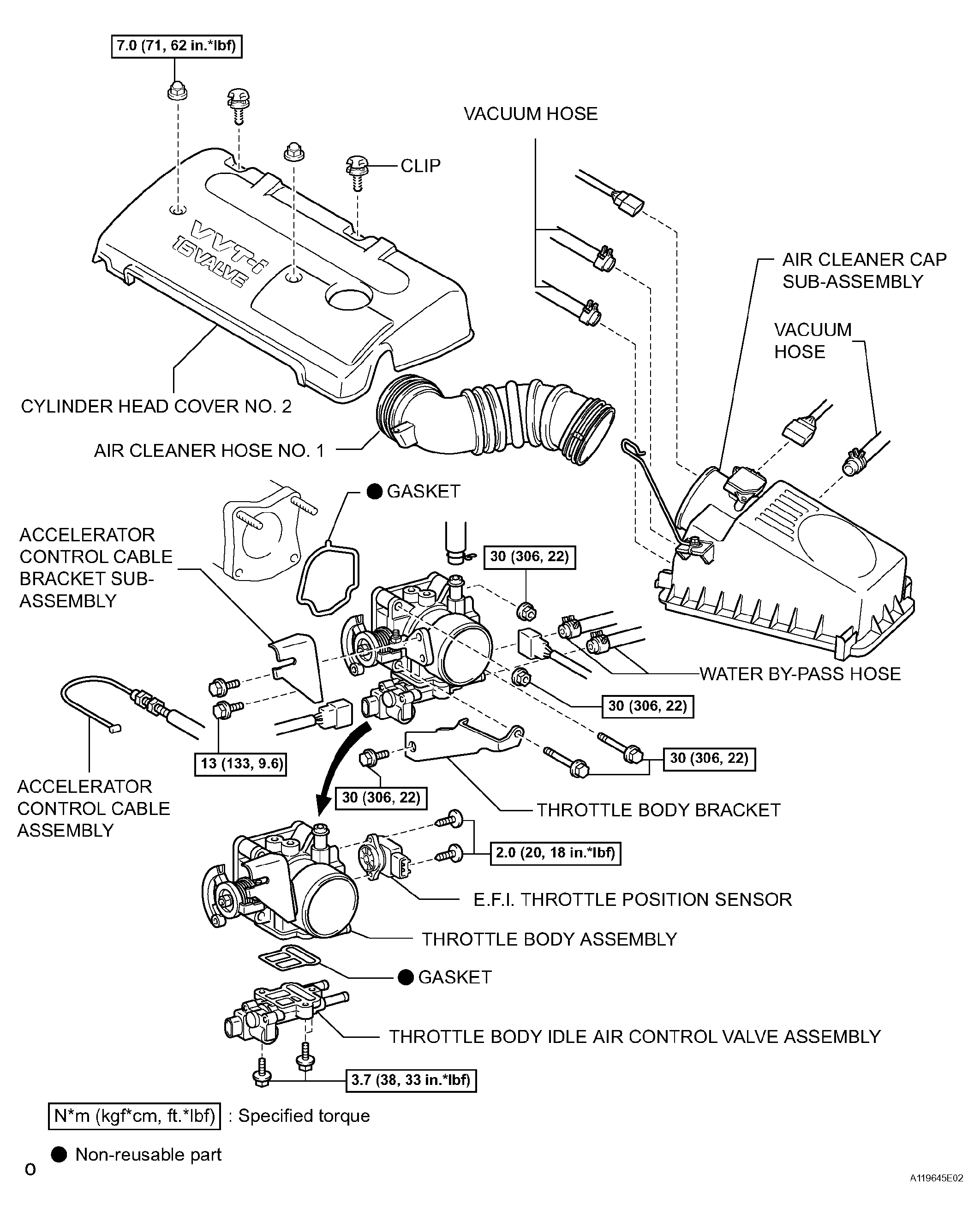

Fig 1: Throttle Body (4WD) Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
