Air Conditioning: Condenser: Disassembly

  1. REMOVE COOLER DRYER
    1. Using a socket hexagon wrench 14mm (0.55 in.), remove the cap from the modulator.

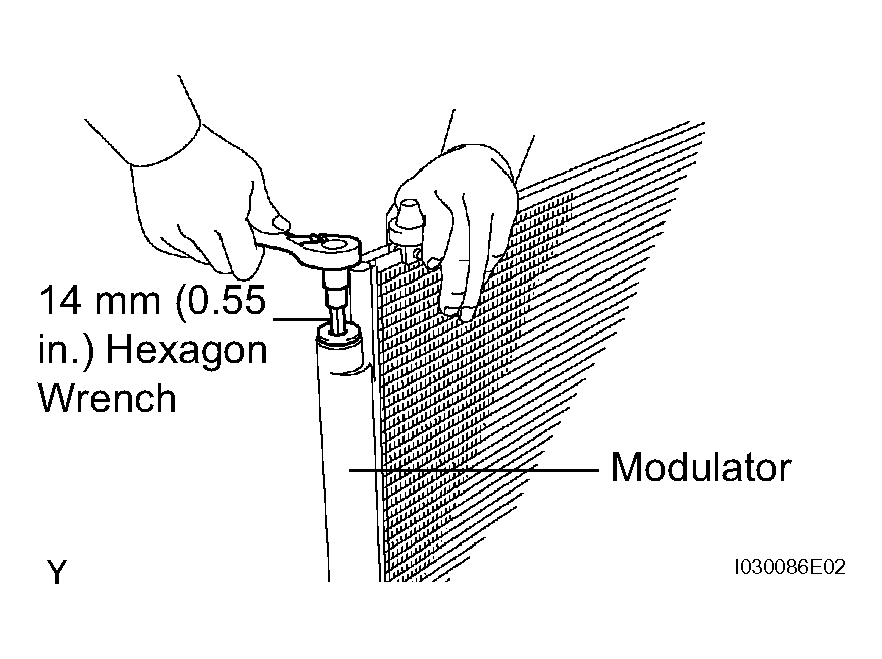

      Fig 1: Removing Cap From Modulator
      G04465818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the cap.
      Fig 2: Removing O-Ring From Cap
      G04465819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using pliers, remove the cooler dryer.
      Fig 3: Removing Cooler Dryer
      G04465820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
