Air Conditioning: Condenser: Removal

DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM (See REPLACEMENT )
DISCONNECT AIR CONDITIONING TUBE ASSEMBLY
1. Remove the bolt and disconnect the cooler refrigerant liquid pipe A from the w/receiver condenser assembly.
2. Remove the O-ring from the cooler refrigerant liquid pipe A.
  NOTE: Seal the opening of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.

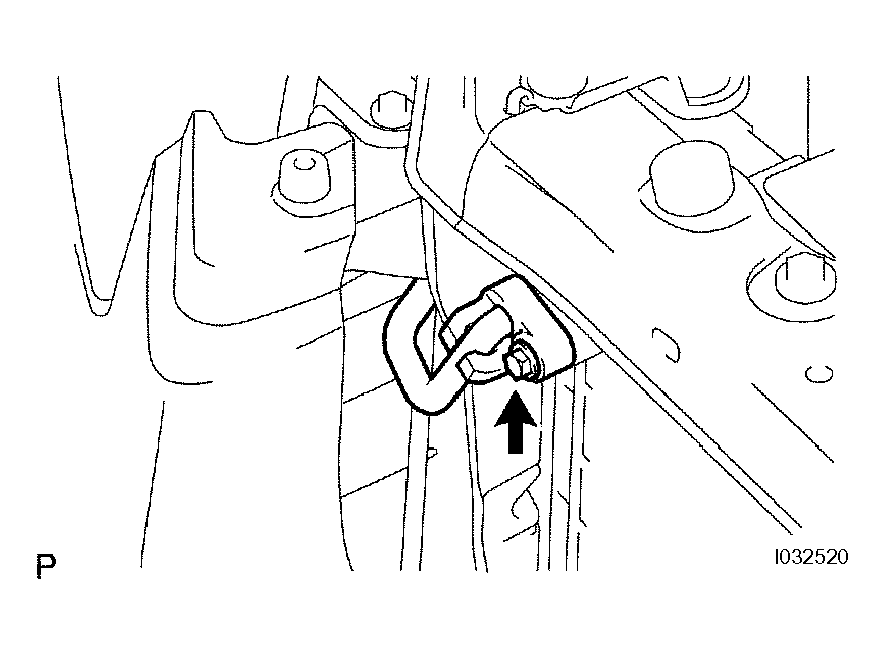

  Fig 1: Disconnecting Air Conditioning Tube Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
1. Remove the bolt and discharge hose sub-assembly from the w/receiver condenser assembly.
2. Remove the O-ring from the discharge hose sub-assembly.
  NOTE: Seal the opening of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.

  Fig 2: Disconnecting Discharge Hose Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE W/RECEIVER CONDENSER ASSEMBLY
1. Remove the 2 bolts and 2 radiator upper supports.

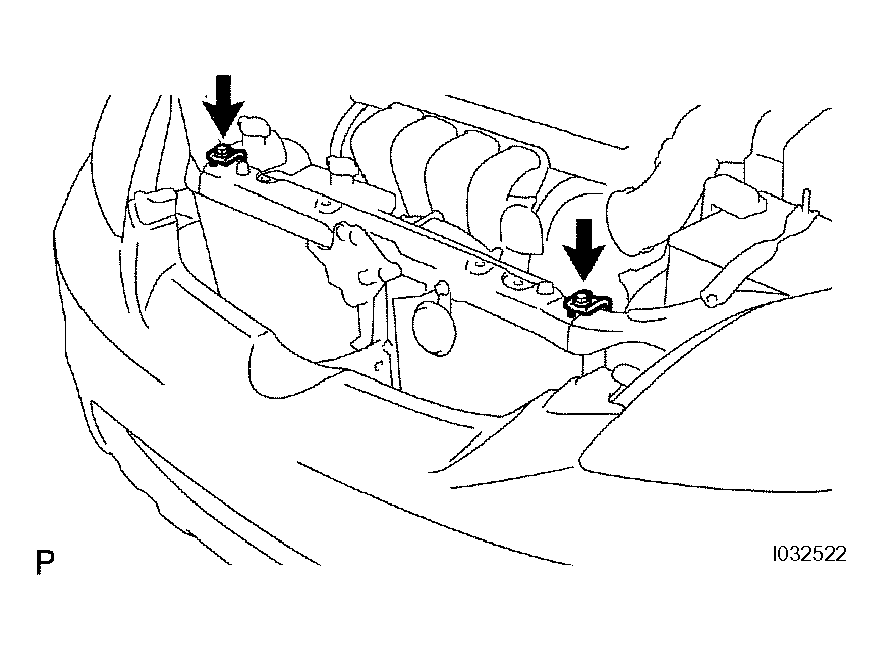

  Fig 3: Removing Radiator Upper Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts.
3. Slide the upper part of the radiator assembly rearward to remove the w/receiver condenser assembly.

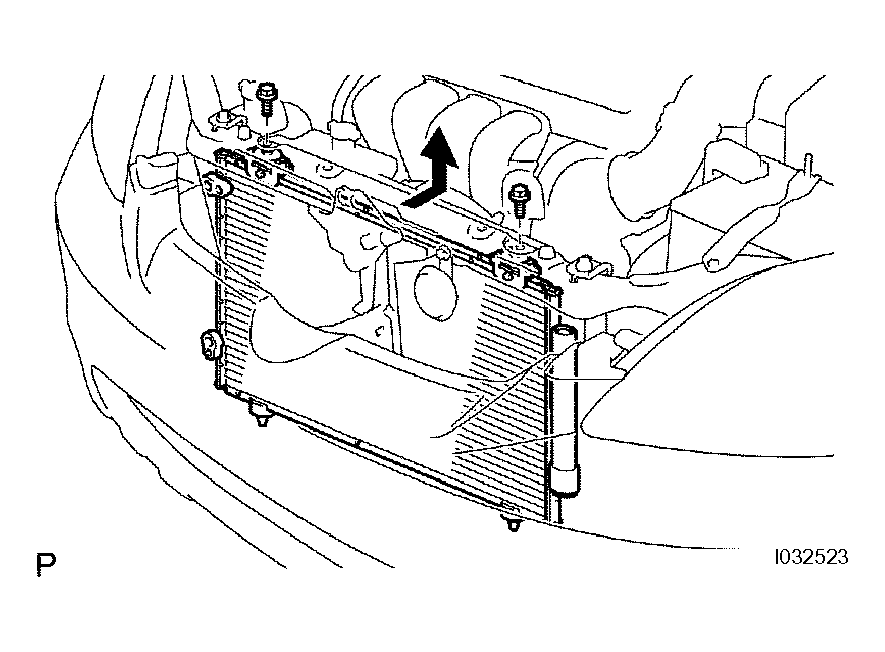

  Fig 4: Removing W/Receiver Condenser Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
