REAR AXLE BEAM (for 2WD): Disassembly

REMOVE REAR AXLE CARRIER BUSH LH
1. Make matchmarks on the 2 notches of the bushing and axle beam.
2. Using a chisel and a hammer, bend the 2 portions of the bushing rib.
  HINT:

  Bend the bushing rib until the claw of SST can be hung.
3. Using SST, remove the bushing from the axle beam.
  SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04051, 09957-04010, 09958-04011), 09950-60010 (09951-00630)

  NOTE: If the rear axle beam assembly has been scratched, apply the paint.

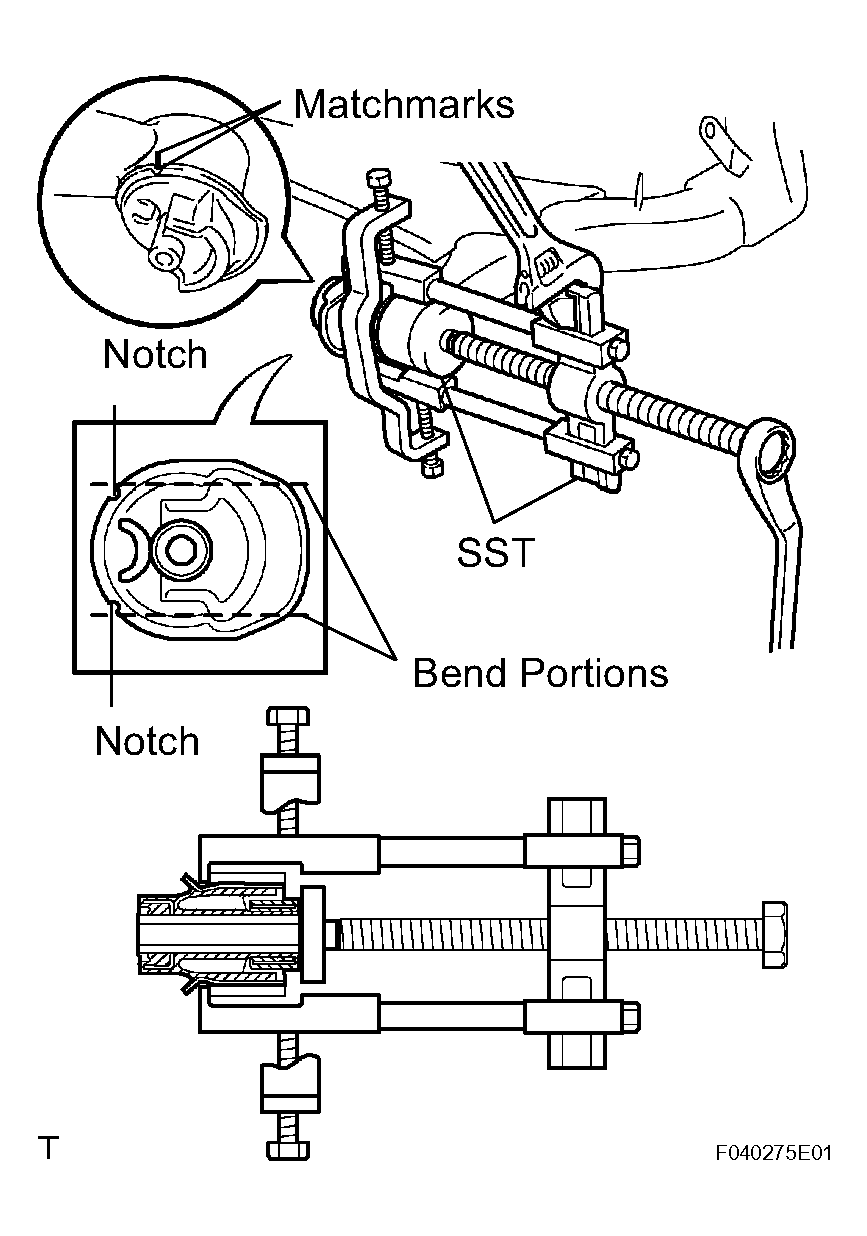

  Fig 1: Removing Bushing From Axle Beam
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
