REAR AXLE BEAM (for 2WD): Installation

TEMPORARILY TIGHTEN REAR AXLE BEAM ASSEMBLY
1. Support the rear axle beam assembly with jack.
2. Install the rear axle beam assembly and 2 bolts, temporarily tighten the 2 nuts.

  Fig 1: Installing Rear Axle Beam Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEMPORARILY TIGHTEN REAR SHOCK ABSORBER WITH COIL SPRING
1. Install the rear shock absorber with coil spring and rear shock absorber LH cushion retainer, temporarily tighten the nut.
2. Using the same manner described above to the other side.

  Fig 2: Installing Rear Shock Absorber With Coil Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

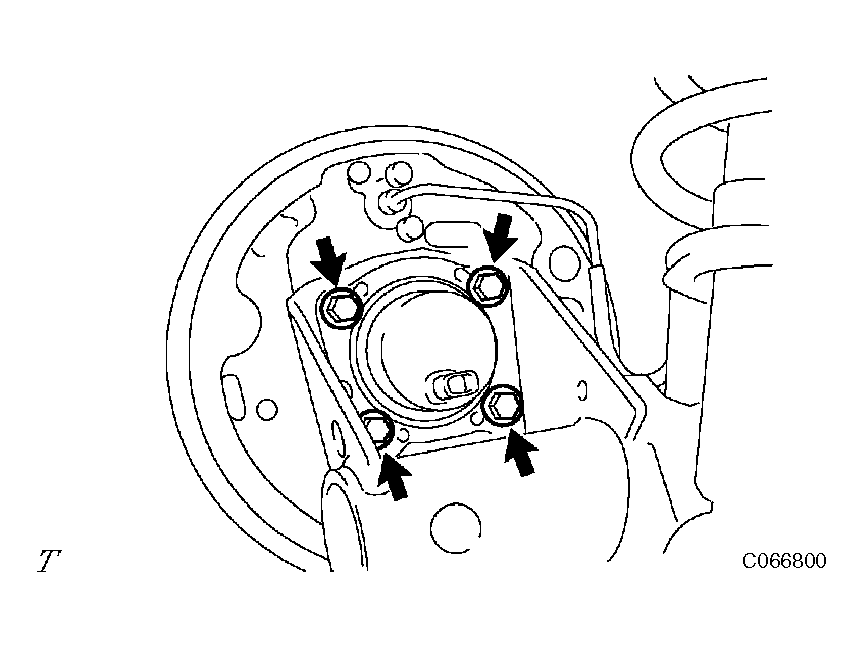

INSTALL REAR AXLE HUB & BEARING ASSEMBLY LH
1. Install the rear axle hub with the 4 bolts.
  Torque: 61 N*m (622 kgf*cm, 45 ft.*lbf)
INSTALL REAR AXLE HUB & BEARING ASSEMBLY RH
HINT:

Install the RH side by the same procedures as the LH side.

Fig 3: Installing Rear Axle Hub With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT REAR BRAKE TUBE NO. 4 (for Drum Type)
1. Temporarily tighten the rear brake tube No. 4 and flexible hose.
2. Connect the rear brake tube No. 4 with the clip to the rear axle beam assembly.

  Fig 4: Connecting Rear Brake Tube No. 4 With Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

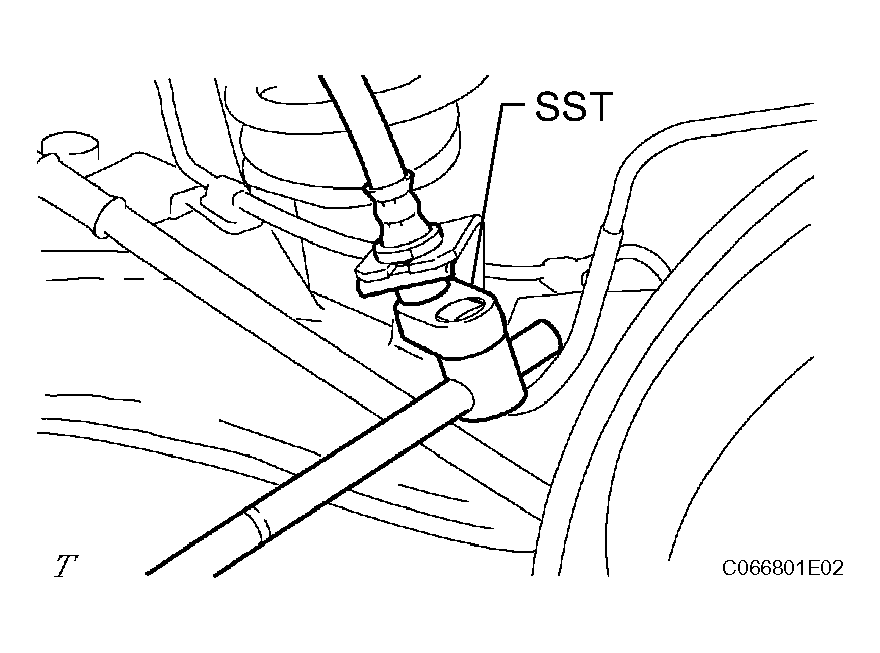

3. Using SST, fully tighten the rear brake tube No. 4.
  SST 09023-00101

  Torque: 15.2 N*m (155 kgf*cm, 11 ft.*lbf)
CONNECT REAR BRAKE TUBE NO. 3 (for Drum Type)
SST 09023-00101

HINT:

Connect the RH side by the same procedures as the LH side.

Fig 5: Connecting Rear Brake Tube No. 3 (Drum Type)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STABILIZER BAR REAR (See REMOVAL )
CONNECT PARKING BRAKE CABLE ASSEMBLY NO. 3
1. Connect the parking brake cable No. 3 with the bolt.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
CONNECT PARKING BRAKE CABLE ASSEMBLY NO. 2
1. Connect the parking brake cable No. 2 with the bolt.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

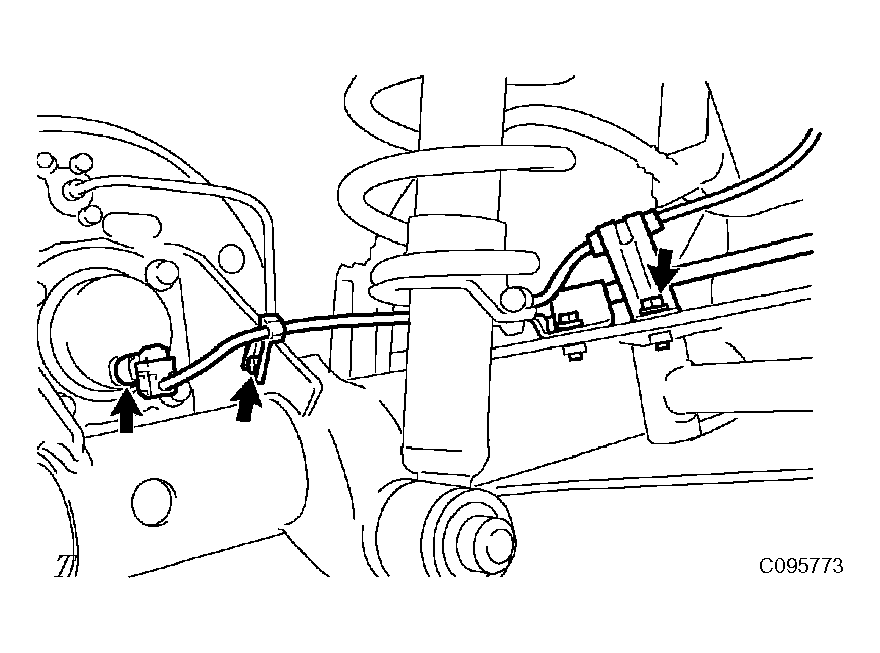

CONNECT SKID CONTROL SENSOR WIRE (w/ ABS)
1. Connect the skid control sensor wire with the bolt and clip.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
2. Connect the skid control sensor connector.
3. Use the same manner described above to the other side.

  Fig 6: Connecting Skid Control Sensor Wire With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DISC (for Disc Type)
HINT:

Use the same manner described above to the other side.
INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH (for Disc Type) (See REASSEMBLY )
INSTALL REAR DISC BRAKE CALIPER ASSEMBLY RH (for Disc Type)
INSTALL REAR BRAKE DRUM SUB-ASSEMBLY (for Drum Type)
HINT:

Use the same manner described above to the other side.
STABILIZE SUSPENSION
1. Install the rear wheel and jack down the vehicle.
  Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
2. Bounce the vehicle up and down several times to stabilize the suspension.
FULLY TIGHTEN REAR AXLE BEAM ASSEMBLY
1. Fully tighten the bolt.
  Torque: 85 N*m (867 kgf*cm, 63 ft.*lbf)
2. Using the same manner described above to the other side.

  Fig 7: Tightening Rear Axle Beam Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FULLY TIGHTEN REAR SHOCK ABSORBER WITH COIL SPRING
1. Fully tighten the nut.
  Torque: 80 N*m (816 kgf*cm, 59 ft.*lbf)
2. Using the same manner described above to the other side.
BLEED BRAKE LINE (See BLEEDING )
INSPECT BRAKE FLUID (See BLEEDING )
INSPECT REAR WHEEL ALIGNMENT
HINT:

See ADJUSTMENT

Fig 8: Tightening Rear Shock Absorber With Coil Spring Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK ABS SPEED SENSOR SIGNAL (w/ ABS)
1. Anti-lock Brake System: See TEST MODE PROCEDURE
2. Vehicle Stability Control System: See TEST MODE PROCEDURE
