Differential Case: Components

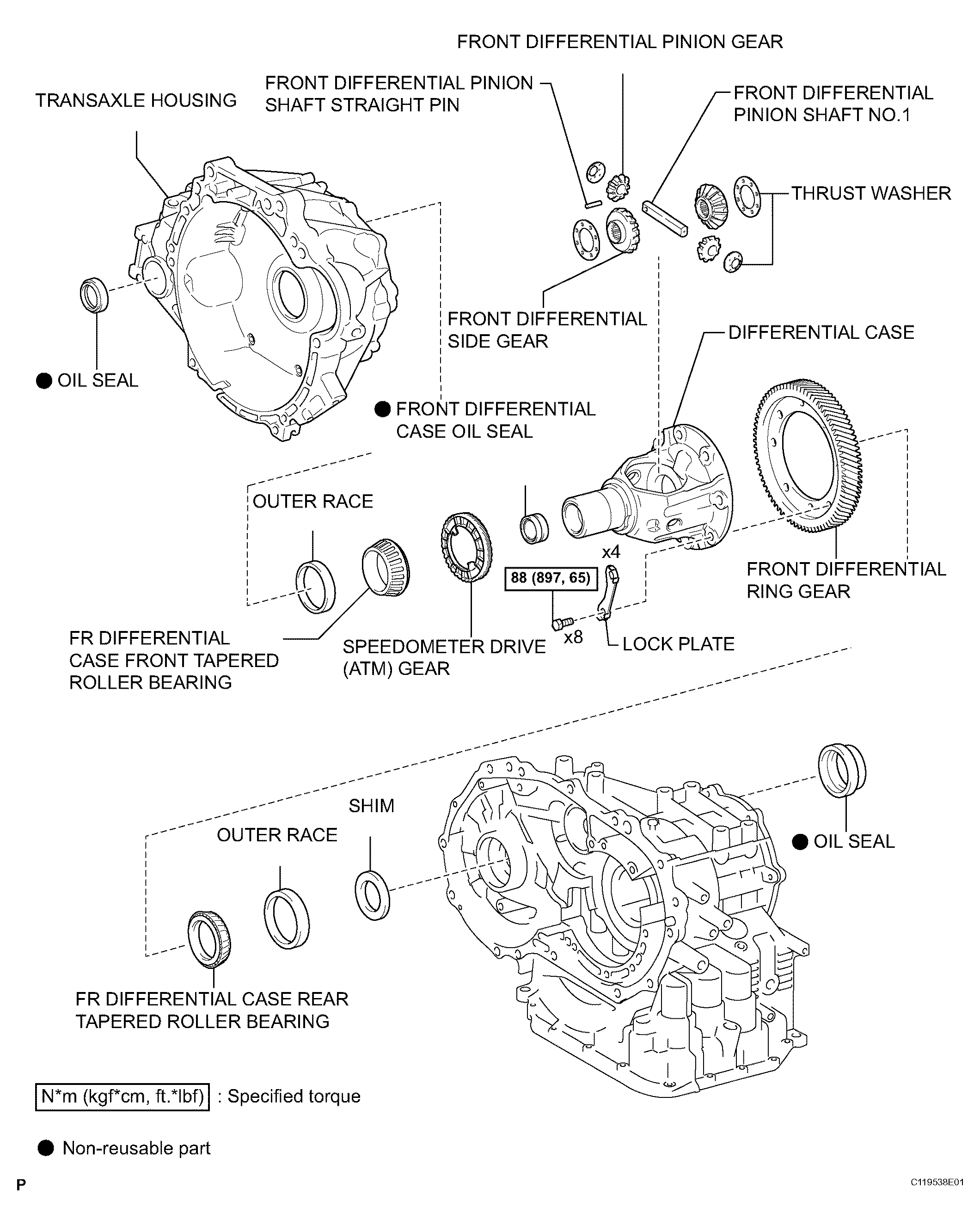

Fig 1: Identifying Differential Case Components

G04463741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
