Home › Toyota › 2006 › Matrix Base, 4WD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission - U341F › Second Brake Piston › Components

Second Brake Piston: Components

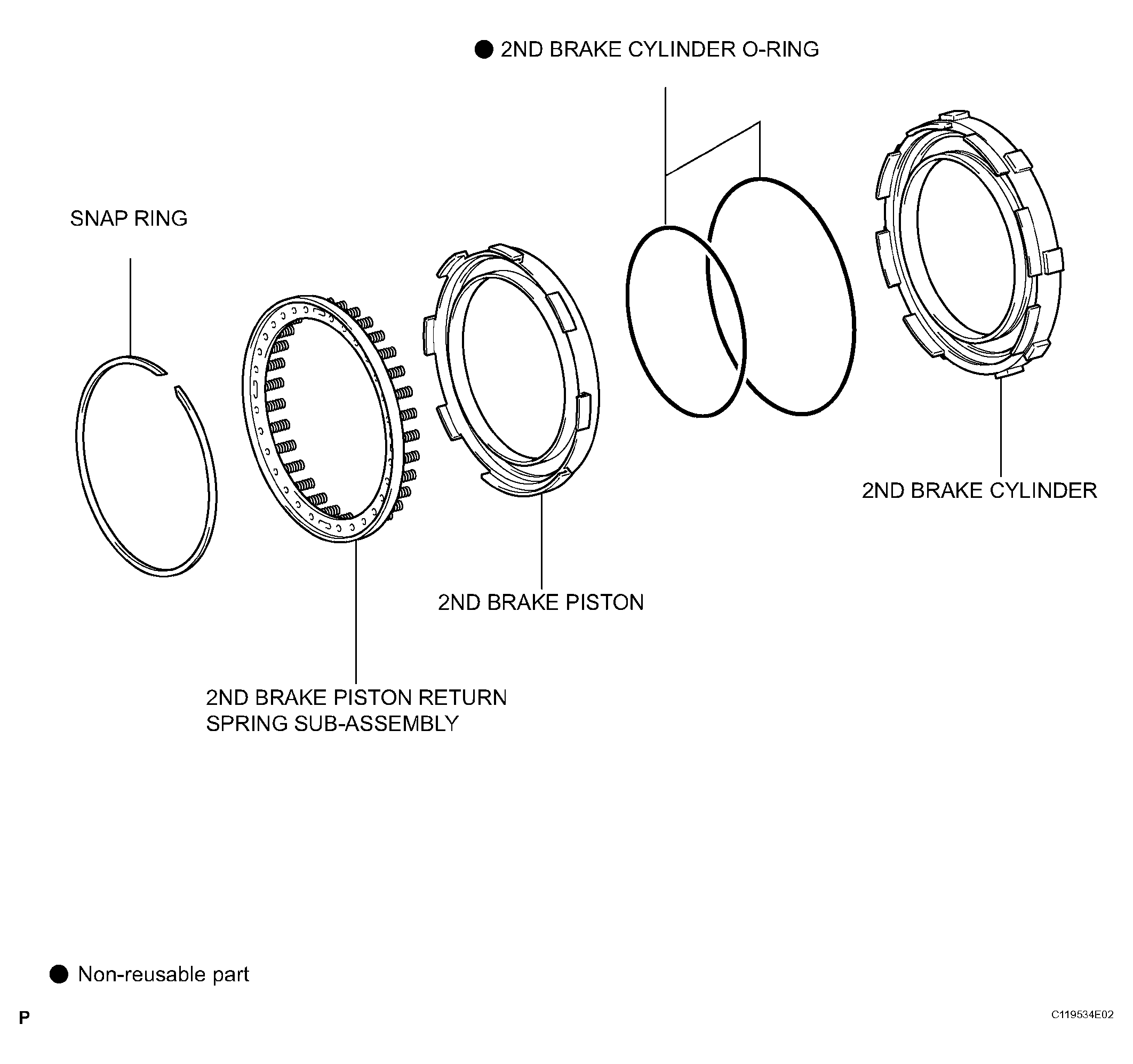

Fig 1: Identifying Second Brake Piston Components
G04463695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
