Transmission Wire: Removal

  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    HINT:

    (See REMOVAL  )

  2. REMOVE TRANSMISSION WIRE
    1. Remove the bolt and transmission wire.

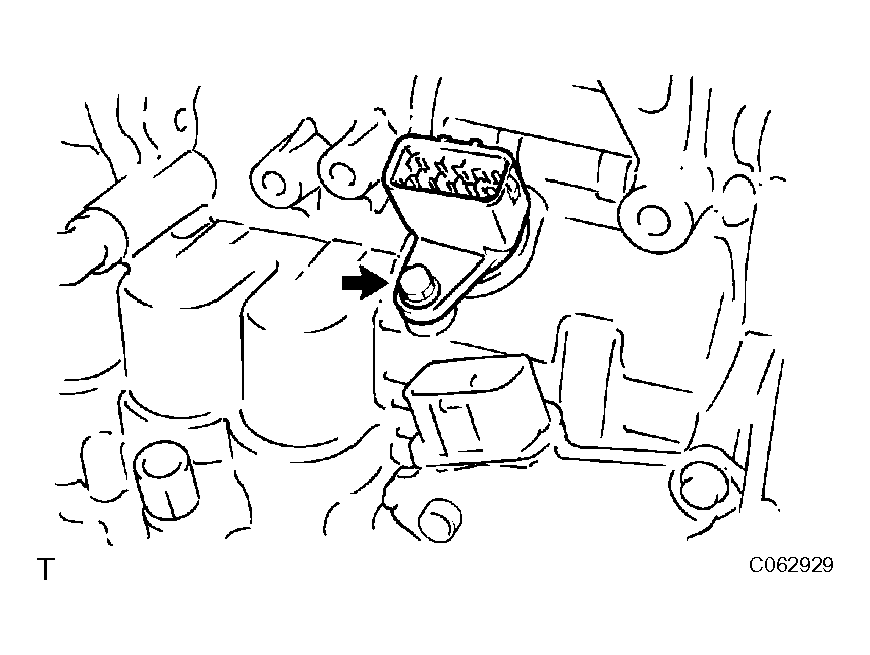

      Fig 1: Removing Bolt And Transmission Wire
      G04463311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
