Moon Roof: Notes

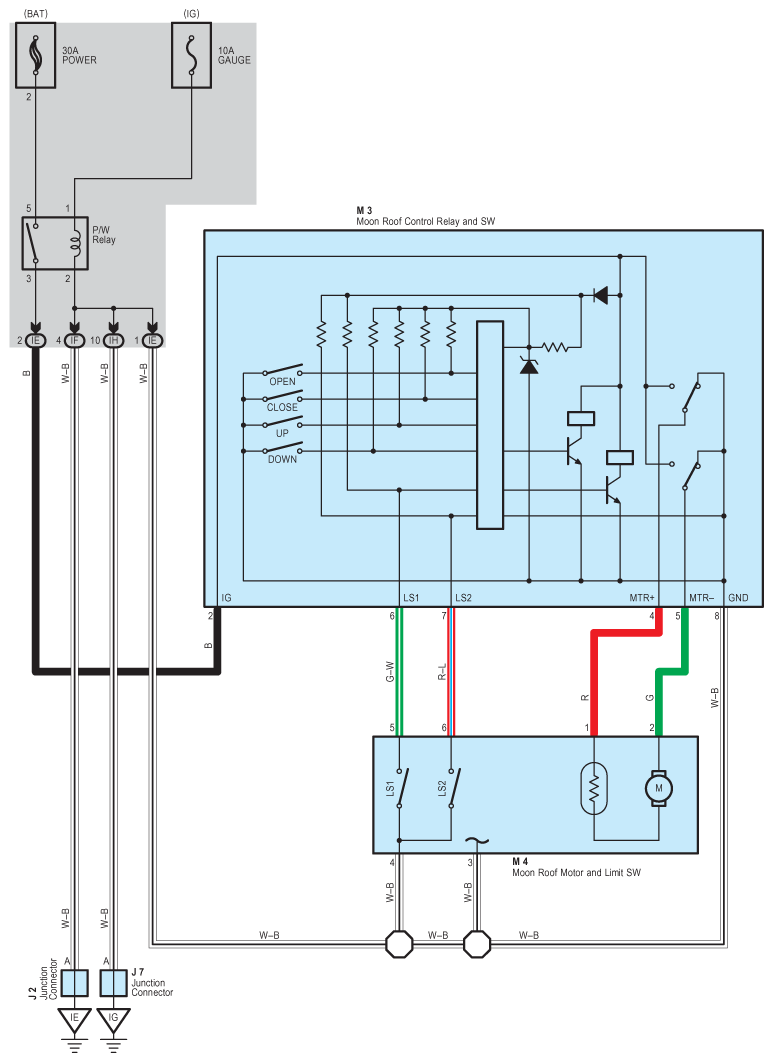

Fig 1: Moon Roof System Wiring Diagram

G08838189

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
