Shift Lock: Notes

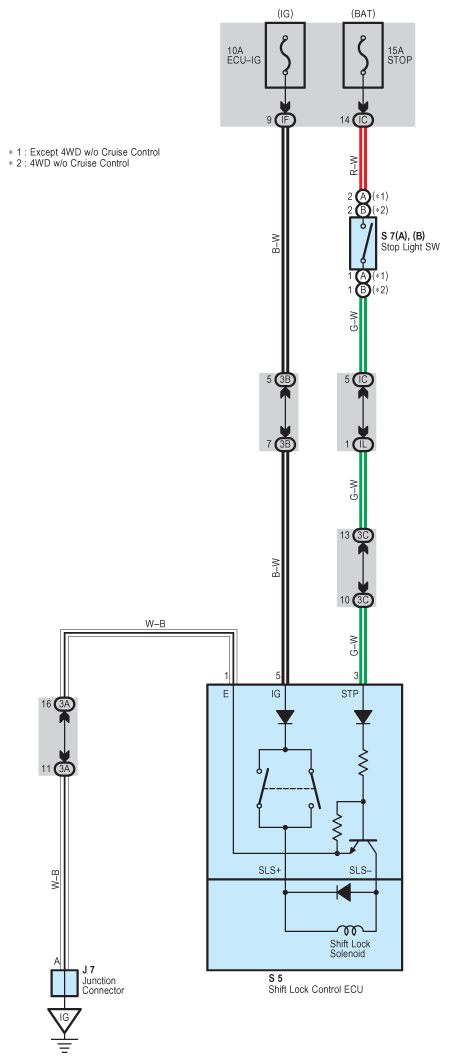

Fig 1: Shift Lock System Wiring Diagram
G08838212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
