Engine Control System (1ZZ-FE) - SFI System (For 4WD) - Introduction, System & Circuit Checks
›
Stop Light Switch Circuit
›
Wiring Diagram
Stop Light Switch Circuit: Wiring Diagram

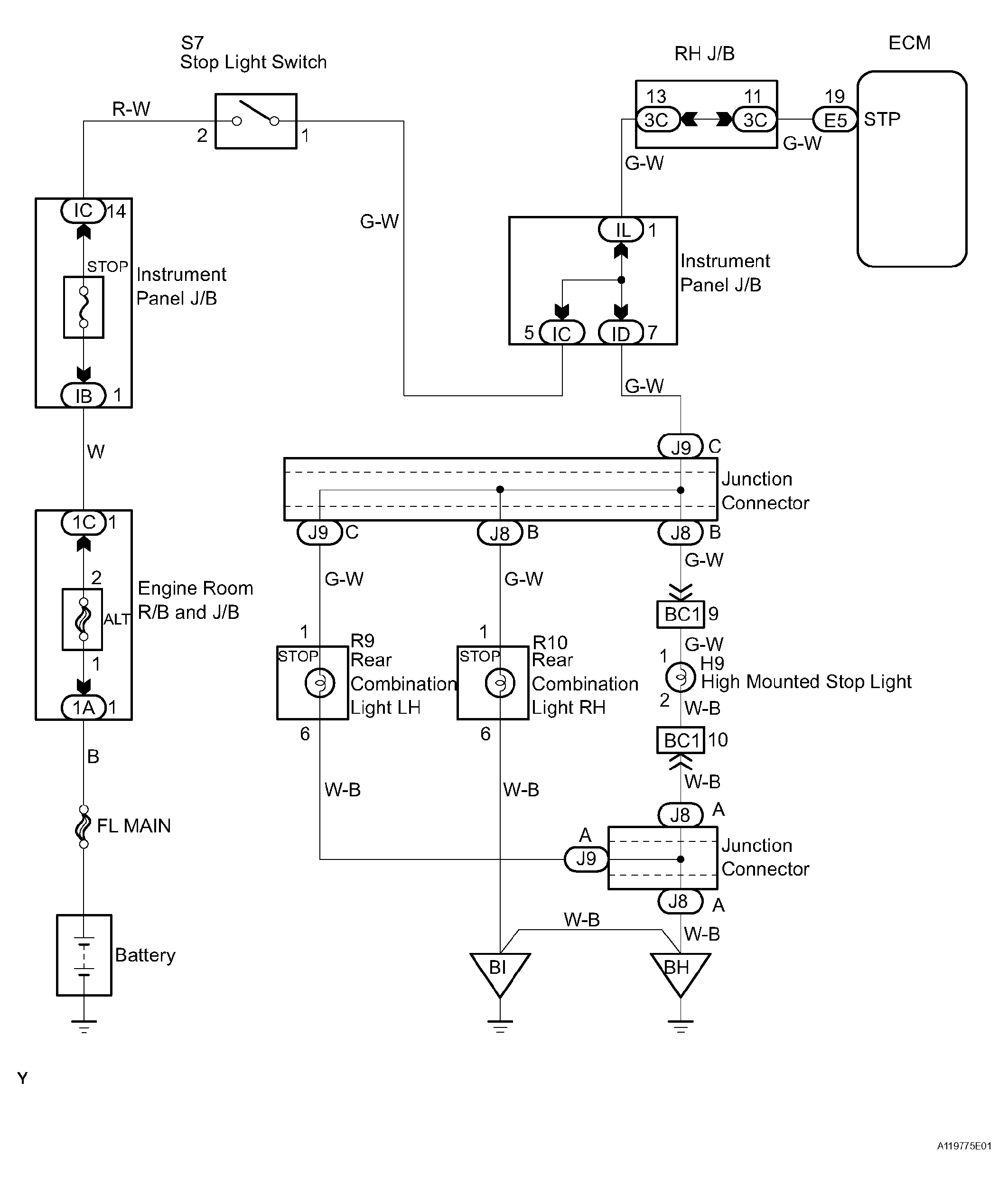

Fig 1: Stop Light Switch Circuit - Wiring Diagram
