Front Seat Outer Belt Assembly With PRETENSIONER
›
Components
Front Seat Outer Belt Assembly With PRETENSIONER: Components

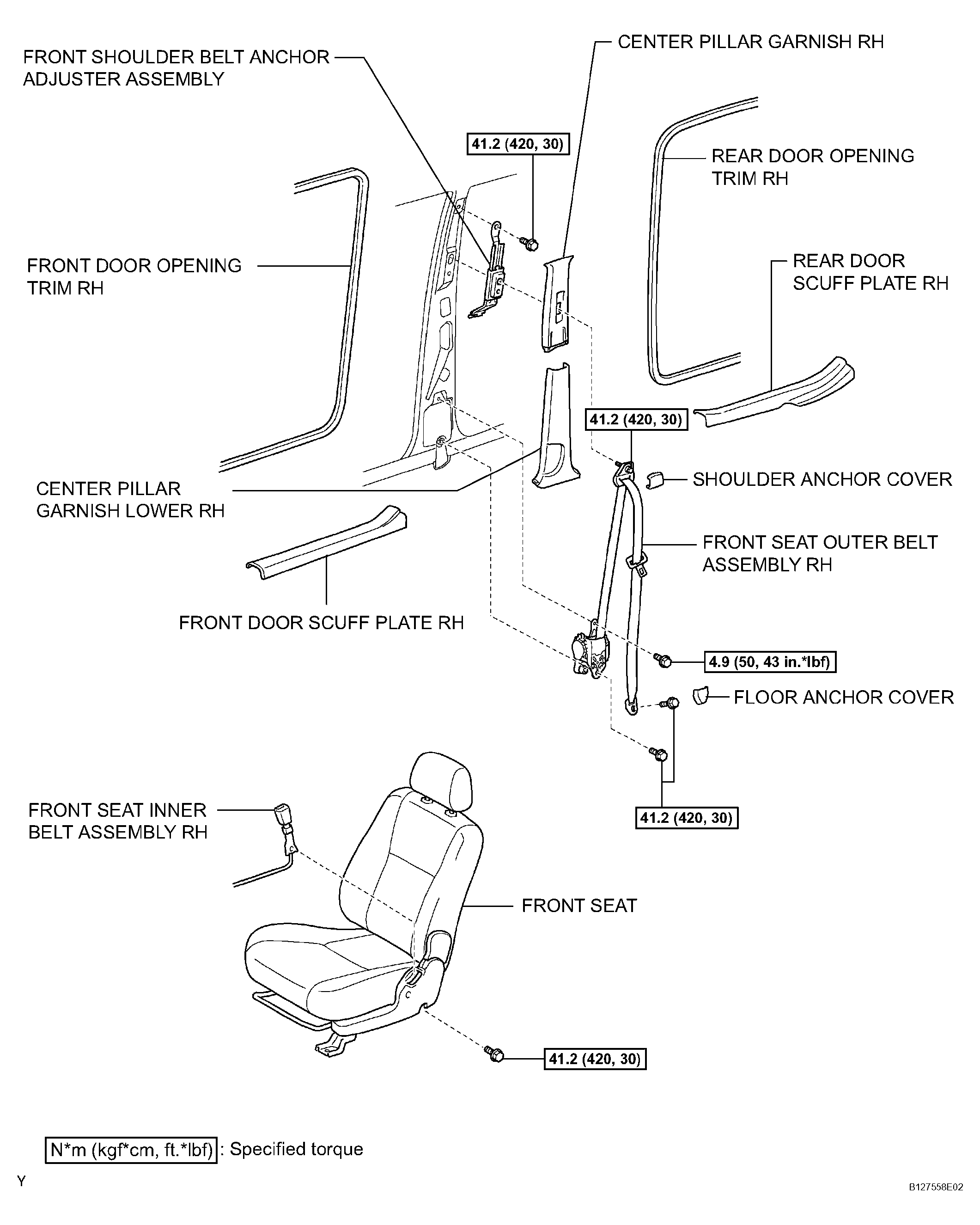

Fig 1: Identifying Front Seat Outer Belt Assembly Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
