Direct Clutch: Components

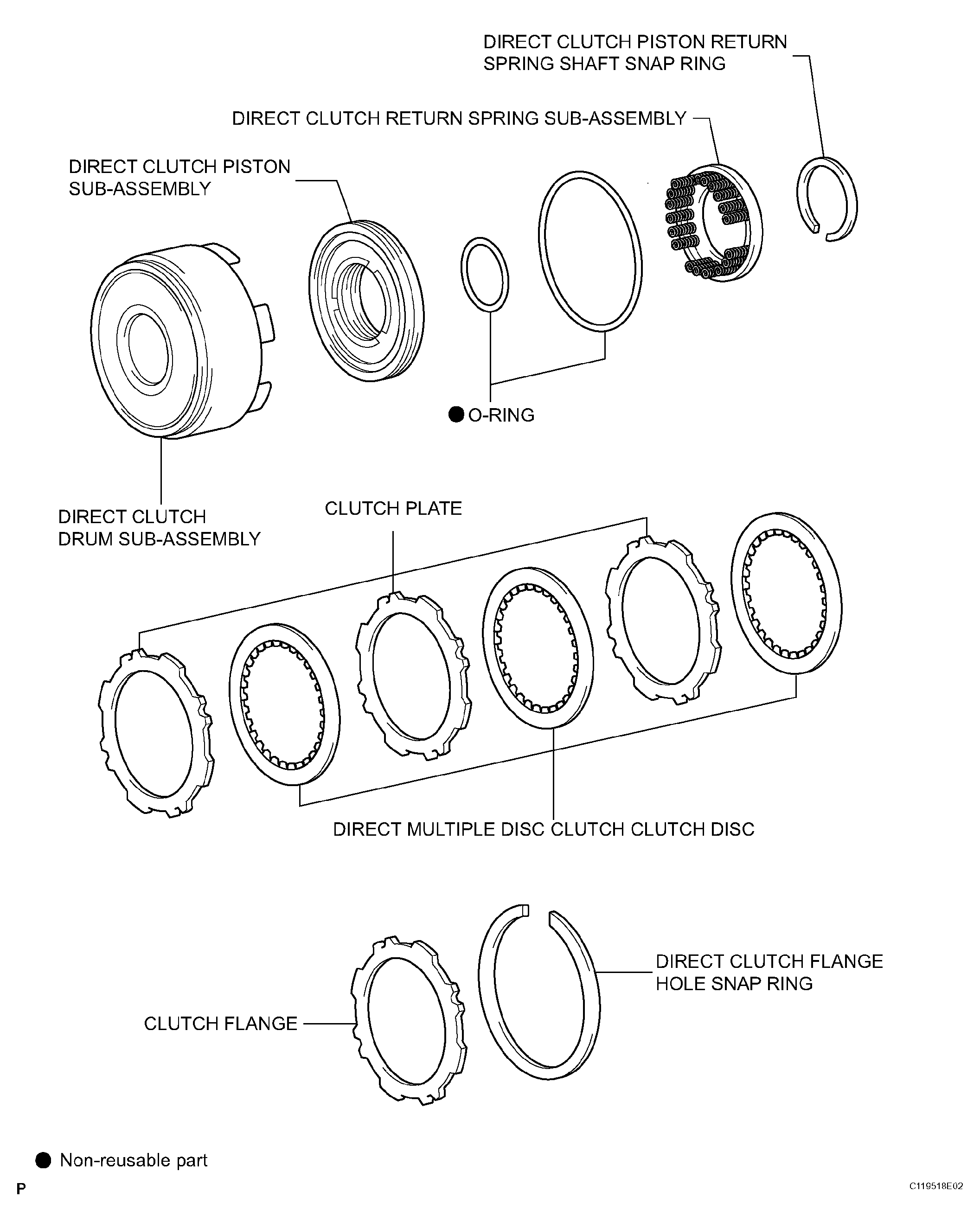

Fig 1: Exploded View Of Direct Clutch Components

G04463132

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
