Floor Shift Assembly: Installation

INSTALL FLOOR SHIFT ASSEMBLY
1. Install the floor shift assembly with the 4 nuts.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  HINT:

  Tighten them in the order, A, B, C and D.

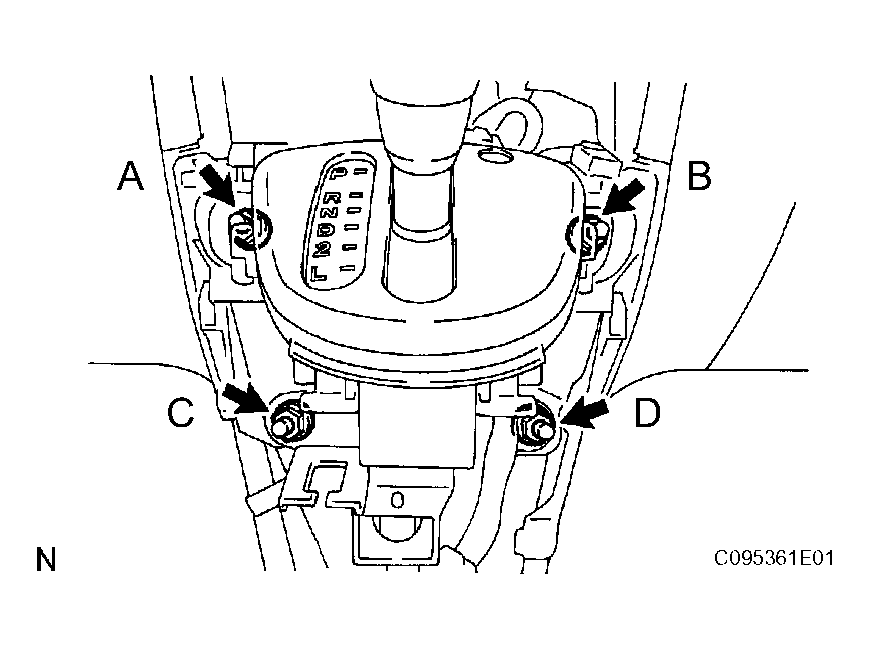

  Fig 1: Installing Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the shift lock control ECU connector and indicator light wire connector.
3. Connect the wire harness clamp.

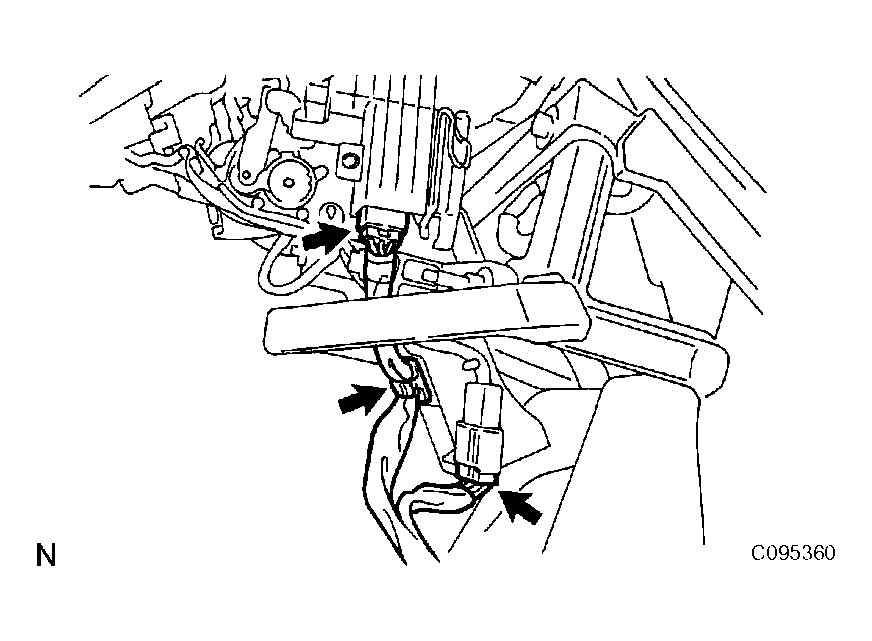

  Fig 2: Connecting Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
1. Install the control cable to the shift lever plate.

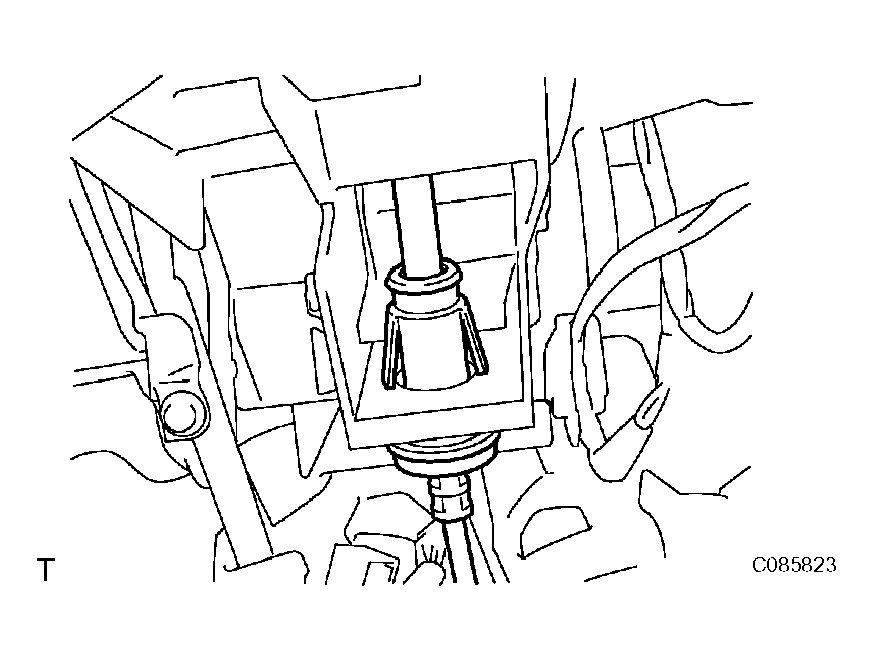

  Fig 3: Installing Control Cable To Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the control cable end to the floor shift assembly.
  HINT:

  Install it with the uneven surface facing up.

  Fig 4: Installing Uneven Surface Facing Up
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FLOOR SHIFT PARKING LOCK CABLE ASSEMBLY
1. Pass the parking lock cable through the hole of shift lever plate.
2. Insert the slide cap into the shift lever plate.

  Fig 5: Inserting Slide Cap Into Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Apply MP grease to the shift lock release link.
4. Insert the lever pin into the hole in the cable end.
CHECK KEY INTERLOCK OPERATION
HINT:

(See SHIFT LOCK SYSTEM )
CHECK SHIFT LOCK OPERATION
HINT:

(See SHIFT LOCK SYSTEM )
CHECK SHIFT LOCK RELEASE BUTTON OPERATION
HINT:

(See SHIFT LOCK SYSTEM )

Fig 6: Inserting Lever Pin Into Hole In Cable End
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
