Forward Clutch: Components

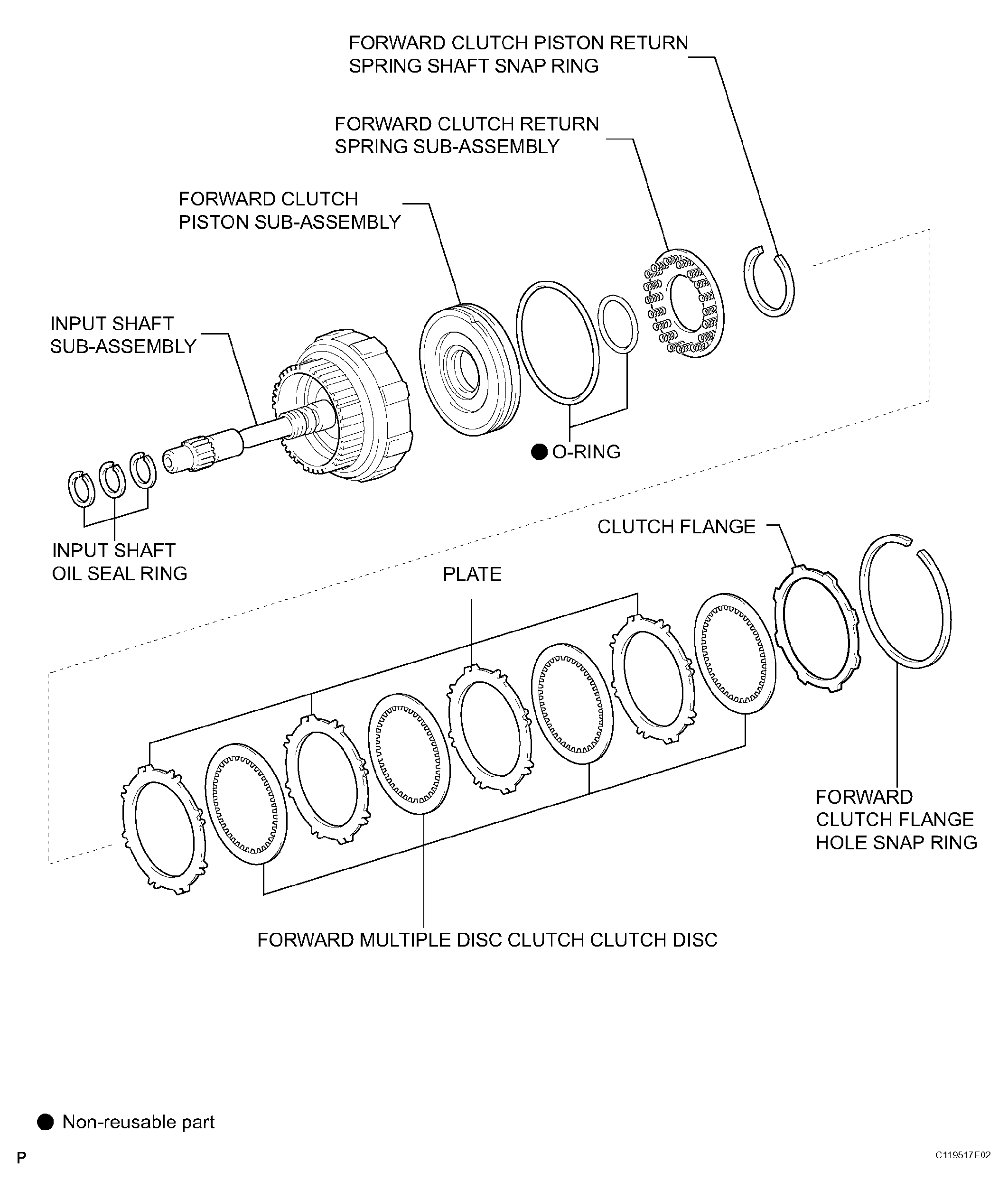

Fig 1: Exploded View Of Forward Clutch Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
