Intermediate Shaft: Reassembly

INSTALL REAR PLANETARY RING GEAR FLANGE HOLE SNAP RING

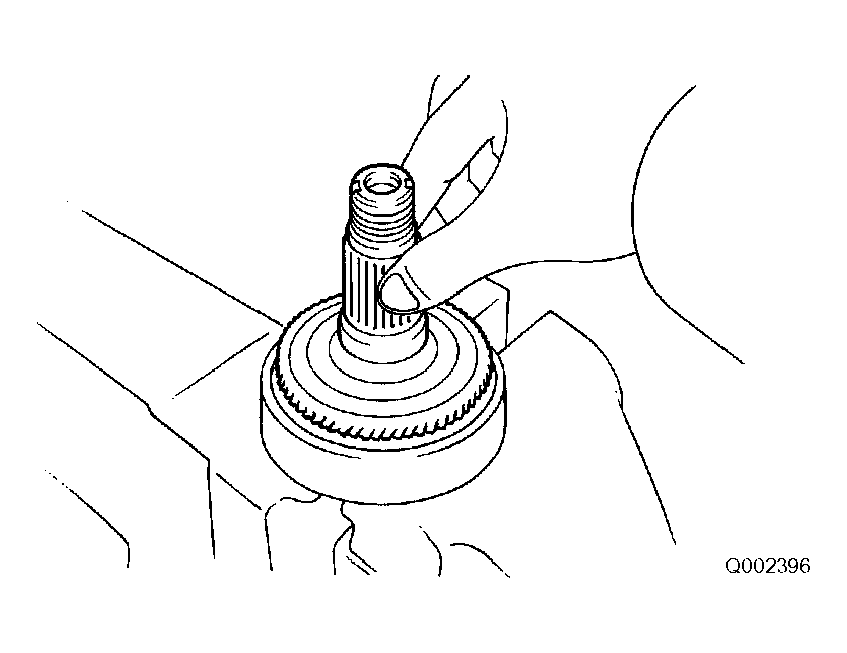

1. Install the intermediate shaft to the ring gear.

  Fig 1: Installing Intermediate Shaft To Ring Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

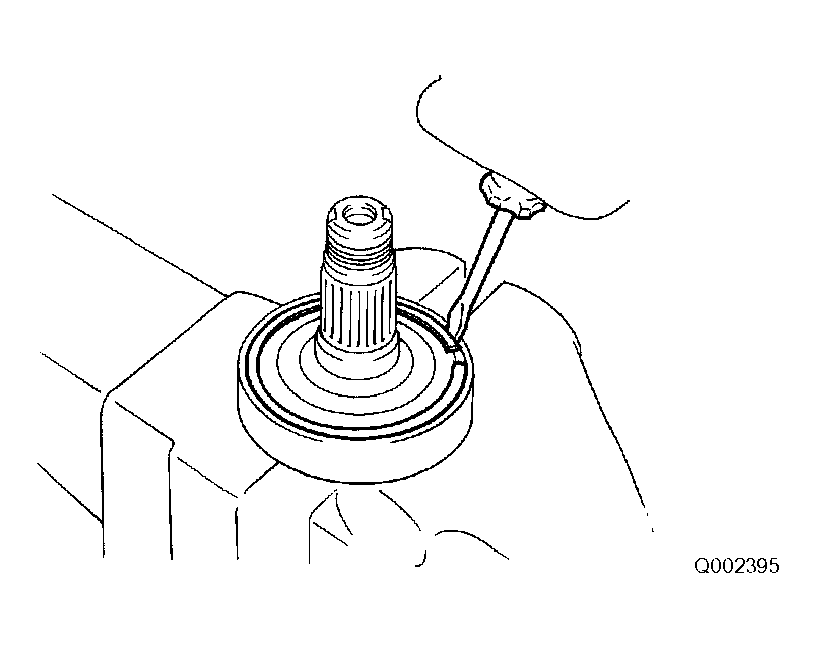

2. Using a screwdriver, install the rear planetary ring gear flange hole snap ring to the intermediate shaft sub-assembly.

  Fig 2: Installing Rear Planetary Ring Gear Flange Hole Snap Ring To Intermediate Shaft Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTERMEDIATE SHAFT OIL SEAL RING

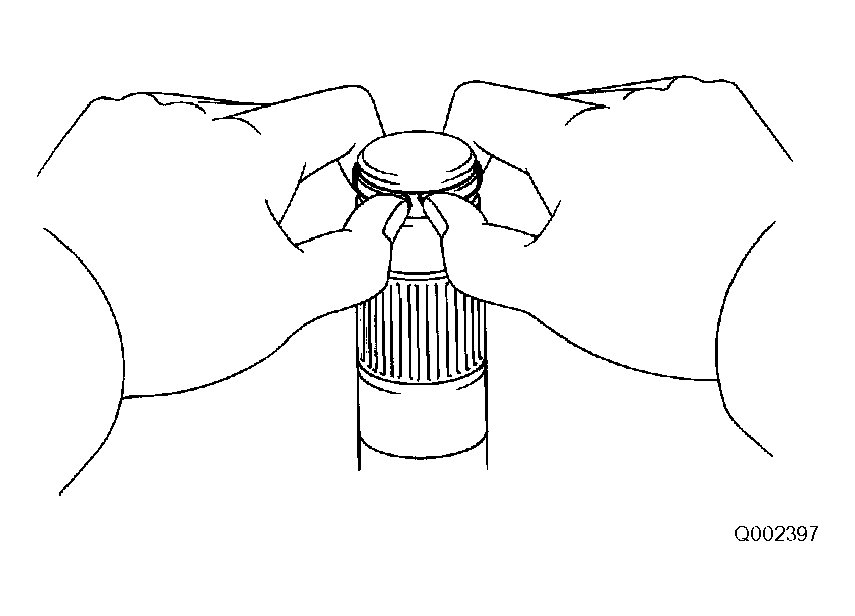

1. Install the intermediate shaft oil seal ring to the intermediate shaft sub-assembly.

  Fig 3: Installing Intermediate Shaft Oil Seal Ring To Intermediate Shaft Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
